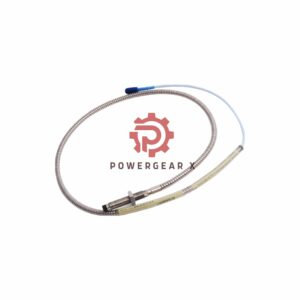

Bently Nevada 330104-00-07-10-02-05 8 mm Proximity Probe

Overview

The 3300 XL 8 mm Proximity Probe 330104-00-07-10-02-05 is a high-performance measurement device designed for precise proximity detection in industrial applications. Manufactured by Bently Nevada in the U.S.A., this probe is known for its robust design, offering advanced features to meet rigorous operational requirements. The probe is available with multiple configuration options, ensuring adaptability to diverse installation environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Product Number: 330104-00-07-10-02-05
• Thread Type: M10 x 1 thread
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.7 kg

Configuration Options:

• 00: Unthreaded Length Option – 00 mm
• 07: Overall Case Length – 70 mm
• 10: Total Length – 1.0 meter (3.3 feet)
• 02: Connector and Cable Type – Miniature coaxial ClickLoc™ connector with standard cable
• 05: CSA, ATEX, IECEx Approvals

Power Requirements

• Voltage: -17.5 Vdc to -26 Vdc (with non-incendive circuit), -23 Vdc to -26 Vdc with barriers.
• Current Consumption: 12 mA maximum.
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance: 50 Ω
• Maximum Rated Torque: 33.9 N•m (300 in•lbf)
• Recommended Torque: 11.2 N•m (100 in•lbf)

Approvals

• CSA
• ATEX
• IECEx

FAQ

Q: What is the length of the 3300 XL 8 mm Proximity Probe?
A: The standard length is 1.0 meter (3.3 feet), but it is available in custom lengths depending on the configuration.

Q: What kind of material is used for the probe tip and case?
A: The probe tip is made of Polyphenylene sulfide (PPS), and the probe case is constructed from stainless steel (AISI 303 or 304).

Q: Is the 3300 XL probe suitable for hazardous environments?
A: Yes, the probe is approved for use in hazardous areas with CSA, ATEX, and IECEx certifications.

Q: Can this probe be used for non-incendive circuits?
A: Yes, the probe operates with a non-incendive circuit, requiring a voltage of -17.5 Vdc to -26 Vdc when connected according to the installation drawing.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
