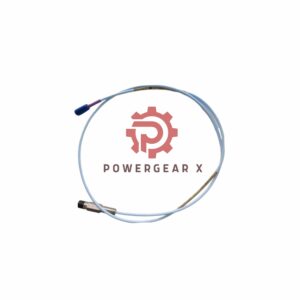

Bently Nevada 330104-00-08-10-02-00 3300 XL Proximity Probe

Overview

The Bently Nevada 330104-00-08-10-02-00 is a high-performance 3300 XL 8 mm Proximity Probe designed for accurate measurement and reliable performance in industrial machinery monitoring systems. Manufactured in the USA, this probe features advanced TipLoc™ and CableLoc™ technologies for enhanced durability and robustness. Its stainless-steel case and PPS probe tip material ensure long-term reliability in challenging environments, while an optional FluidLoc™ cable prevents liquid ingress.

Technical Specifications

General Information

• Brand: Bently Nevada
• Model: 330104-00-08-10-02-00
• Product Type: 3300 XL 8 mm Proximity Probe
• Country of Origin: Made in U.S.A. (Certificate of Origin available upon request)

Suffix Code Meaning

• Unthreaded Length Option (00): 0 mm
• Overall Case Length Option (08): 80 mm
• Total Length Option (10): 1.0 meter (3.3 feet)
• Connector and Cable-Type Option (02): Miniature coaxial ClickLoc™ connector with standard cable
• Agency Approval Option (00): Not required

Material and Design

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Sealing: Equipped with Viton® O-ring for pressure differential sealing (not pressure-tested by default)

Performance Characteristics

• Operating Temperature:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Range: -52°C to +218°C (-62°F to +425°F)
• Probe Cable and Connector Temperature: -51°C to +260°C (-60°F to +500°F)
• Relative Humidity: Less than 3% ASF change at 93% humidity under IEC standard 68 2 3 conditions

Electrical Specifications

• Power Supply: -17.5 Vdc to -26 Vdc (-23 Vdc to -26 Vdc with barriers)
• Maximum Current Consumption: 12 mA
• Output Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV output voltage change per volt input change

Frequently Asked Questions (FAQs)

• 1. What materials are used in the probe construction?
  The probe tip is made of Polyphenylene sulfide (PPS), and the case is constructed from AISI 303 or 304 stainless steel for corrosion resistance and durability.
• 2. Is this probe suitable for high-temperature environments?
  Yes, it operates effectively up to +218°C (+425°F) for the probe tip and +260°C (+500°F) for the cable and connector with the extended temperature option.
• 3. Can the probe seal differential pressures?
  Yes, the probe features a Viton® O-ring seal designed for differential pressures, although pressure testing is not conducted by default.
• 4. What is the significance of the FluidLoc™ cable option?
  The FluidLoc™ cable prevents oil or other liquids from escaping through the cable, providing an additional layer of reliability in oil-intensive environments.
• 5. Is it compatible with non-Bently Nevada systems?
  Optimal accuracy is achieved when paired with Bently Nevada’s 3300 XL 8 mm system components. Compatibility with other systems may require calibration.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
