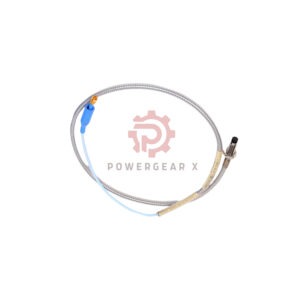

Bently Nevada 330104-00-22-10-02-CN 3300 XL Proximity Probe

Overview

The 330104-00-22-10-02-CN is a 3300 XL 8 mm Proximity Probe produced by Bently Nevada in the U.S.A. It has an M10 x 1 threaded design with armor and can seal the differential pressure between the probe tip and the case using a Viton® O – ring. This probe is used with a 3300 – series Proximitor Sensor and extension cable under specific environmental and power – supply conditions.

Technical Specification

• Brand: Bently Nevada
• Model: 330104-00-22-10-02-CN
• Product Type: 3300 XL 8 mm Proximity Probes
• Probe Details:
  • Unthreaded Length: 00 mm
  • Overall Case Length: 22 mm
  • Total Length: 1.0 meter (3.3 feet)
  • Connector and Cable – Type: Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval: Country Specific Approval
• Nominal Probe DC Resistance: For a 1.0 – meter probe, the resistance from the center conductor to the outer conductor is 7.59 ± 0.50 Ω.
• Mechanical:
  • Probe Tip Material: Polyphenylene sulfide (PPS).
  • Probe Case Material: AISI 303 or 304 stainless steel (SST).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
