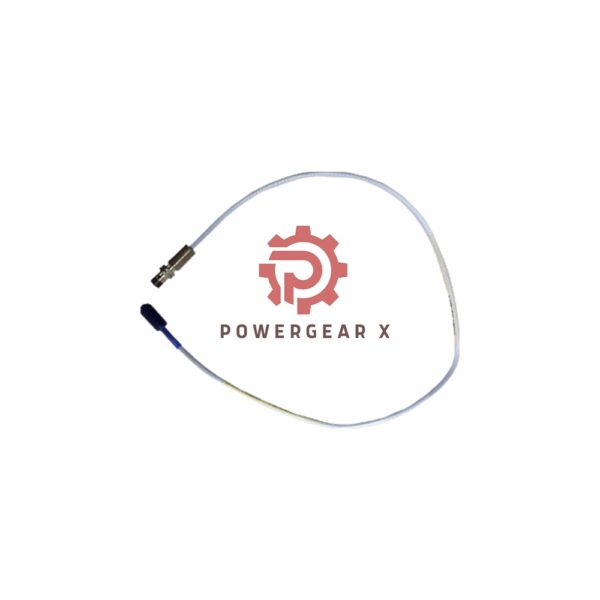

Bently Nevada 330106-05-30-10-12-CN Reverse Mount Probe

Overview

The Bently Nevada 3300 XL 8 mm Reverse Mount Probe, part number 330106-05-30-10-12-CN, is a high-performance proximity probe designed for industrial machinery monitoring. Built with advanced materials and featuring a robust design, this probe delivers reliable operation in demanding environments.

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 330106-05-30-10-12-CN
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Probe Length: 1.0 meter (3.3 feet)
• Connector: Miniature ClickLoc™ coaxial connector
• Operating Voltage: -23 Vdc to -26 Vdc with barriers; -17.5 Vdc to -26 Vdc without barriers
• Output Resistance: 50 Ω
• Sealing Material: Viton® O-ring for pressure sealing
• Agency Approvals: CN – Country Specific
• Pressure Handling: Designed to seal differential pressure; additional testing available upon request.

Model Suffix Explanation:

• 330106: 3300 XL series, Reverse Mount design.
• 05: Cable length (specified in feet).
• 30: Cable armor type.
• 10: Total length option (1.0 meter).
• 12: Connector type (Miniature ClickLoc™).
• CN: Country-specific compliance.

FAQ

1. What is the main advantage of the Bently Nevada 3300 XL 8 mm Probe?
The probe’s rugged design, featuring a thicker encapsulation of the coil and a robust stainless-steel case, ensures superior durability and precision in harsh environments.

2. How does the ClickLoc™ connector improve functionality?
The Miniature ClickLoc™ coaxial connector with FluidLoc® cable prevents fluid ingress, enhancing reliability and lifespan.

3. Can the probe handle differential pressure?
Yes, the probe is designed to seal differential pressure using a Viton® O-ring. For specific pressure testing, contact Bently Nevada’s custom design department.

4. What voltages does the probe operate on?
The probe requires -17.5 Vdc to -26 Vdc without barriers and -23 Vdc to -26 Vdc with barriers.

5. What does the CN suffix signify?
The CN suffix indicates country-specific compliance, ensuring the probe meets local regulatory standards.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
