Bently Nevada | 330106-05-30-15-12-05 Reverse Mount Probes

Overview

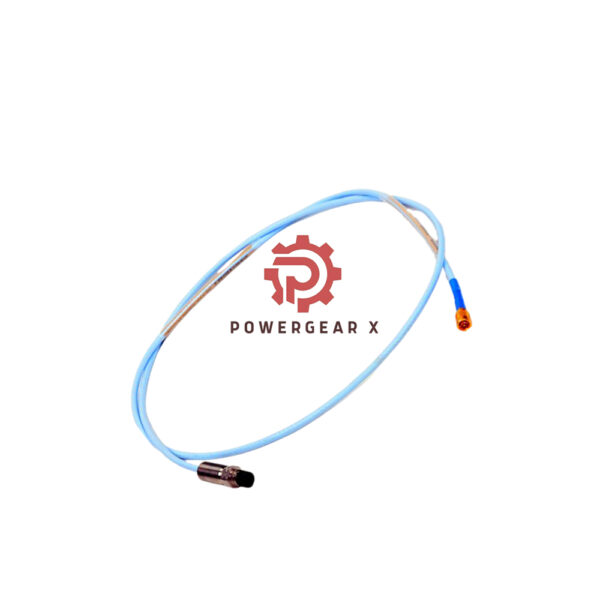

The Bently Nevada 330106-05-30-15-12-05 Reverse Mount Probe, made in the U.S.A., is a robust solution for precision vibration monitoring in industrial applications. It is part of the widely trusted 3300 XL series, known for its reliable performance in critical machinery condition monitoring. This reverse mount probe is designed for environments where space constraints or alignment challenges require specialized installation.

Technical Specifications

• Model: 330106-05-30-15-12-05
• Thread Type: M10 x 1 threads
• Connector Option:
  • Miniature ClickLoc coaxial connector
  • FluidLoc cable (optional, typically unnecessary due to the probe sleeve)
• Agency Approvals:
  • CSA
  • ATEX
  • IECEx
• Ordering Information:
  • Model: 330106-05-30-15-12-05
  • Thread: M10 x 1 threads
  • Total Length: 15 (1.5 meters / 4.9 feet)

Dimensions & Weight

• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.323 kg

Probe Resistance

• Length: 1.5 meters
• DC Resistance (RPROBE): 7.73 ± 0.50 ohms

Material Composition

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Torque Specifications

• Maximum Rated Torque: 22.6 N•m (200 in•lbf)
• Recommended Torque: 7.5 N•m (66 in•lbf)

Thread Engagement

• Thread Type: M10 x 1
• Maximum Thread Engagement Length: 15 mm

Temperature Range

• Standard Operating & Storage Temperature: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable & Connector: -51°C to +260°C (-60°F to +500°F)
  • Caution: Temperatures below –34°C (-30°F) may lead to premature seal failure.

FAQ

• Q: Do I need the FluidLoc cable for this model?
  A: The FluidLoc cable option is not necessary for most installations, as the probe sleeve usually provides sufficient protection. However, you can consult with a technical expert for specific needs.
• Q: What is the purpose of the Viton® O-ring in the probe?
  A: The Viton® O-ring ensures the probe maintains a differential pressure seal between the probe tip and the case, protecting it from environmental damage.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
