Bently Nevada | 330130-035-13-05 Armored FluidLoc Cable

Overview

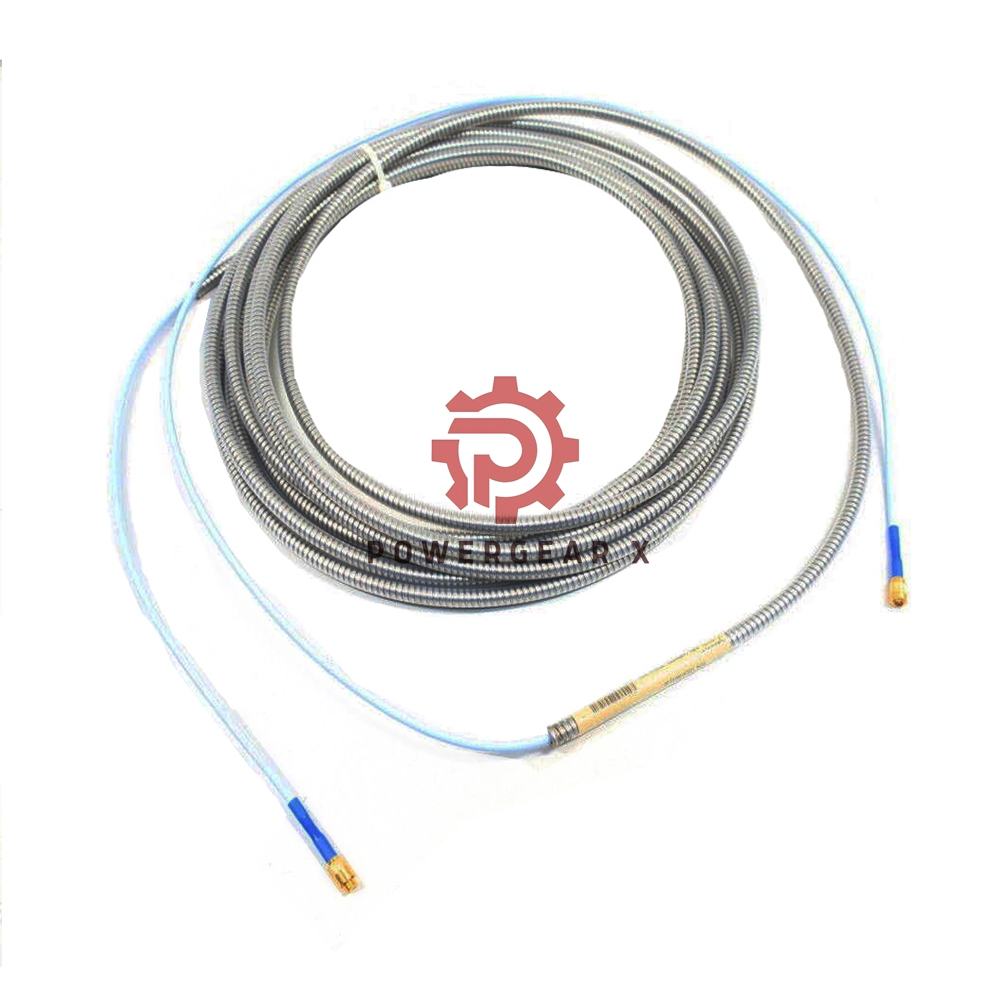

The Bently Nevada 3300 XL Standard Extension Cable (Part Number: 330130-035-13-05) is designed for reliable connectivity in industrial applications. Featuring a length of 3.5 meters (11.5 feet), the cable comes in a new and original condition, securely packed from the factory. It includes a 12-month factory warranty for added assurance. The cable is specifically optimized for use with the 3300 XL 8 mm Proximitor Sensor.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Standard Extension Cable
• Part Number: 330130-035-13-05

Key Characteristics

• Cable Length:
  • 035: 3.5 meters (11.5 feet)
• Connector Protector and Cable Option:
  • 13: Armored FluidLoc cable with connector protector
• Agency Approval Option:
  • 05: CSA, ATEX, IECEx approvals

Electrical Specifications

• DC Resistance:
  • RCORE (Center Conductor to Center Conductor):
    • Length: 3.5 m
    • Resistance: 0.77 ± 0.12 Ω
  • RJACKET (Outer Conductor to Outer Conductor):
    • Length: 3.5 m
    • Resistance: 0.23 ± 0.05 Ω
• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc for non-incendive installations
  • 12 mA maximum consumption
  • Operates at -23 Vdc to -26 Vdc with barriers
• Output Resistance: 50 Ω
• Output Sensitivity:
  • Less than 2 mV change in output voltage per volt change in input voltage
• Extension Cable Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical

Physical Specifications

• Recommended Field Wiring:
  • Conductor size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum length of 305 meters (1,000 feet) between sensor and monitor

Additional Features

• CableLoc Design: Ensures 330 N (75 lbf) pull strength for secure cable attachment.
• FluidLoc Option: Prevents fluid leaks through the cable’s interior, ideal for machinery exposed to fluids.
• Temperature Range: Performance specs valid between +18˚C and +27˚C (+64˚F to +80˚F) up to a maximum altitude of 2000 meters.

Frequently Asked Questions (FAQs)

1. What are the advantages of using the FluidLoc cable?
   • The FluidLoc cable effectively prevents oil and liquid leaks, making it ideal for demanding environments.
2. Can silicone tape be used for connector protection?
   • While silicone tape is included, it is not recommended in applications exposed to turbine oil.
3. What is the maximum operational distance for field wiring?
   • The recommended maximum distance for connecting the sensor and monitor is 305 meters (1,000 feet).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
