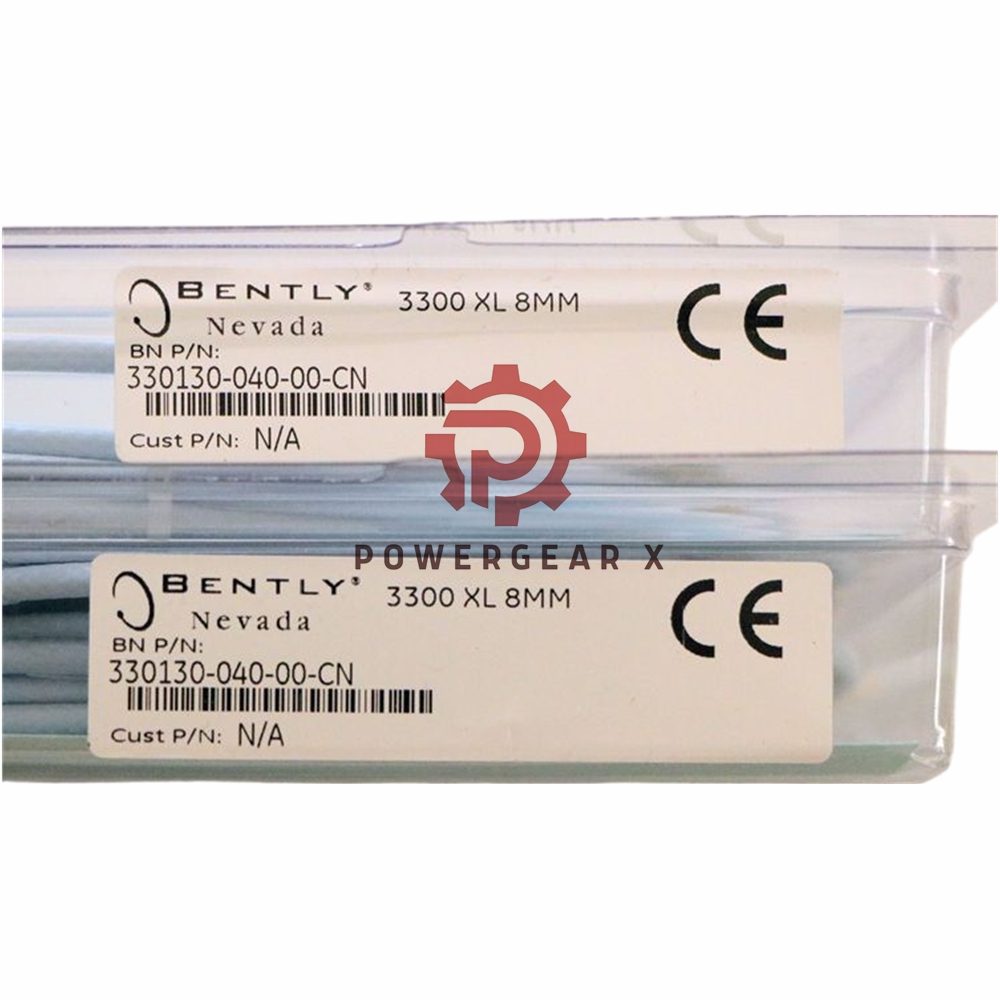

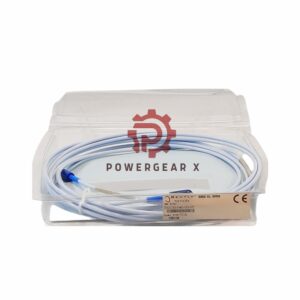

Bently Nevada 330130-040-00-CN | 3300 XL Extension Cable

Overview

The Bently Nevada 330130-040-00-CN Extension Cable is designed for use with 3300 XL Proximity Probes, offering improved performance and reliability in industrial environments. Manufactured in the U.S.A., this cable is available with a Certificate of Origin (COO). It features a 4.0-meter (13.1 feet) length and is specifically engineered for applications that require a robust connection between the probe and the monitoring system.

This 3300 XL extension cable has fluoroethylene propylene (FEP) insulation and a 75 Ω triaxial construction, ensuring high durability and performance in harsh conditions. The patented CableLoc design enhances the security of the probe cable attachment, providing a 330 N (75 lbf) pull strength. An optional FluidLoc version is available, which prevents the leakage of oils or other fluids through the cable, adding further protection in challenging applications.

Technical Specifications:

• Manufacturer: Bently Nevada
• Product Number: 330130-040-00-CN
• Cable Length Option: 4.0 meters (13.1 feet)
• Connector & Cable Option: Standard cable
• Agency Approval Option: CN (Country-Specific Approvals)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.45 kg
• Extension Cable Types: Available in 0.5, 1, 1.5, 2, 5, or 9-meter lengths
• Voltage Requirements: -17.5 Vdc to -26 Vdc (non-incendive circuit)
• Power Consumption: 12 mA maximum
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); 3-conductor shielded triad cable recommended
• Linear Range: 0.25 to 2.3 mm (10 to 90 mils)
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω

FAQ:

1. What is the maximum cable length for the 3300 XL Extension Cable?
2. The maximum allowable cable length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitoring system.
3. What temperature range can the 3300 XL Extension Cable withstand?
4. The extension cable can operate within a temperature range of -51°C to +177°C (-60°F to +351°F), making it suitable for extreme conditions.
5. Is the 3300 XL Extension Cable resistant to fluids?
6. Yes, there is an option for FluidLoc cables that prevent oil and other liquids from leaking out of the machine through the cable.
7. What is the power supply requirement for the 3300 XL probe system?
8. The system requires a power supply of -17.5 Vdc to -26 Vdc, with a maximum consumption of 12 mA.
9. What is the recommended field wiring for the 3300 XL Extension Cable?
10. It is recommended to use 3-conductor shielded triad cable with field wiring ranging from 0.2 to 1.5 mm² (16 to 24 AWG).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
