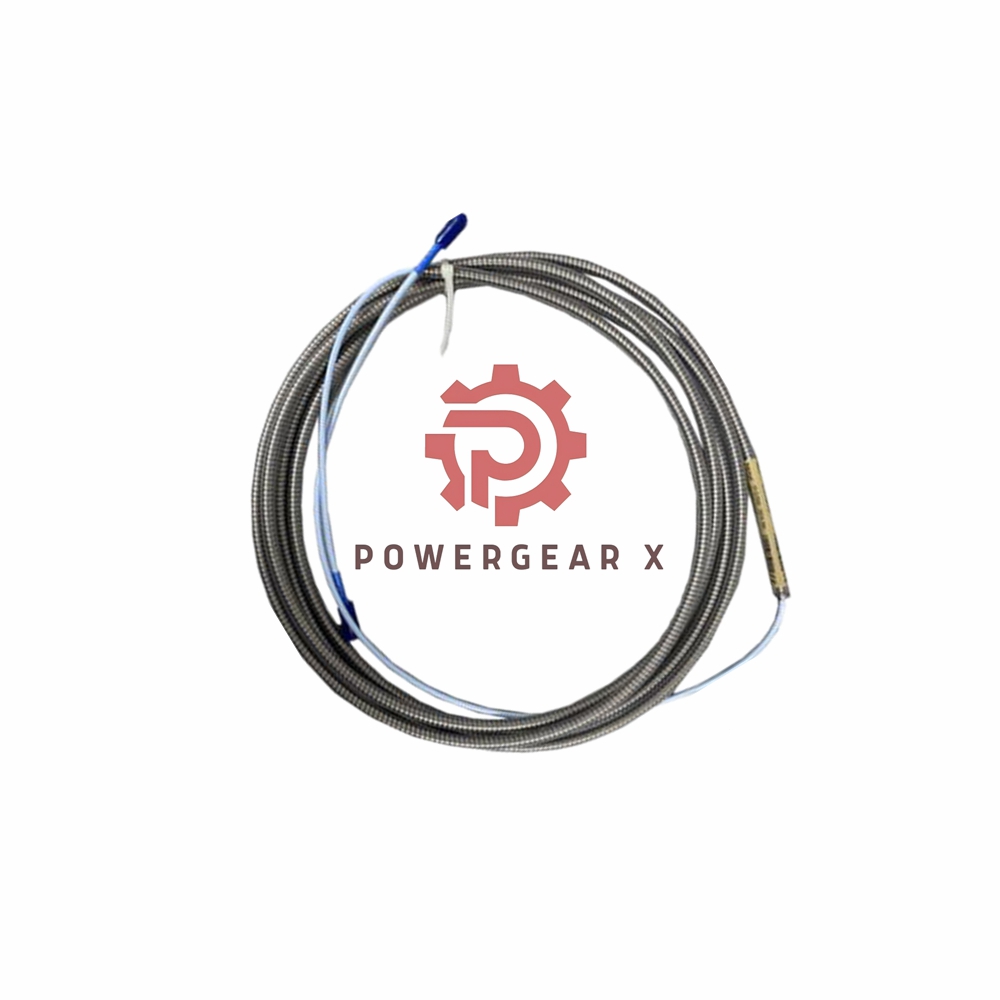

Bently Nevada | 330130-040-01-05 3300 XL Extension Cable

Overview

The Bently Nevada 330130-040-01-05 is a high-performance 3300 XL Extension Cable, designed for industrial monitoring systems. Manufactured in the U.S.A., this product is engineered to ensure durability and precision, making it an essential component for reliable machinery protection. The cable features CSA, ATEX, and IECEx agency approvals, guaranteeing compliance with global safety standards.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-040-01-05
  • 040: Indicates a cable length of 4.0 meters (13.1 feet)
  • 01: Denotes an armored cable option for added protection
  • 05: Specifies CSA, ATEX, and IECEx approvals
• Weight: 0.034 kg

Electrical Specifications

• Operating Voltage: Requires -17.5 Vdc to -26 Vdc
• Supply Sensitivity: Less than 2 mV change per volt fluctuation in input voltage
• Output Resistance: 50 Ω

Extension Cable Characteristics

• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Field Wiring: Suitable for 0.2 to 1.5 mm² (16 to 24 AWG) triad cable with a shielded, tinned design. Maximum wiring length is 305 meters (1,000 feet).

Performance Range

• Linear Range: 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target.
• Compatibility: Works seamlessly with 3300 XL Proximitor Sensors and 8 mm probes.

Frequently Asked Questions (FAQ)

1. What does the “01” in the product number signify?
It specifies that the cable is armored, providing enhanced durability in demanding conditions.

2. Can this cable be used in hazardous environments?
Yes, it is approved for hazardous locations, meeting CSA, ATEX, and IECEx standards.

3. What is the purpose of the FluidLoc option?
The optional FluidLoc prevents oil and fluids from leaking through the cable, ensuring system reliability.

4. Is it compatible with other Bently Nevada systems?
Yes, this extension cable is compatible with 3300 XL 8 mm probes and Proximitor Sensors, forming a complete transducer system.

5. What is the maximum operating distance for field wiring?
The cable supports a maximum wiring length of 305 meters (1,000 feet) while maintaining signal integrity.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
