Bently Nevada | 330130-040-01-CN 3300 XL Extension Cable

Overview

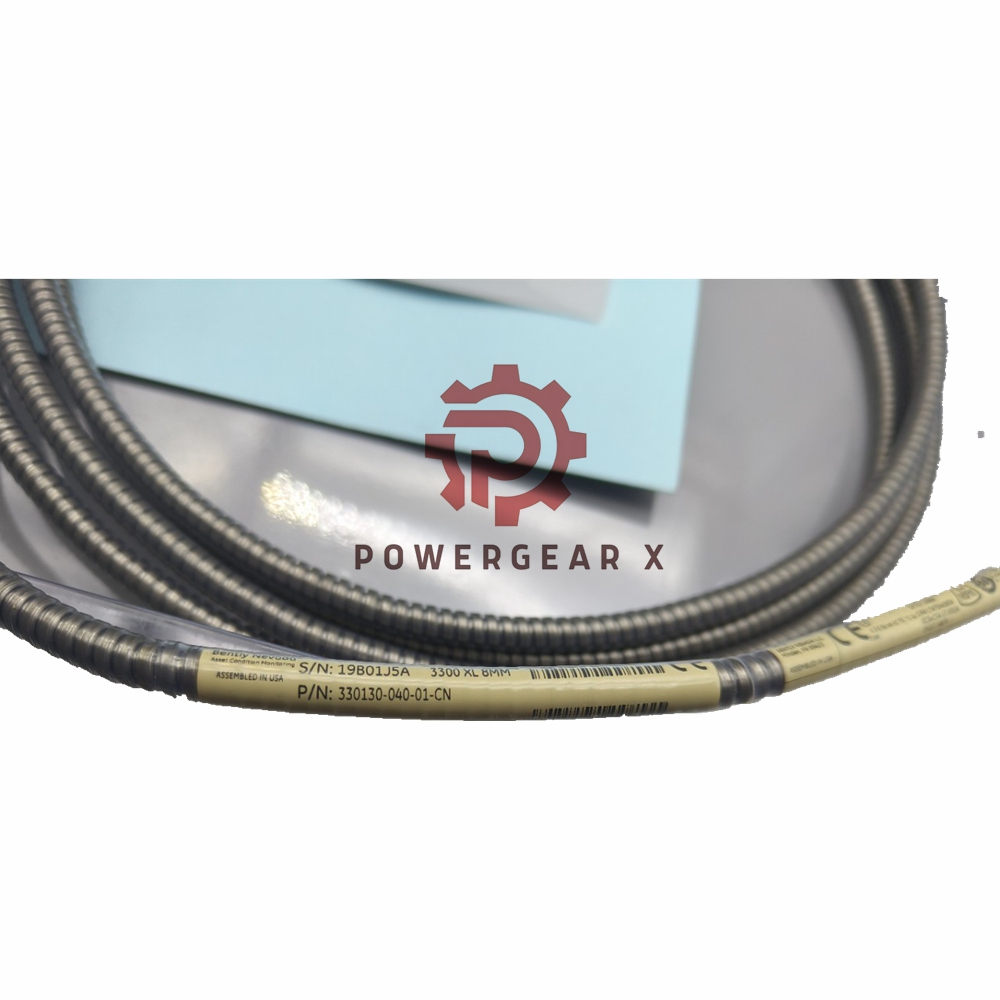

The Bently Nevada 3300 XL Extension Cable (Product No. 330130-040-01-CN) is a high-performance, armored cable designed to connect with the 3300 XL 8 mm probes. Manufactured in the U.S.A., it offers superior durability and is available with various customization options. The cable is equipped with a robust 75Ω triaxial design and fluoroethylene propylene (FEP) insulation, ideal for extreme conditions.

Key Features

• Brand: Bently Nevada
• Model: 330130-040-01-CN
• Product Type: 3300 XL Extension Cable
• Weight: 0.45 kg
• Made in: U.S.A.
• Certificate of Origin (COO): Available

Technical Specifications

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Linear Range: 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils)
• Power Requirements: -17.5 Vdc to -26 Vdc (12 mA max)
• Output Resistance: 50 Ω
• Cable Material: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Maximum Field Wiring Length: 305 meters (1,000 feet)
• Field Wiring Size: 0.2 to 1.5 mm² (16 to 24 AWG)

Brand & Model Information

• Brand: Bently Nevada
• Model Number: 330130-040-01-CN
• Suffix Breakdown:
  • “040” indicates a 4-meter cable length (13.1 feet)
  • “01” denotes armored cable construction
  • “CN” represents country-specific approval

FAQs

1. What is the maximum operating temperature for the 3300 XL extension cable?
   The cable operates effectively within a temperature range of -51°C to +177°C (-60°F to +351°F).
2. Can I use the 3300 XL extension cable with probes of other brands?
   This cable is designed to work specifically with Bently Nevada 3300 XL 8 mm probes, ensuring optimal performance and accuracy.
3. How long is the extension cable?
   This model comes in a standard length of 4.0 meters (13.1 feet), but other lengths are available.
4. What is the maximum recommended field wiring length?
   The maximum wiring length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet).
5. Is there a version of this cable that prevents fluid leakage?
   Yes, there is an optional FluidLoc cable configuration available that prevents oil and other fluids from leaking through the cable.
6. What is the capacitance of the extension cable?
   The typical capacitance of the extension cable is 69.9 pF/m (21.3 pF/ft).
7. Can this cable be used in non-incendive circuits?
   Yes, the cable is suitable for non-incendive circuits when installed according to the installation drawing 140979, with a -17.5 Vdc to -26 Vdc power supply.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
