Bently Nevada 330130-040-02-00 | 3300 XL Extension Cable

Overview

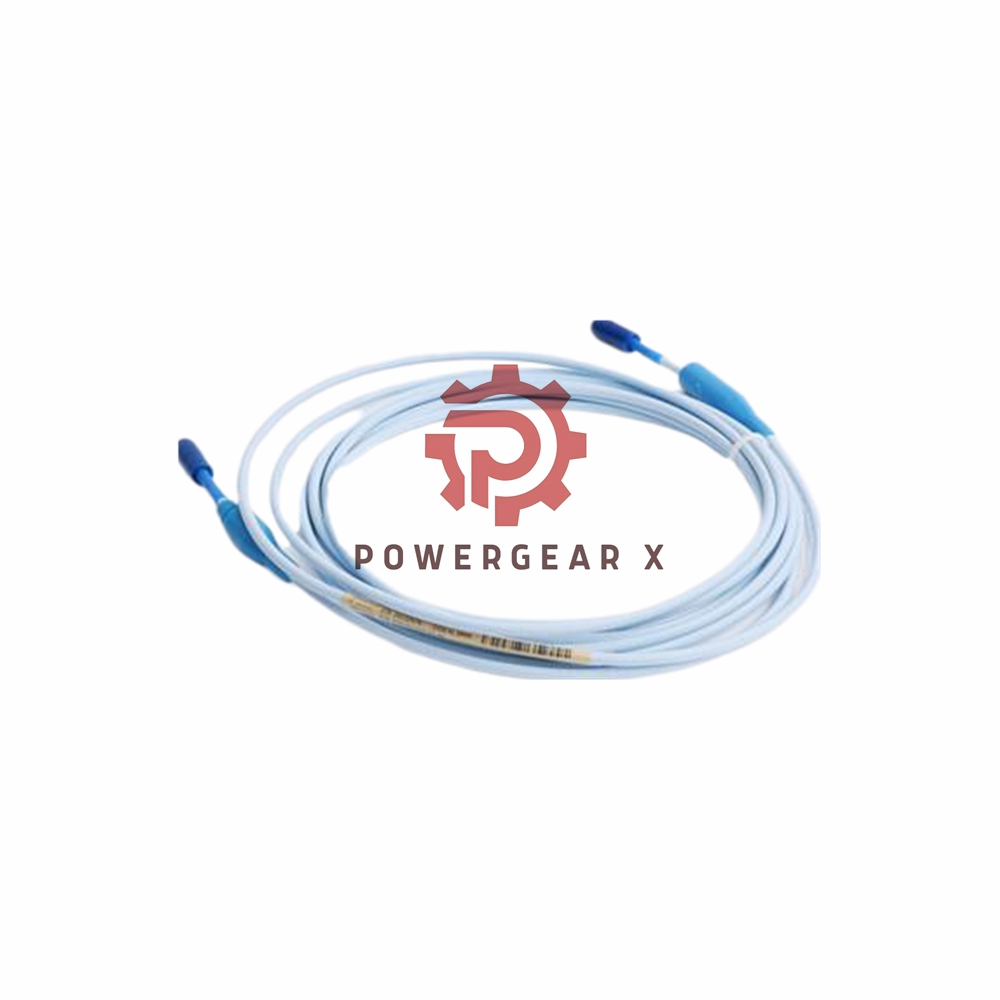

The Bently Nevada 3300 XL Extension Cable (Product No. 330130-040-02-00) is a high-performance cable designed for use with the 3300 XL 8 mm Proximity Probe. Manufactured in the U.S.A., this extension cable provides reliable, long-term performance for machinery vibration monitoring applications. It incorporates advanced features such as the TipLoc molding method and CableLoc design to enhance the durability and strength of the connection between the probe tip and cable. The cable is also available with an optional FluidLoc feature, ensuring fluid containment in demanding environments. Additionally, the extension cable offers multiple lengths to meet installation requirements.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable
• Part Number: 330130-040-02-00
• Cable Length: 4.0 meters (13.1 feet)
• Connector Protection: Standard cable with connector protectors
• Extension Cable Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating and Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.45 kg
• Power Requirements:
  • -17.5 Vdc to -26 Vdc (nonincendive circuit)
  • Maximum consumption: 12 mA
  • Requires -23 Vdc to -26 Vdc with barriers
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended: 3-conductor shielded triad cable with tinned field wiring
  • Maximum Field Wiring Length: 305 meters (1,000 feet)
• Output Resistance: 50 Ω
• Linear Range: 2 mm (80 mils), from 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Agency Approval: Not required (00)

FAQ

1. What is the maximum operating temperature of the 3300 XL extension cable?
   The cable can operate in temperatures ranging from -51°C to +177°C (-60°F to +351°F).
2. What is the maximum length for field wiring?
   The maximum field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
3. What is the standard length of the extension cable?
   The standard length for the extension cable is 4.0 meters (13.1 feet), with additional length options available.
4. Is the FluidLoc cable option available for this extension cable?
   Yes, an optional FluidLoc feature is available, designed to prevent oil and liquids from leaking through the cable.
5. What type of wiring is recommended for the field installation?
   It is recommended to use 3-conductor shielded triad cable and tinned field wiring for optimal performance.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
