Bently Nevada | 330130-040-02-CN 3300 XL Extension Cable

Overview

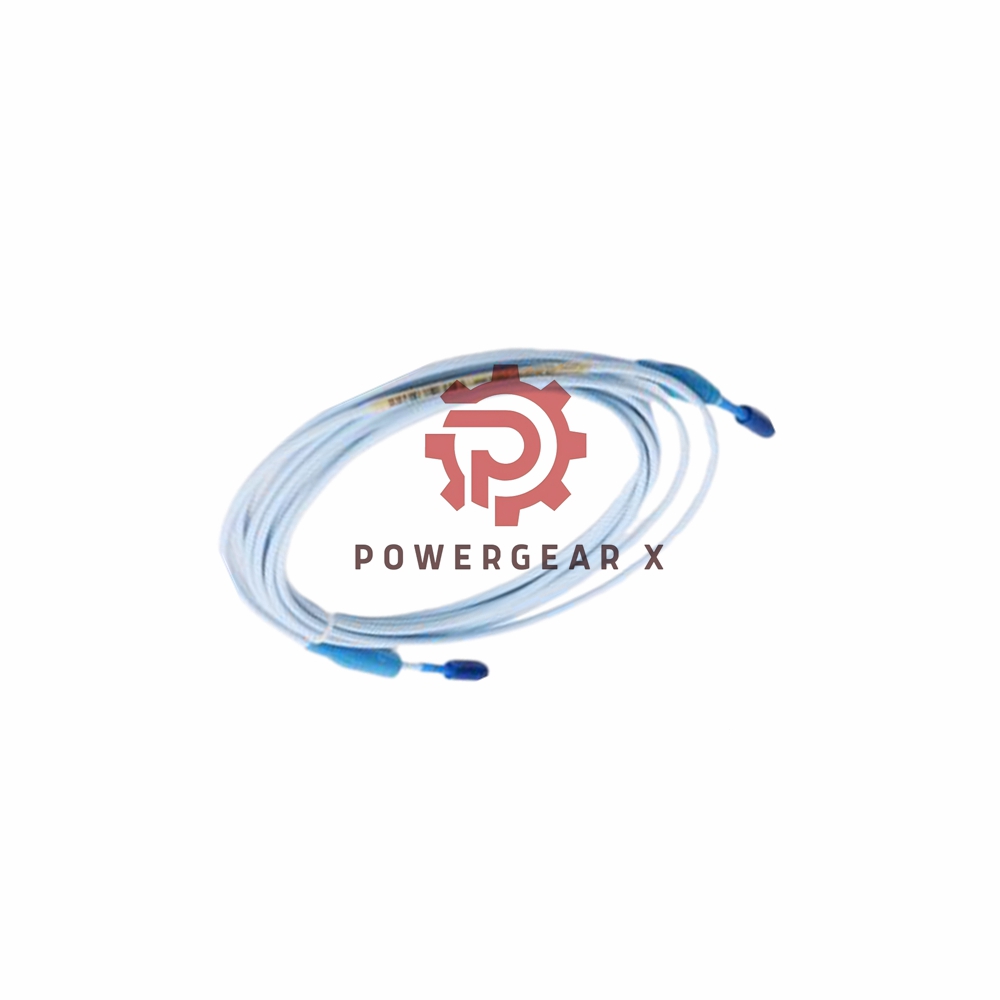

The Bently Nevada 330130-040-02-CN is an extension cable designed to enhance the performance of the 3300 XL 8 mm Proximity Sensor. This cable is engineered for use in high-performance industrial environments, where durability and reliability are crucial. Manufactured in the U.S.A., this extension cable provides an effective solution for extending sensor reach with advanced features like robust protection and high pull strength.

Key Features:

• Cable Length: 4.0 meters (13.1 feet)
• Cable Type: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Connector Protection: Includes connector protectors for added durability
• Approval: Country-specific approvals (CN)
• Weight: 0.45 kg (0.99 lbs)
• Temperature Range: Operating and storage temperatures range from -51°C to +177°C (-60°F to +351°F)

Technical Specifications:

• Brand: Bently Nevada
• Model: 330130-040-02-CN
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Power Supply: Requires -17.5 Vdc to -26 Vdc for proper operation, with maximum current consumption of 12 mA.
• Output Resistance: 50Ω
• Linear Range: 2 mm (80 mils) with linear range starting from 0.25 mm (10 mils) to 2.3 mm (90 mils).
• Field Wiring: Supports wiring with 0.2 to 1.5 mm² (16 to 24 AWG) conductors. Use of 3-conductor shielded triad cable and tinned field wiring is recommended.

Enhanced Design:

This extension cable comes with advanced engineering improvements. The TipLoc molding method ensures a stronger bond between the probe tip and probe body, while the CableLoc design provides 330 N (75 lbf) pull strength for a secure connection. Additionally, the FluidLoc cable option prevents oil and other liquids from leaking, providing better protection for your system.

FAQs:

Q1: What is the maximum length of the 3300 XL extension cable?
A1: The maximum recommended length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet).

Q2: What is the operating temperature range for this extension cable?
A2: The extension cable operates within a temperature range of -51°C to +177°C (-60°F to +351°F).

Q3: How does the cable prevent liquids from leaking?
A3: The optional FluidLoc design prevents oil and other liquids from leaking out of the machine through the cable’s interior.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
