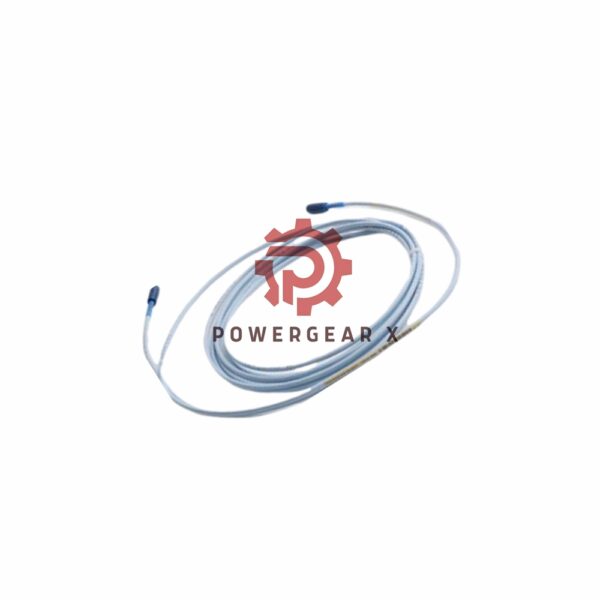

Bently Nevada | 330130-040-03-CN 3300 XL Extension Cable

Overview

The Bently Nevada 330130-040-03-CN extension cable is designed for use with the 3300 XL series proximitor sensors, providing superior flexibility and reliability for industrial monitoring applications. Manufactured in the U.S.A, this high-performance extension cable features armored cable construction and connector protectors, ensuring durability in harsh environments. Additionally, the Certificate of Origin (COO) is available upon request for all international shipping needs.

Technical Specifications

• Product Type: Extension Cable
• Part Number: 330130-040-03-CN
• Brand: Bently Nevada
• Cable Length: 4.0 meters (13.1 feet)
• Cable Construction: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Material: Fluoroethylene propylene (FEP) insulated with a 75Ω triaxial probe cable
• Weight: 0.45 kg (approx.)
• Temperature Range: Operating and storage from -51 °C to +177 °C (-60 °F to +351 °F)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Connector Protector: Armored cable with connector protectors
• Agency Approval: Country-specific approvals (CN)
• Electrical Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc for non-incendive circuits
  • Current Consumption: 12 mA maximum
  • Supply Sensitivity: Less than 2 mV change per volt input
• Field Wiring: Accepts 0.2 to 1.5 mm² (16 to 24 AWG) wiring; recommends 3-conductor shielded triad cable
• Linear Range: From 0.25 mm (10 mils) to 2.3 mm (90 mils)
• FluidLoc Option: Available to prevent oil leakage via the cable interior

FAQ

• Q: What is the recommended cable length for the Bently Nevada 330130-040-03-CN extension cable?
  A: The standard length of the extension cable is 4.0 meters (13.1 feet). Custom lengths are also available upon request.
• Q: What is the maximum temperature range for this extension cable?
  A: The cable is rated for use in environments with temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).
• Q: What is the capacitance of the extension cable?
  A: The cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft).
• Q: Is there a fluid protection option for this extension cable?
  A: Yes, the FluidLoc option is available for preventing liquid leakage through the cable’s interior.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
