Bently Nevada 330130-040-10-05 | FluidLoc Cable 4 Meters

Overview

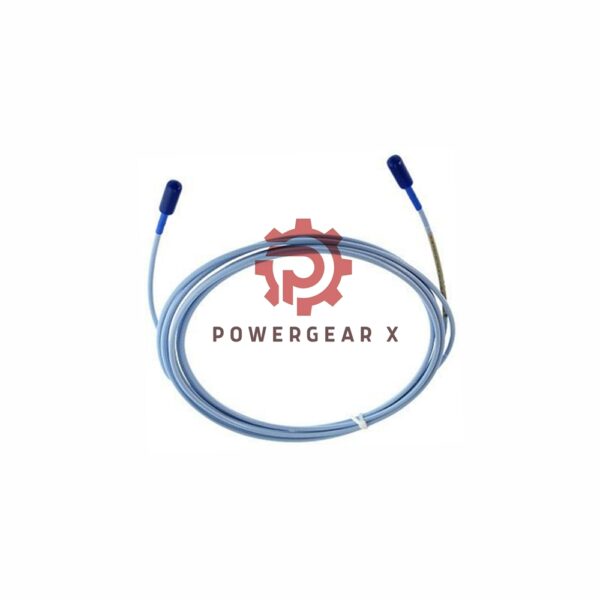

The Bently Nevada 330130-040-10-05 3300 XL Standard Extension Cable is a high-performance component designed to seamlessly connect probes and sensors within vibration monitoring systems. This cable features robust FluidLoc technology that effectively prevents oil and liquid ingress, ensuring enhanced durability. Moreover, the patented CableLoc design delivers a pull strength of 330 N (75 lbf), offering a secure and reliable connection.

Key Features and Technical Specifications

General Information

• Brand: Bently Nevada
• Model: 330130 (3300 XL Standard Extension Cable)
• Part Number: 330130-040-10-05
• Condition: New & Original, Factory Sealed
• Warranty: 12 months

Cable Length Options

• 040: 4.0 meters (11.5 feet)

Connector Protector and Cable Options

• 10: FluidLoc cable for enhanced oil protection

Agency Approval Options

• 05: Certified by CSA, ATEX, and IECEx

Nominal DC Resistance

• Center Conductor to Center Conductor: 0.88 ± 0.13 Ω
• Outer Conductor to Outer Conductor: 0.26 ± 0.05 Ω

Extension Cable Capacitance

• 69.9 pF/m (21.3 pF/ft) typical

Power and Output Specifications

• Voltage Requirement: -17.5 Vdc to -26 Vdc
• Output Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV change per volt input variation

Field Wiring Compatibility

• Supports 3-conductor shielded triad cables
• Wiring sizes: 0.2 to 1.5 mm² (16 to 24 AWG)
• Maximum field wiring length: 305 meters (1,000 feet)

Linear Range

• Effective range: 2 mm (80 mils), beginning at 0.25 mm (10 mils)
• Linear output voltage: From approximately -1 Vdc to -17 Vdc

Additional Enhancements

• Patented TipLoc molding technology for superior probe tip durability
• Optimized for use with AISI 4140 steel targets

Frequently Asked Questions (FAQs)

1. What is the purpose of the FluidLoc option?
   • The FluidLoc option prevents turbine oil and other fluids from migrating through the cable interior, enhancing its performance in challenging environments.
2. Is silicone tape included with the cable?
   • Yes, each cable comes with silicone tape as an alternative to connector protectors. However, it is not recommended for use in turbine oil-exposed environments.
3. What is the maximum recommended wiring length?
   • The maximum recommended field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
4. What certifications does this product carry?
   • The product is certified by CSA, ATEX, and IECEx for reliable use in industrial applications.
5. How does the CableLoc design improve durability?
   • The CableLoc design ensures a pull strength of 330 N (75 lbf), securely attaching the probe cable to prevent disconnections under stress.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
