Bently Nevada | 330130-040-13-00 3300 XL Extension Cable

Overview

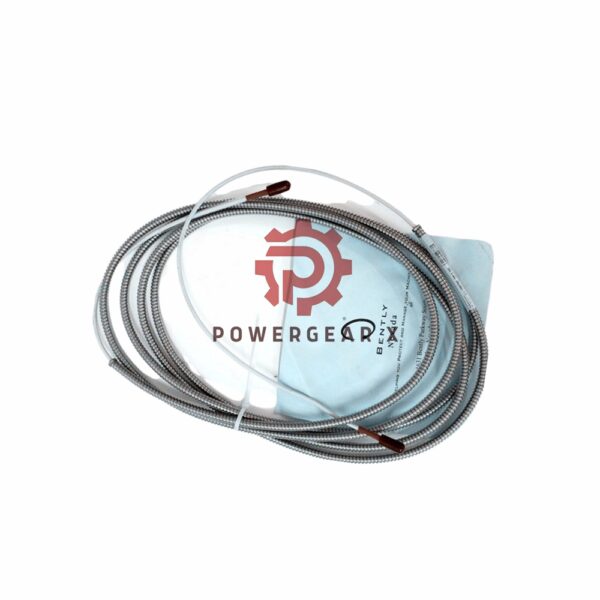

The Bently Nevada 330130-040-13-00 extension cable is designed to enhance the performance of the 3300 XL proximity sensors and probes. This extension cable features 75 Ω triaxial, fluoroethylene propylene (FEP) insulation, providing excellent resistance against harsh conditions such as extreme temperatures and fluid exposure. The 4.0-meter (13.1 feet) cable length, along with the Armored FluidLoc cable option, ensures durability and secure connections. The optional Connector Protector is designed to prevent wear and tear on the cable connectors, offering additional protection against harsh operating conditions.

Technical Specifications:

Bently Nevada 330130-040-13-00

• Cable Material: FEP-insulated, 75 Ω triaxial
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), typical
• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.45 kg
• Linear Range: 0.25 mm to 2.3 mm (10 mils to 90 mils), with a maximum gap of 2 mm (80 mils)
• Connector Protector and Cable Option: Armored FluidLoc cable with connector protector
• Power Supply: -17.5 Vdc to -26 Vdc, max current consumption of 12 mA
• Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV per volt change in input voltage
• Cable Length: 4.0 meters (13.1 feet)
• Connector Protector Option: Yes, for added durability

Performance Characteristics:

• The extension cable works effectively within the range of +18˚C to +27˚C (+64˚F to +80˚F) at altitudes up to 2000 meters.
• Designed for AISI 4140 steel targets for optimal system accuracy.
• Systems using this extension cable are interchangeable as long as they are calibrated to the same target.

Field Wiring:

• Use 3-conductor shielded triad cable (0.2 to 1.5 mm² or 16 to 24 AWG).
• Maximum Cable Length: 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitoring system.

Frequently Asked Questions (FAQ):

1. What is the length of the 330130-040-13-00 extension cable?
   • The cable is 4.0 meters (13.1 feet) long, making it suitable for various installations in large machinery setups.
2. What is the temperature range of the Bently Nevada 330130-040-13-00 extension cable?
   • This extension cable operates within a wide temperature range of -51 °C to +177 °C (-60 °F to +351 °F), making it suitable for harsh industrial environments.
3. What is the maximum allowable length for field wiring?
   • The recommended maximum field wiring length is 305 meters (1,000 feet) for optimal signal performance.
4. Is the cable resistant to fluids?
   • Yes, the FluidLoc cable option prevents fluids such as oil from leaking, providing a secure and long-lasting connection even in harsh conditions.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
