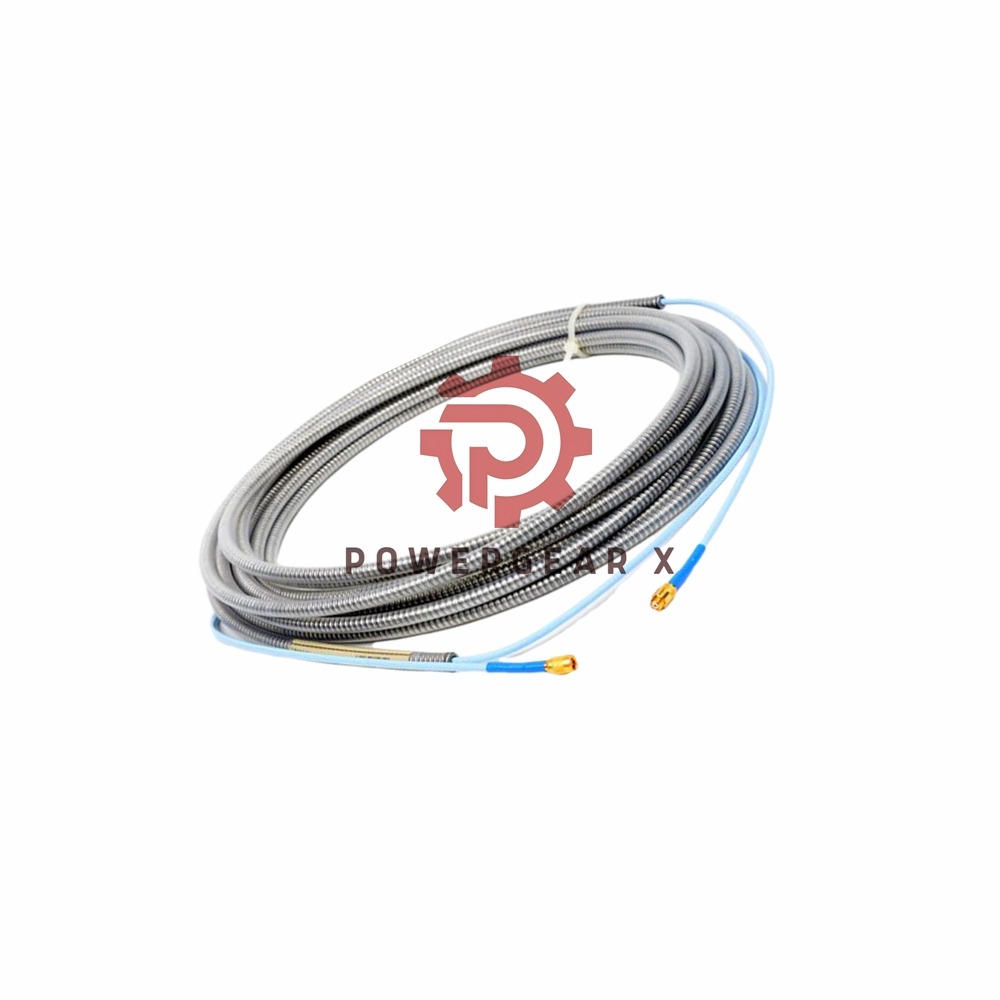

Bently Nevada 330130-040-13-05 | Armored FluidLoc Cable

Overview:

The Bently Nevada 3300 XL Extension Cable (Product No.: 330130-040-13-05) is an advanced accessory for high-performance vibration monitoring systems. Engineered for reliability, this cable is built to meet stringent industrial standards and is optimized for use in challenging environments. The 3300 XL series ensures seamless connectivity between proximity probes and Proximitor Sensors.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330130-040-13-05
• Cable Length Option (040): 4.0 meters (13.1 feet)
• Connector Protector and Cable Option (13): Armored FluidLoc cable with connector protector
• Agency Approvals (05): CSA, ATEX, IECEx certifications
• Material:
  • 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
  • Designed to resist extreme temperatures and harsh conditions
• Operating & Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.412 kg

Electrical Properties:

• Extension Cable DC Resistance:
  • RCORE (Center Conductor): 0.88 ± 0.13 Ω (4.0 m length)
  • RJACKET (Outer Conductor): 0.26 ± 0.05 Ω (4.0 m length)
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Power Supply Requirements:
  • -17.5 Vdc to -26 Vdc with a nonincendive circuit
  • 12 mA maximum consumption
  • Supply sensitivity: <2 mV change in output voltage per volt change in input voltage

Mechanical Features:

• Pull Strength: 330 N (75 lbf) with patented CableLoc design
• Linear Range:
  • From 0.25 mm to 2.3 mm (10 to 90 mils)
  • Operates within approximately -1 to -17 Vdc
• Field Wiring: Supports 3-conductor shielded triad cables (16 to 24 AWG) with a maximum length of 305 meters (1,000 feet)

Applications:

• Turbine monitoring systems
• Industrial machinery vibration diagnostics
• Oil and gas industry equipment
• Critical rotating machinery applications

Frequently Asked Questions (FAQ):

1. What is the purpose of the FluidLoc cable option?
   • The FluidLoc feature prevents oil and liquid leaks through the cable, enhancing system reliability in harsh environments.
2. Can this extension cable be used with other Bently Nevada probes?
   • Yes, the 3300 XL extension cable is compatible with 3300 XL 8 mm probes and Proximitor Sensors.
3. What is included with the cable?
   • Each cable comes with silicone tape as an alternative to connector protectors. However, silicone tape is not recommended for turbine oil applications.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
