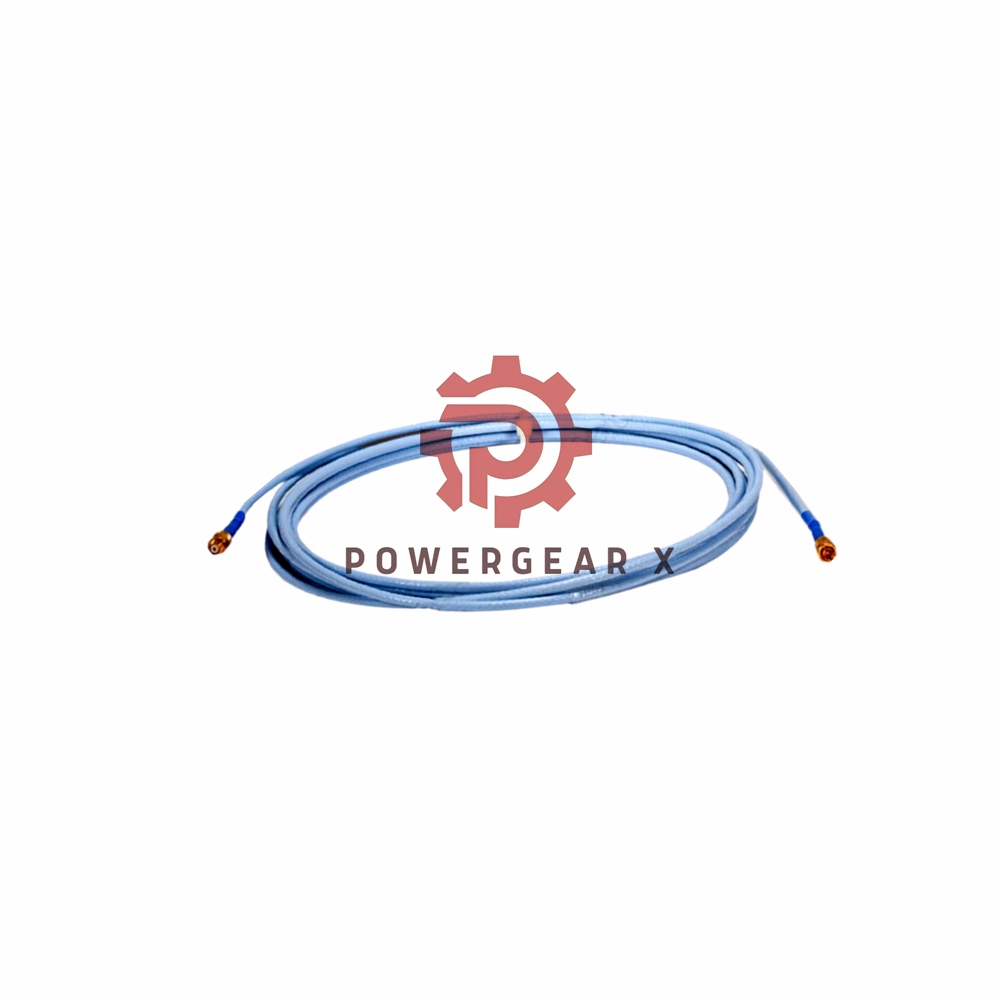

Bently Nevada 330130-045-03-00 | Armored Extension Cable

Overview

The Bently Nevada 330130-045-03-00 Extension Cable is a high-performance cable designed to meet the rigorous demands of industrial monitoring applications. Built with advanced technology, it integrates seamlessly with 3300 XL 8 mm Proximitor Sensors and probes to deliver exceptional accuracy and durability. Its robust armored construction and connector protectors ensure reliable performance, even in harsh environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-045-03-00
  • 045: Cable length of 4.5 meters (14.8 feet).
  • 03: Armored cable with connector protectors for added durability.
  • 00: Indicates Approvals Not required
• Cable Features:
  • Armored Construction: Ensures enhanced protection against mechanical stress.
  • Connector Protectors: Prevent damage to sensitive connections.
  • Optional FluidLoc: Prevents liquid ingress through the cable’s interior (available upon request).
• Electrical Properties:
  • Nominal DC Resistance:
    • Center Conductor to Center Conductor: 0.99 ± 0.15 Ω (4.5 m).
    • Outer Conductor to Outer Conductor: 0.30 ± 0.06 Ω (4.5 m).
  • Capacitance: 69.9 pF/m (21.3 pF/ft) (typical).
• Power Supply Requirements:
  • Voltage Range: -17.5 Vdc to -26 Vdc with a nonincendive circuit.
  • Maximum Consumption: 12 mA.
  • Output Resistance: 50 Ω.
• Performance Range:
  • Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils).
  • Compatible Target Material: AISI 4140 steel.
• Environmental Conditions:
  • Operating Temperature: +18˚C to +27˚C (+64˚F to +80˚F).
  • Maximum Altitude: 2000 meters.

FAQ

• Q1: What is the purpose of the FluidLoc option?
  The FluidLoc option prevents oil or other liquids from leaking through the cable’s interior, offering additional protection in oil-rich environments.
• Q2: Can silicone tape be used instead of connector protectors?
  Silicone tape is provided with every cable, but it is not recommended for turbine oil exposure. Connector protectors are a more reliable option.
• Q3: What is the pull strength of the CableLoc design?
  The patented CableLoc design ensures a pull strength of 330 N (75 lbf) for secure attachment.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
