Overview

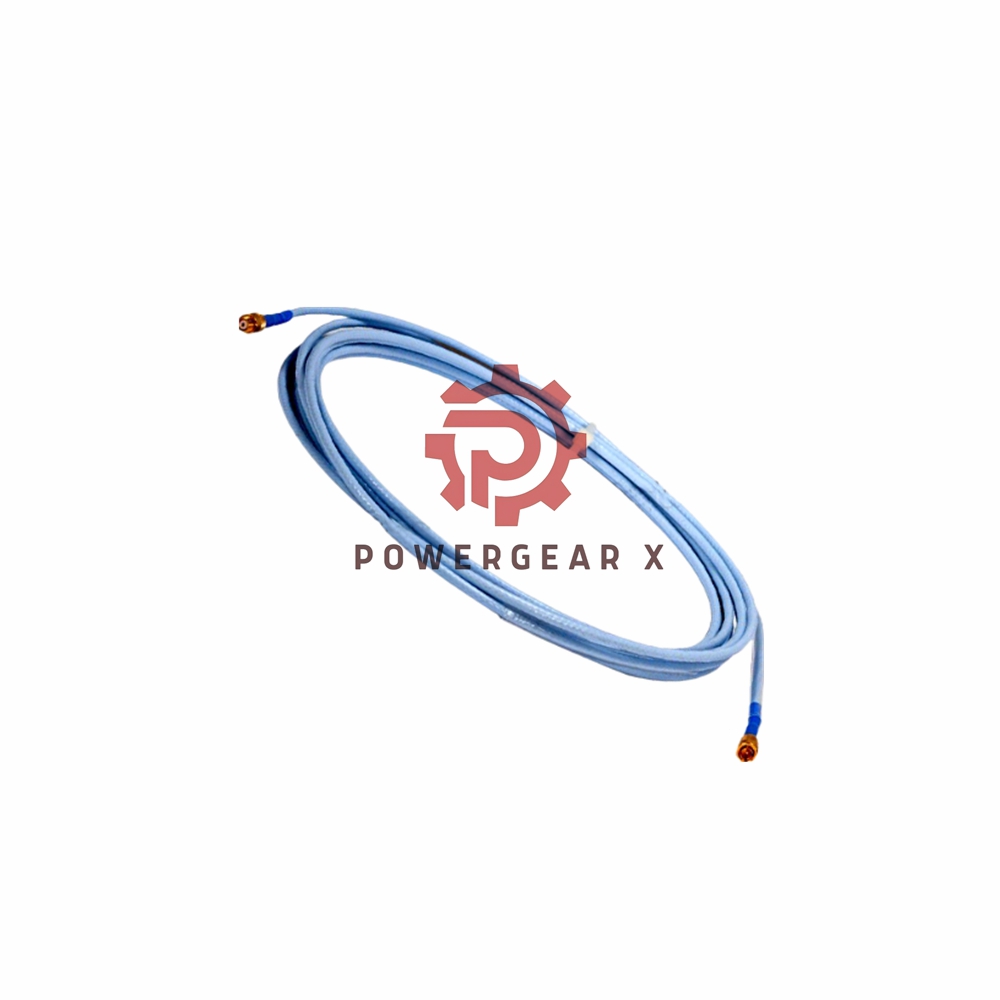

The Bently Nevada 330130-045-03-CN Extension Cable is designed to provide secure and reliable connections for 3300 XL proximity probes in various industrial applications. Its robust construction ensures durability, especially in harsh environments.
Key Features
- Patented TipLoc molding for a strong bond between the probe tip and body.
- CableLoc design offers 330 N (75 lbf) pull strength, enhancing the connection’s reliability.
- Armored cable with connector protectors (Option 03) for added protection.
- Optional FluidLoc cable to prevent leakage of oil and liquids.
- Silicone tape for alternative connector protection (not recommended for turbine oil applications).
Technical Specifications
- Brand: Bently Nevada
- Model: 330130-045-03-CN
- Cable Type: 75Ω triaxial
- Insulation: Fluoroethylene propylene (FEP) or Perfluoroalkoxy (PFA) for extended temperature range
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Connector Material: Gold-plated brass or gold-plated beryllium copper
- Maximum Connector Torque: 0.565 N•m (5 in•lbf)
- Temperature Range:
- Standard Cable: -52°C to +177°C (-62°F to +350°F)
- Extended Temperature Range Cable: -52°C to +260°C (-62°F to +500°F)
- Weight: 34 g/m (0.4 oz/ft)
FAQ
- What is the maximum temperature range for this cable?
The cable can withstand temperatures ranging from -52°C to +177°C for standard insulation and up to +260°C with extended temperature range cable. - Can I use silicone tape as an alternative to connector protectors?
Yes, silicone tape is included, but it is not recommended for turbine oil environments. - What are the connector material options for this extension cable?
The connectors are made from gold-plated brass or gold-plated beryllium copper for better durability and conductivity. - What is the cable’s pull strength?
The cable incorporates a CableLoc design, providing a pull strength of 330 N (75 lbf).
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
