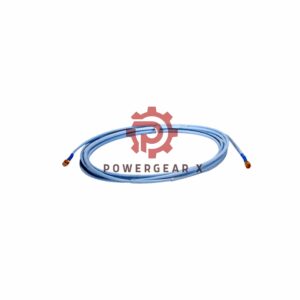

Bently Nevada | 330130-045-10-00 FluidLoc Extension Cable

Overview

The Bently Nevada 330130-045-10-00 Extension Cable is a high-performance accessory designed to enhance the reliability of proximity sensor systems. Built with advanced features like FluidLoc technology and patented CableLoc design, this cable ensures maximum durability and leak prevention in demanding industrial applications. Manufactured in the USA, it meets rigorous quality standards and is optimized for integration with 3300 XL 8 mm Proximitor Sensors and probes.

Technical Specifications

General Information

• Brand: Bently Nevada
• Model Number: 330130-045-10-00
• Product Type: Extension Cable
• Country of Manufacture: United States

Model Number Suffix Explanation

• 330130: 3300 XL Standard Extension Cable
• 045: Cable length in decimeters (4.5 meters)
• 10: FluidLoc cable with additional protection features
• 00: Indicates no additional approval requirements

Electrical Characteristics

• DC Resistance (RCORE):
  • Center Conductor to Center Conductor: 0.99 ± 0.15 Ω at 4.5 m
• DC Resistance (RJACKET):
  • Outer Conductor to Outer Conductor: 0.30 ± 0.06 Ω at 4.5 m

Compatibility

• Works seamlessly with 3300 XL 8 mm probes and Proximitor Sensors.
• Requires a power supply range of -17.5 Vdc to -26 Vdc for standard operation.

Cable Features

• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Pull Strength: 330 N (75 lbf) via CableLoc technology
• Field Wiring: 3-conductor shielded triad cable recommended (16–24 AWG)
• Linear Range: 2 mm (80 mils) starting from 0.25 mm (10 mils)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
