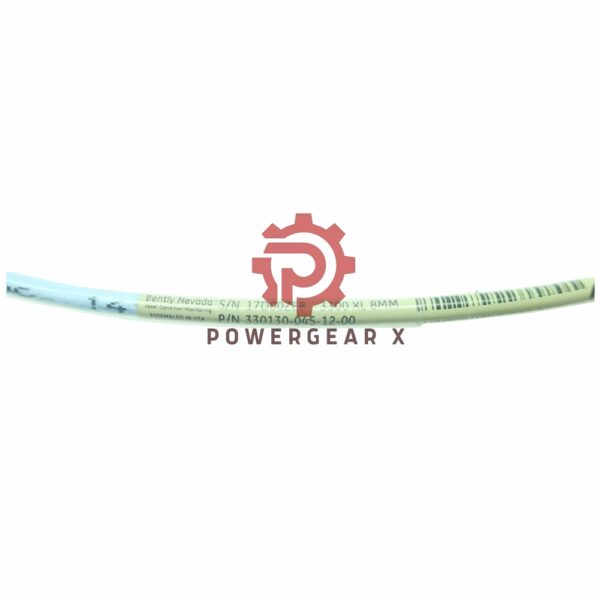

Bently Nevada | 330130-045-12-00 FluidLoc Extension Cable

0 Reviews
10 in stock
  • 100% genuine products in stock with fast delivery.
  • 30-day return policy for quality assurance.
  • 12-month warranty for peace of mind.
SKU: 330130-045-12-00

Product details

Overview

The Bently Nevada 330130-045-12-00 Extension Cable is designed for use with the 3300 XL series probes, providing robust performance and secure connections in industrial settings. Manufactured in the U.S.A., this extension cable offers a durable and efficient solution for enhancing your monitoring systems. It comes equipped with a 12 FluidLoc cable option, ensuring maximum protection against fluid leakage, and a connector protector for added security.

Key Features

  • Cable Length Option: 4.5 meters (14.8 feet)
  • Connector Protector & Cable Option: 12 FluidLoc cable with connector protector
  • Made in U.S.A with Certificate of Origin (COO) available upon request.
  • Silicone Tape: An alternative to connector protectors (not recommended for applications exposed to turbine oil).

Technical Specifications

  • Product Type: Extension Cable for Bently Nevada 3300 XL Probes
  • Connector Type: FluidLoc, designed to prevent leakage of oils and other liquids
  • Nominal Extension Cable DC Resistance:
    • RCORE (ā„¦): 0.99 Ā± 0.15 at 4.5m
    • RJACKET (ā„¦): 0.30 Ā± 0.06 at 4.5m
  • Power Supply:
    • Requires -17.5 Vdc to -26 Vdc with nonincendive circuit connection
    • Maximum consumption: 12 mA
  • Capacitance: 69.9 pF/m (21.3 pF/ft) typical
  • Field Wiring:
    • 0.2 to 1.5 mmĀ² (16 to 24 AWG)
    • Recommended cable: 3-conductor shielded triad, tinned field wiring
    • Maximum length: 305 meters (1,000 feet)
  • Linear Range:
    • From 0.25 mm (10 mils) to 2.3 mm (90 mils)
    • Approximate voltage range: -1 Vdc to -17 Vdc
  • Output Resistance: 50 Ī©

Brand & Model Breakdown:

  • Brand: Bently Nevada
  • Model: 330130-045-12-00
    • 330130: 3300 XL Standard Extension Cable
    • 045: Cable length (4.5 meters)
    • 12: Connector type and protection

FAQs

  • 1. What is the maximum length of the extension cable I can use?
  • The maximum recommended cable length is 305 meters (1,000 feet).
  • 2. Can I use silicone tape instead of a connector protector?
  • Yes, silicone tape can be used, but it is not recommended for environments exposed to turbine oil.
  • 3. What type of cable should I use for field wiring?
  • A 3-conductor shielded triad cable with tinned field wiring is recommended.
  • 4. How does the FluidLoc cable option benefit my installation?
  • The FluidLoc cable prevents oil and other liquids from leaking out through the cableā€™s interior, ensuring a secure and sealed connection.
  • 5. What are the power requirements for the extension cable?
  • The extension cable requires a power supply between -17.5 Vdc and -26 Vdc, with a maximum consumption of 12 mA.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet

Specifications

  • BrandBently Nevada
  • Model3300 XL Extension Cable
  • Part Number330130-045-12-00
  • ConditionOriginal Brand New
  • Delivery time1-3 Days
  • Warranty12 Months

Additional information

Weight 0.272 kg
Dimensions 81.3 × 50 × 63.5 mm
Country Of Origin

United States
