Bently Nevada | 330130-060-02-00 Standard Extension Cable

Overview

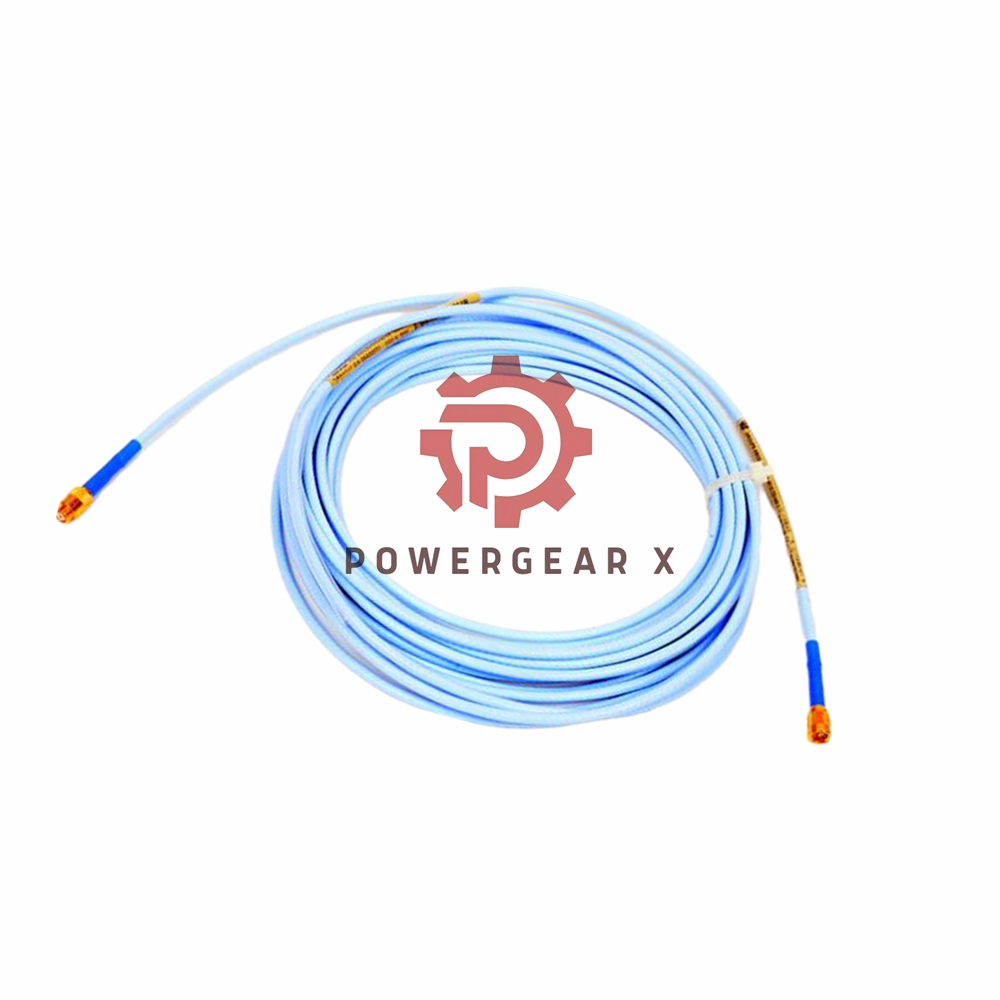

The Bently Nevada 330130-060-02-00 Extension Cable is a reliable and high-performance component designed for compatibility with the 3300 XL series. It provides robust connectivity, improved durability, and optimized resistance properties, ensuring accurate signal transmission for proximity sensing applications. This extension cable incorporates advanced patented technologies like TipLoc and CableLoc to enhance structural integrity and resist harsh environments. For additional flexibility, it includes silicone tape as an alternative to connector protectors, although this is not recommended for turbine oil exposure.

Key Features

• Brand and Model: Bently Nevada 330130-060-02-00
• 060: Cable length in decimeters (6.0 meters).
• 02: Standard cable with connector protector.
• 00: Approvals not required.
• Weight: 0.204 kg (34 g/m or 0.4 oz/ft)
• Patented Technologies:
  • TipLoc: Ensures a strong bond between probe tip and body.
  • CableLoc: Provides 330 N (75 lbf) pull strength for secure connections.
• Optional Feature: FluidLoc to prevent oil leakage.

Technical Specifications

• Nominal DC Resistance:
  • Center Conductor (RCORE): 1.32 ± 0.21 Ω at 6.0 meters.
  • Outer Conductor (RJACKET): 0.39 ± 0.08 Ω at 6.0 meters.
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Power Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc (nonincendive circuit).
  • Current: 12 mA maximum.
• Field Wiring:
  • Recommended: 3-conductor shielded triad cable.
  • Length: Maximum 305 meters (1,000 feet).
• Linear Range:
  • 2 mm (80 mils), starting at 0.25 mm (10 mils) from the target.
• Environmental Conditions:
  • Operating Temperature: +18˚C to +27˚C (+64˚F to +80˚F).
  • Altitude: Up to 2,000 meters.

Applications

• Suitable for proximity sensing in industrial machinery.
• Used in systems requiring robust oil leakage prevention.
• Ideal for environments where strong pull strength is essential.

FAQ

• Q1: Can this cable be used in oil-exposed environments?
  A1: Silicone tape is included, but not recommended for use in turbine oil. The FluidLoc option is better for oil-prone applications.
• Q2: What type of probe is compatible with this cable?
  A2: This extension cable is designed for use with 3300 XL 8 mm probes.
• Q3: How does the CableLoc technology enhance performance?
  A3: CableLoc provides a 330 N (75 lbf) pull strength to ensure secure attachment between the probe cable and probe tip.
• Q4: What is the recommended field wiring length?
  A4: The maximum length is 305 meters (1,000 feet) when using the specified shielded triad cable.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
