Bently Nevada | 330130-060-02-05 Standard Extension Cable

Overview

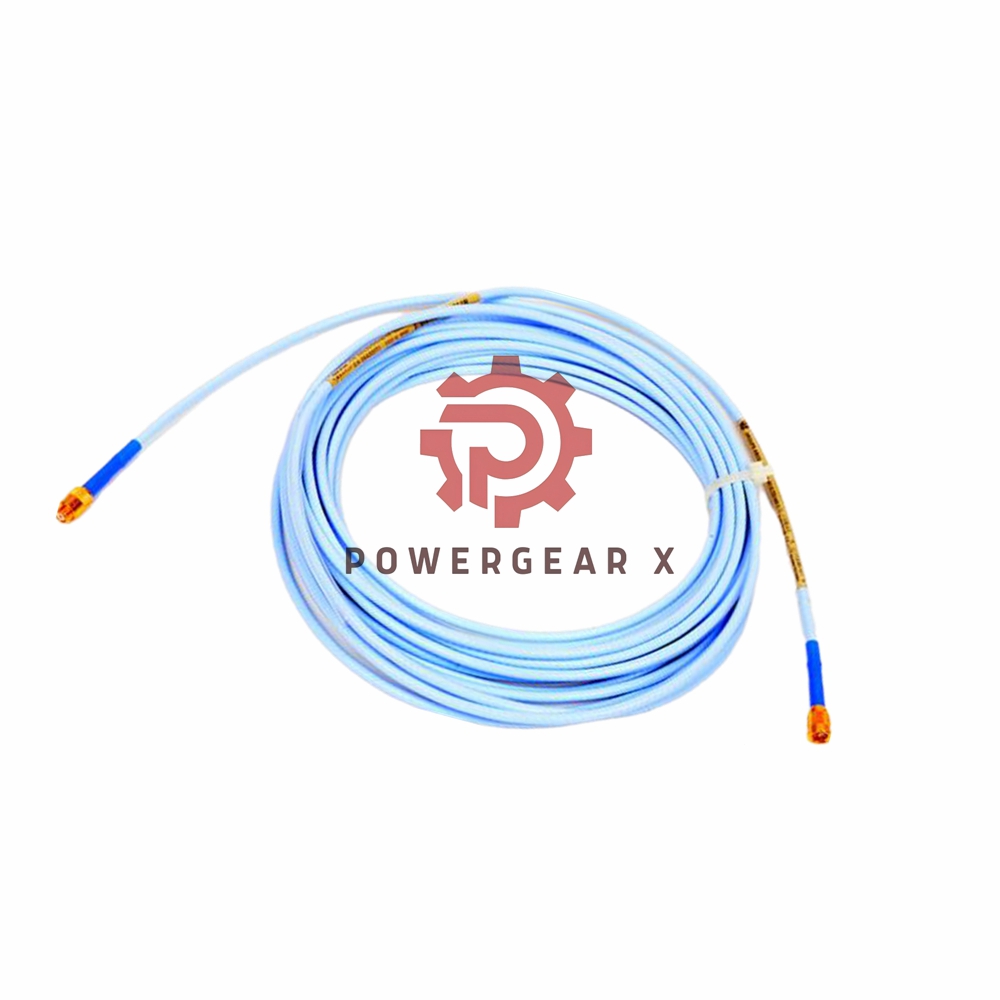

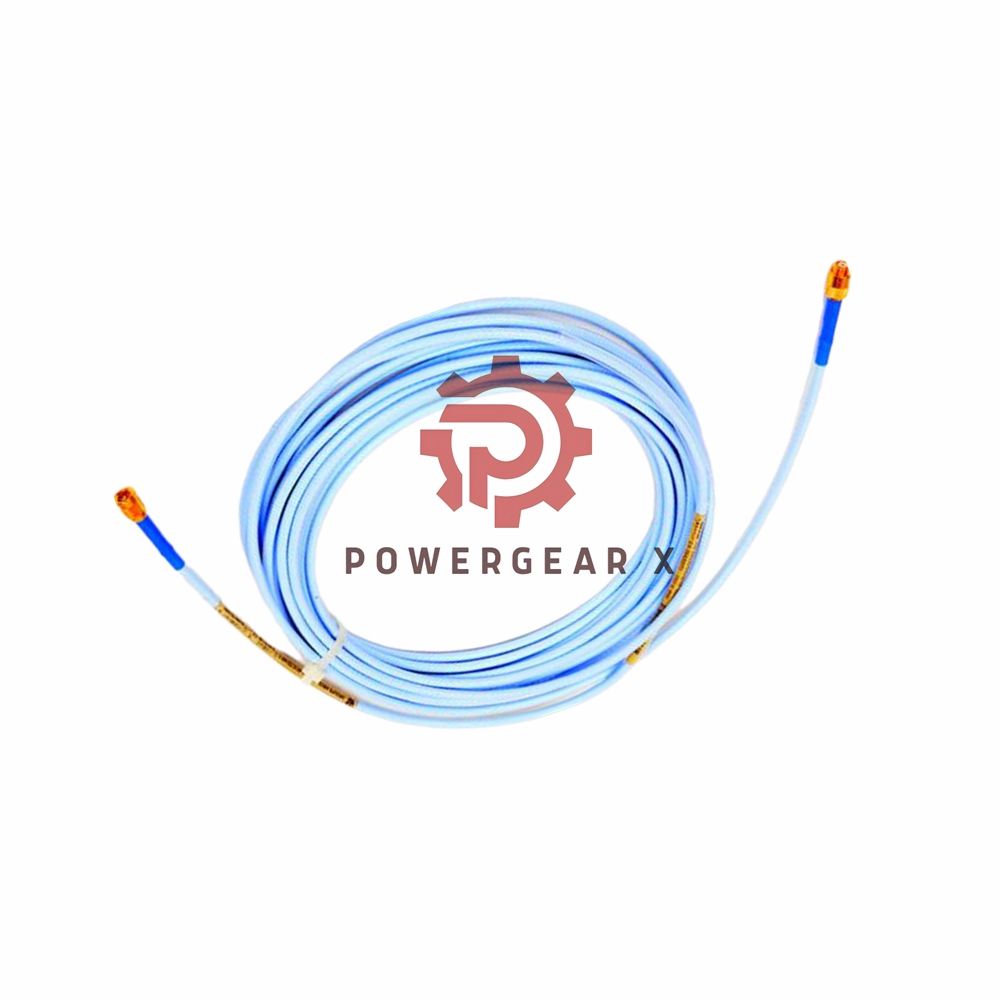

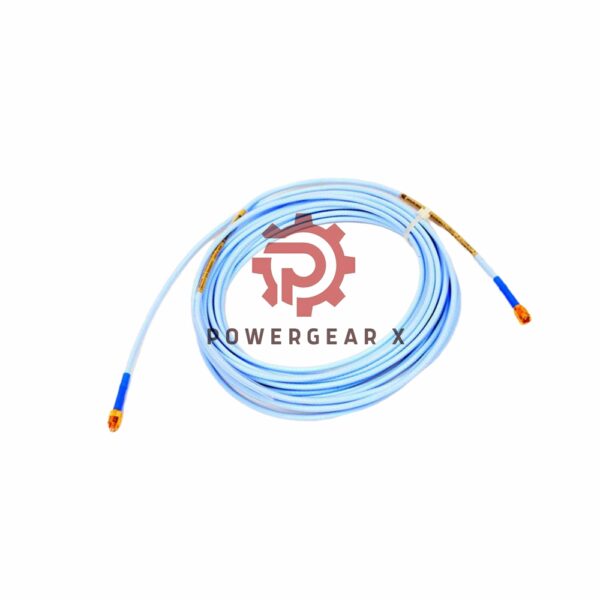

The Bently Nevada 330130-060-02-05 is a high-quality extension cable designed for industrial applications requiring reliable signal transmission. It is part of the 3300 XL series and includes advanced features such as a patented TipLoc and CableLoc design, ensuring durability and robust performance.

Key Features and Benefits

• Cable Length: 6.0 meters (19.7 feet) for versatile installation options.
• Connector Protection: Standard cable equipped with a connector protector.
• Certifications: Approved by CSA, ATEX, and IECEx for compliance in hazardous environments.
• Durable Design: Enhanced with TipLoc molding and CableLoc technology for superior strength and reliability.
• FluidLoc Option: Prevents oil and liquids from seeping through the cable’s interior, offering additional protection in challenging conditions.
• Temperature Range: Optimized for performance between +18°C and +27°C.
• Weight: Approximately 34 g/m (0.4 oz/ft), ensuring ease of installation.

Technical Specifications

• Resistance:
  • Center Conductor to Center Conductor (RCORE): 1.32 ± 0.21 Ω at 6.0 m.
  • Outer Conductor to Outer Conductor (RJACKET): 0.39 ± 0.08 Ω at 6.0 m.
• Capacitance: 69.9 pF/m (21.3 pF/ft), ensuring consistent signal integrity.
• Power Supply Requirements: -17.5 Vdc to -26 Vdc (-23 Vdc to -26 Vdc with barriers).
• Field Wiring: Compatible with 16 to 24 AWG shielded triad cables, with a maximum field wiring length of 305 meters.
• Operating Range: Linear measurement range from 0.25 mm to 2.3 mm (10 mils to 90 mils).

Applications

• Designed for use in systems integrating 8 mm Proximitor Sensors and 8 mm probes.
• Ideal for monitoring critical machinery in industries such as oil and gas, power generation, and manufacturing.

FAQ

1. What is the significance of the model suffix “02-05”?
   • “02” denotes the standard cable with a connector protector, while “05” indicates compliance with CSA, ATEX, and IECEx approvals.
2. Is 330130-060-02-05 compatible with other proximity probe systems?
   • The cable primarily supports Bently Nevada 3300 XL 8 mm components, and it may not work with other systems.
3. What is the purpose of the silicone tape included with each cable?
   • The silicone tape acts as an alternative to connector protectors but does not perform well in turbine oil environments.
4. Can this extension cable be used in hazardous environments?
   • The extension cable meets the necessary standards for hazardous environment applications.
5. What is the pull strength provided by the CableLoc feature?
   • The CableLoc design ensures a pull strength of 330 N (75 lbf), enhancing cable durability.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
