Bently Nevada 330130-060-10-00 | FluidLoc Extension Cable

Overview:

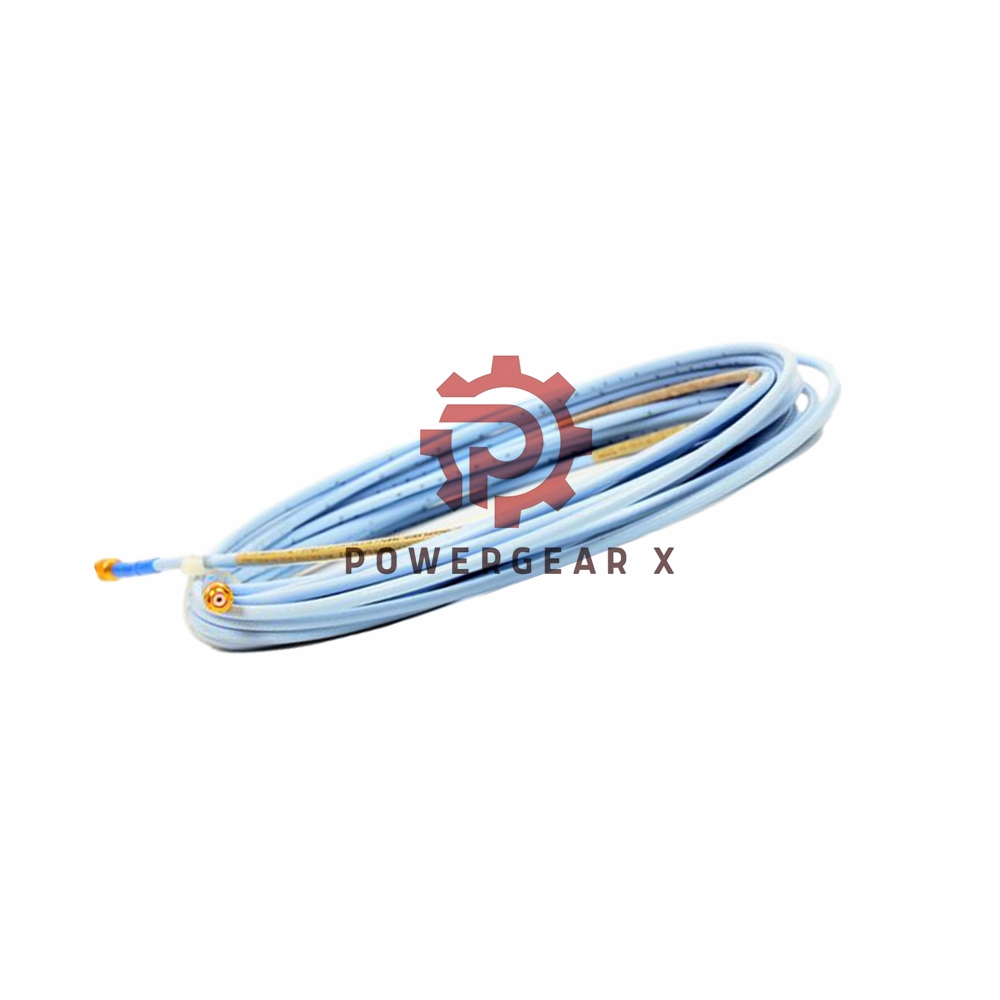

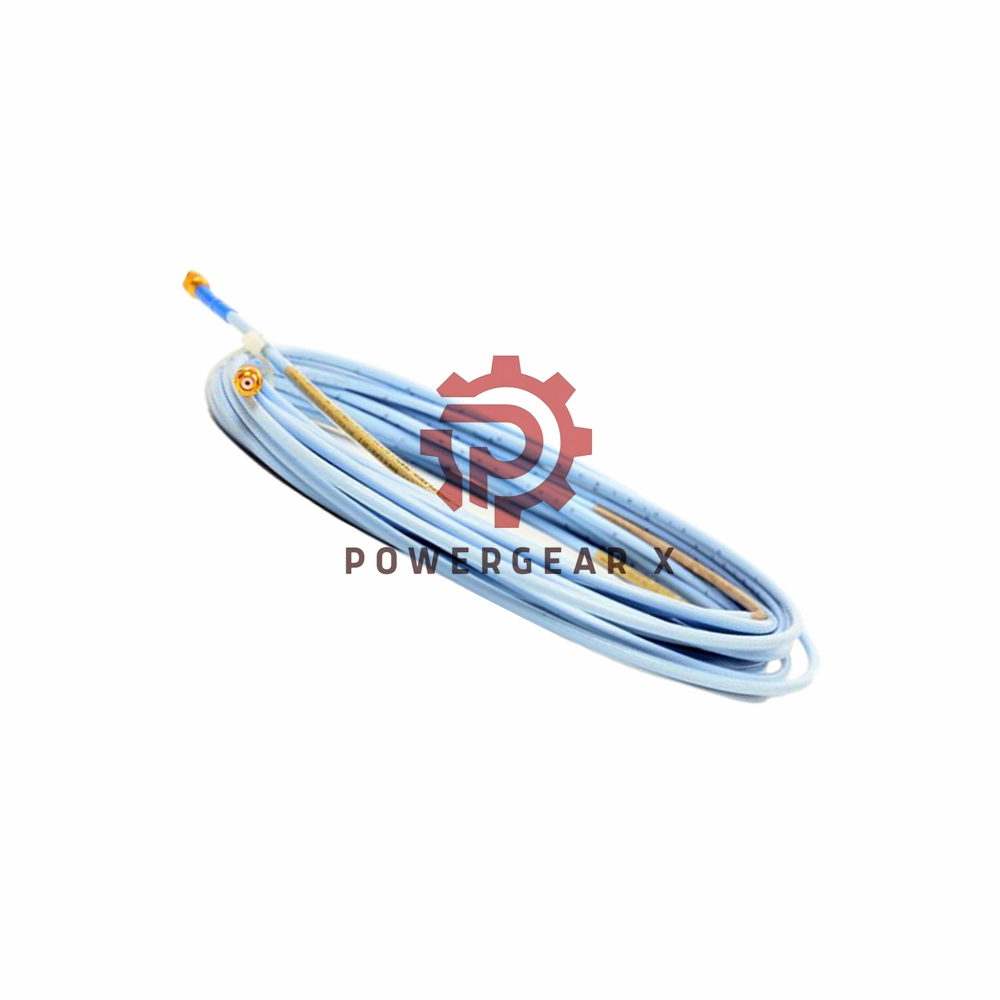

The Bently Nevada 330130-060-10-00 is an extension cable designed for use with the 3300 XL series probes. It features a length of 6.0 meters (19.7 feet) and includes high-quality components such as FluidLoc cable for added protection against oil leakage. The cable is ideal for use in industrial settings, where durability and reliability are crucial. The extension cable has been designed to work seamlessly with Bently Nevada’s 3300 XL probes, offering robust and secure connections.

Technical Specifications:

• Manufacturer: Bently Nevada
• Product Number: 330130-060-10-00
• Product Type: Extension Cable
• Country of Origin: Made in U.S.A.
• Cable Length: 6.0 meters (19.7 feet)
• Cable Option: 10 FluidLoc Cable
• Weight: 0.204 kg (1.36 lbs)
• Cable Weight: 34 g/m (0.4 oz/ft)
• Resistance:
  • Core Resistance (RCORE): 1.32 ± 0.21 Ω at 6.0 meters
  • Jacket Resistance (RJACKET): 0.39 ± 0.08 Ω at 6.0 meters
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), recommend using 3-conductor shielded triad cable with tinned field wiring
• Linear Range: 2 mm (80 mils), starts at approximately 0.25 mm (10 mils) from target, from 0.25 mm to 2.3 mm (10 to 90 mils)
• Voltage Requirement:
  • Requires -17.5 Vdc to -26 Vdc when installed with non-incendive circuit
  • -23 Vdc to -26 Vdc with barriers
• Supply Sensitivity: Less than 2 mV change in output per volt change in input
• Output Resistance: 50 Ω
• Maximum Length: 305 meters (1,000 feet) between sensor and monitor

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
