Bently Nevada | 330130-060-13-05 Armored Extension Cable

Overview

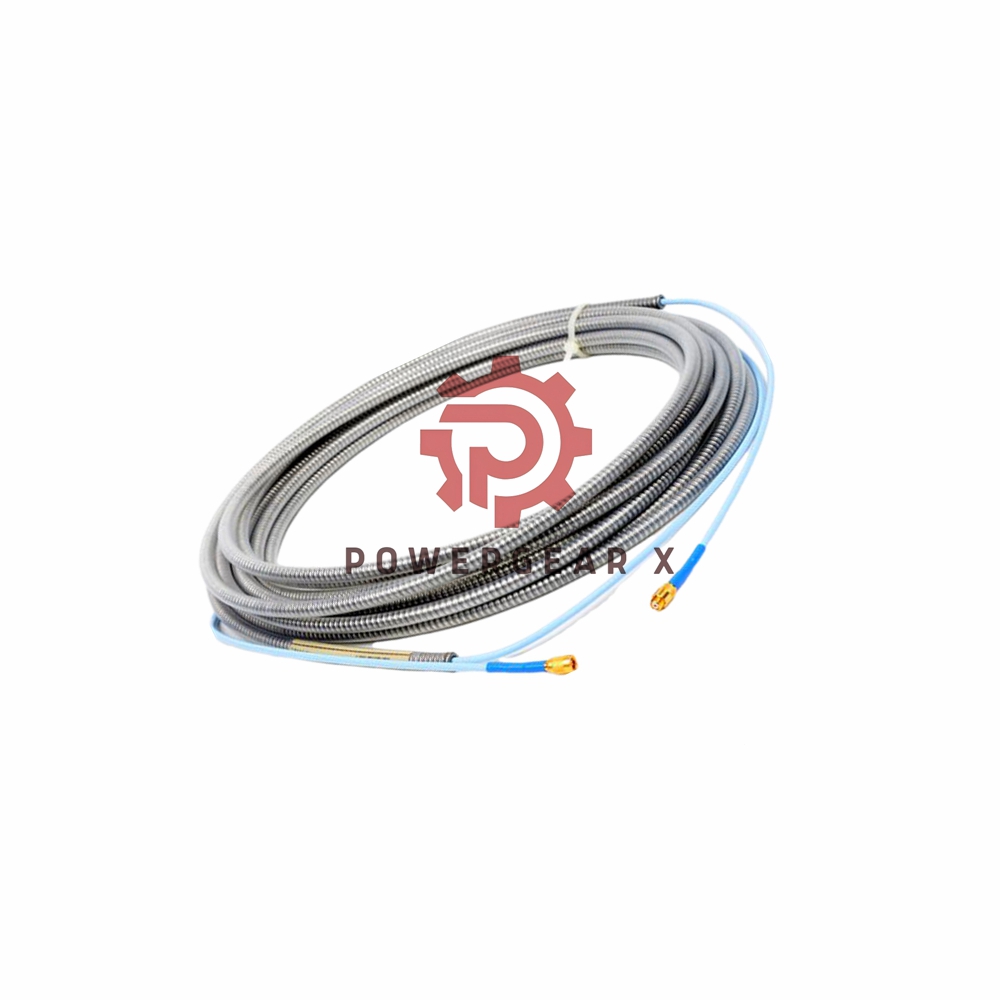

The Bently Nevada 330130-060-13-05 extension cable is designed to seamlessly integrate with the 3300 XL 8 mm Proximitor Sensor. This extension cable ensures a robust connection, offering reliable performance in various industrial applications. It comes with an armored FluidLoc cable option, providing enhanced durability and protection from external factors like oil. Made in the USA, this cable includes a Certificate of Origin (COO) option. This extension cable is perfect for long-range measurements, capable of handling high pull strength and offering excellent resistance for optimal performance.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-060-13-05
• Cable Length: 6.0 meters (19.7 feet)
• Cable Type: Armored FluidLoc cable with connector protector
• Approvals: CSA, ATEX, IECEx
• Weight:
  • 103 g/m (1.5 oz/ft)
  • 0.618 kg (1.36 lbs)
• DC Resistance:
  • RCORE (Center Conductor to Center Conductor): 1.32 ± 0.21 Ω (at 6.0 m)
  • RJACKET (Outer Conductor to Outer Conductor): 0.39 ± 0.08 Ω (at 6.0 m)
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • Suitable wire range: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended cable: 3-conductor shielded triad cable
• Maximum Cable Length: 305 meters (1,000 feet)
• Linear Range: 2 mm (80 mils), from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc when installed with non-incendive circuit
  • Power consumption: 12 mA maximum
  • Operation at more positive voltage than -23.5 Vdc reduces linear range
• Output Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Additional Features:
  • Includes silicone tape as an alternative to connector protectors (not recommended for turbine oil applications)
  • Optional FluidLoc cable to prevent liquid leakage

Frequently Asked Questions (FAQ)

• Q: What is the maximum cable length for the Bently Nevada 330130-060-13-05 extension cable?
  A: The maximum cable length is 305 meters (1,000 feet), but signal performance may degrade at longer distances.
• Q: Can I use silicone tape instead of connector protectors?
  A: Yes, silicone tape is included; however, it is not recommended for applications exposed to turbine oil.
• Q: Is this extension cable compatible with the 3300 XL 8 mm Proximitor Sensor?
  A: Yes, this cable is specifically designed for use with the 3300 XL 8 mm Proximitor Sensor and provides excellent performance when connected.
• Q: What approvals does the Bently Nevada 330130-060-13-05 extension cable have?
  A: The extension cable has CSA, ATEX, and IECEx approvals, ensuring its reliability in various industrial environments.
• Q: What is the importance of the FluidLoc cable option?
  A: The FluidLoc option helps prevent oil or other liquids from leaking through the cable’s interior, improving the durability and reliability of the cable in harsh environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
