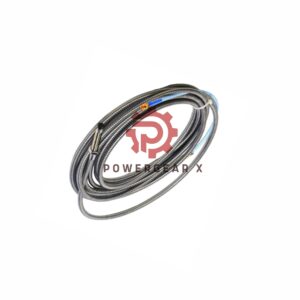

Bently Nevada 330130-070-03-00 | Armored Extension Cable

Overview

The Bently Nevada 330130-070-03-00 Extension Cable is engineered to deliver reliable performance in industrial vibration monitoring applications. Designed to work seamlessly with 3300 XL Proximity Transducer systems, it ensures accurate data transmission and durability even in demanding environments.

Technical Specifications

• Nominal DC Resistance:
  • Core Resistance (RCORE): 1.54 ± 0.23 Ω (for 7.0-meter length).
  • Jacket Resistance (RJACKET): 0.46 ± 0.09 Ω (for 7.0-meter length).
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Operating Temperature Range: +18°C to +27°C (+64°F to +80°F).
• Linear Range: 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target.
• Power Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc.
  • Maximum Consumption: 12 mA.
• Field Wiring Specifications:
  • Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG).
  • Maximum Length: 305 meters (1,000 feet) between Proximitor Sensor and monitor.

330130-070-03-00 Suffix Explanation

• 070: Indicates the cable length of 7.0 meters.
• 03: Denotes an armored cable with connector protector.
• 00: Specifies that no additional approvals are required.

Additional Advantages

• Patented Design Features:
  • TipLoc Technology: Ensures a robust bond between the probe tip and body.
  • CableLoc Technology: Provides a pull strength of 330 N (75 lbf), enhancing cable durability.
• Optional FluidLoc Technology: Prevents oil and other liquids from leaking through the cable.
• Silicone Tape: Included for connector protection, although not recommended for turbine oil exposure.

FAQs

1. What is the purpose of the armored cable?
   • The armored design adds durability and protection against mechanical damage.
2. Is this cable compatible with other Bently Nevada probes?
   • Yes, the 330130-070-03-00 extension cable is compatible with 3300 XL Proximitor Sensors and 8 mm probes.
3. What is the maximum field wiring length?
   • The field wiring can extend up to 305 meters (1,000 feet) between the Proximitor Sensor and the monitor.
4. What does the “03” in the product code signify?
   • It specifies that the cable is armored and includes a connector protector.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
