Bently Nevada 330130-070-13-00 | Armored FluidLoc Cable

Overview

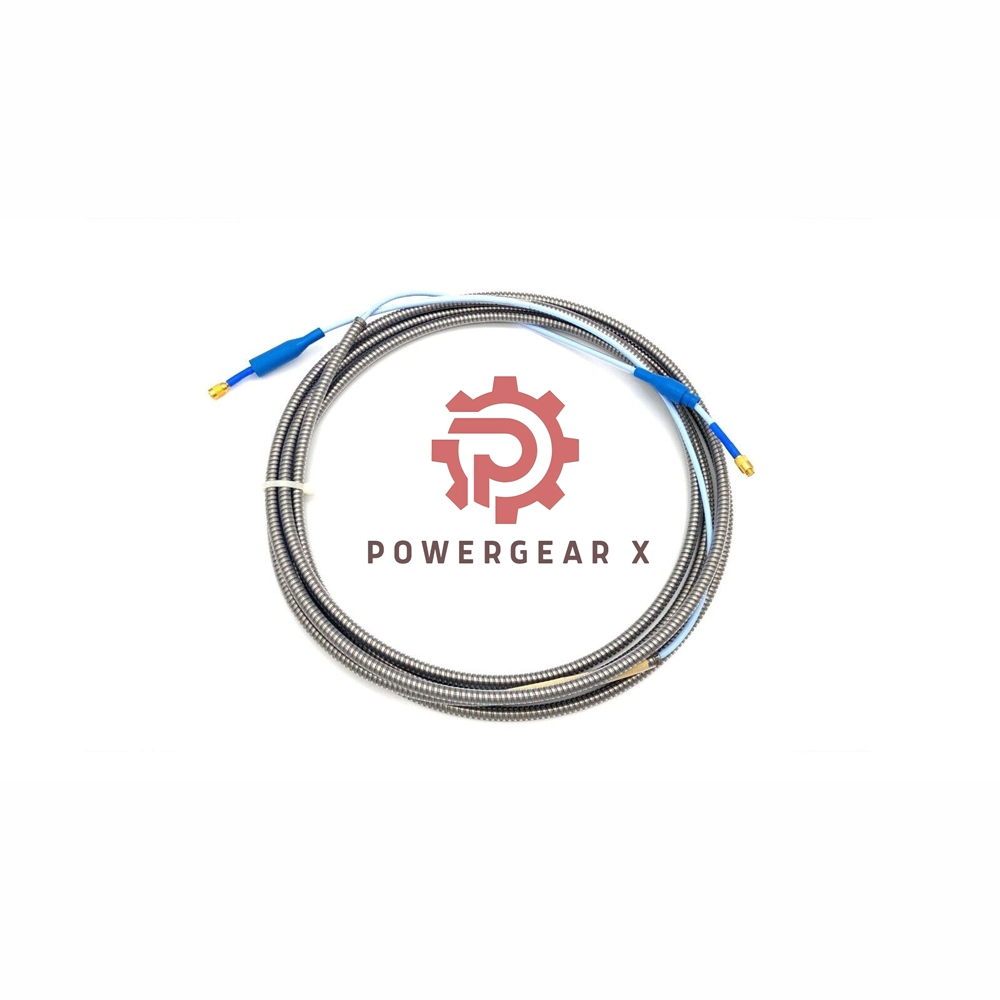

The Bently Nevada 330130-070-13-00 Extension Cable is engineered to enhance performance and reliability in proximity sensor systems. Manufactured in the U.S.A, it incorporates advanced features like the patented FluidLoc and CableLoc technologies, ensuring robust operation in industrial environments. The cable supports seamless integration with 3300 XL 8 mm Proximity Probe and Proximitor Sensor systems, offering reliable signal transmission even under challenging conditions.

Technical Specifications

General Information

• Brand: Bently Nevada
• Model: 330130-070-13-00
  • 070: Denotes a cable length of 7.0 meters (22.9 feet)
  • 13: Armored FluidLoc cable with connector protector
  • 00: No specific approvals required

Physical Characteristics

• Cable Weight:
  • 34 g/m (0.4 oz/ft); total weight: 0.238 kg
  • Armored cable: 103 g/m (1.5 oz/ft); total weight: 0.721 kg
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)

Electrical Properties

• DC Resistance:
  • Center Conductor (RCORE): 1.54 ± 0.23 Ω at 7.0 meters
  • Outer Conductor (RJACKET): 0.46 ± 0.09 Ω at 7.0 meters
• Supply Voltage Requirements:
  • Operates between -17.5 Vdc to -26 Vdc
  • Consumption: 12 mA maximum
  • -23 Vdc to -26 Vdc when used with barriers

Wiring Recommendations

• Field wiring: 0.2 to 1.5 mm² (16 to 24 AWG).
• Shielded triad cables with tinned wiring recommended.
• Maximum field wiring length: 305 meters (1,000 feet).

FAQ

• Q1: What does the “070” suffix signify in the model number?
  The suffix indicates the cable’s length, with “070” representing 7.0 meters (22.9 feet).
• Q2: Can this cable be used with all 3300 XL components?
  Yes, this cable works seamlessly with Bently Nevada 3300 XL Probes and Proximitor Sensors.
• Q3: What is the significance of the FluidLoc option?
  FluidLoc technology prevents oil and liquid from leaking through the cable, ensuring reliable performance in tough environments.
• Q4: Is silicone tape a viable replacement for connector protectors?
  Silicone tape can serve as an alternative, but it is unsuitable for environments exposed to turbine oil.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
