Bently Nevada | 330130-070-13-05 | Armored FluidLoc Cable

Overview

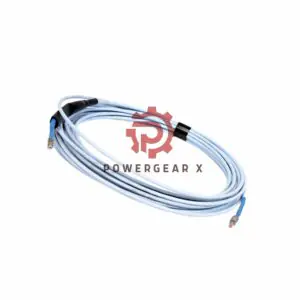

The Bently Nevada 330130-070-13-05 Extension Cable is designed to provide reliable, high-performance connections for 3300 XL probes in industrial settings. Manufactured in the U.S.A, it offers enhanced durability and performance with CSA, ATEX, and IECEx approvals. This extension cable is specifically built for use with 3300 XL 8 mm Proximity Sensors, ensuring a secure and effective connection.

Key Features & Benefits

• Cable Length: 7.0 meters (22.9 feet)
• Connector Protector and Cable Type: Armored FluidLoc cable with connector protector (model 13)
• Certificate of Origin (COO): Available upon request
• Approvals: CSA, ATEX, IECEx approved for industrial applications
• Silicone Tape Option: Each extension cable includes silicone tape for use as a connector protector, though it is not recommended for turbine oil exposure
• Robust Construction: Patented TipLoc molding and CableLoc design ensure secure probe and cable attachment, providing 330 N (75 lbf) pull strength

Technical Specifications

• Manufacturer: Bently Nevada
• Product Model: 330130-070-13-05
• Product Type: Extension Cable
• Made In: U.S.A
• Weight: 0.721 kg
• Cable Resistance (RCORE):
  • 7.0 m: 1.54 ± 0.23 Ω from center conductor to center conductor
• Jacket Resistance (RJACKET):
  • 7.0 m: 0.46 ± 0.09 Ω from outer conductor to outer conductor
• Cable Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Linear Range:
  • 0.25 mm (10 mils) to 2.3 mm (90 mils)
  • Linear range begins at 0.25 mm (10 mils) from target, with a range of -1 to -17 Vdc
• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc when connected with a non-incendive circuit
  • Consumption: 12 mA maximum
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommend using 3-conductor shielded triad cable and tinned field wiring
  • Maximum cable length: 305 meters (1,000 feet)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
