Bently Nevada 330130-075-10-00 | FluidLoc Extension Cable

Overview

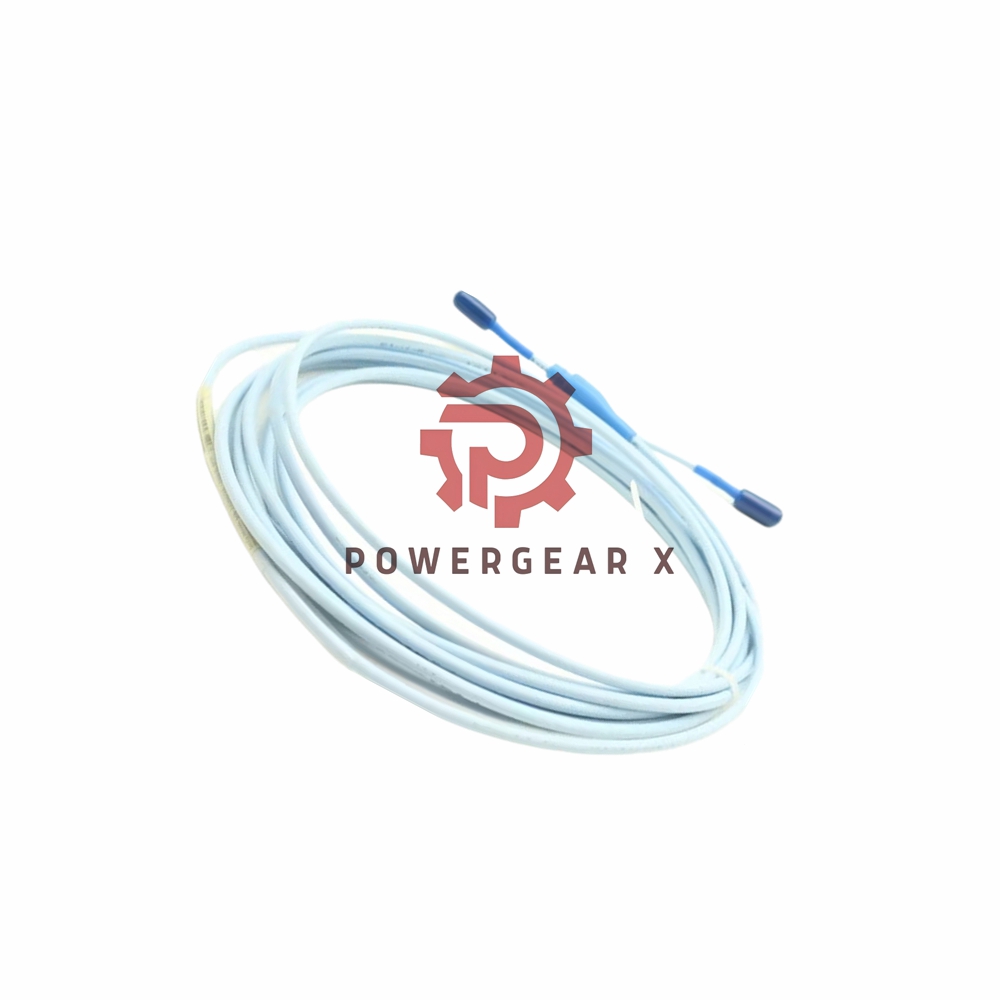

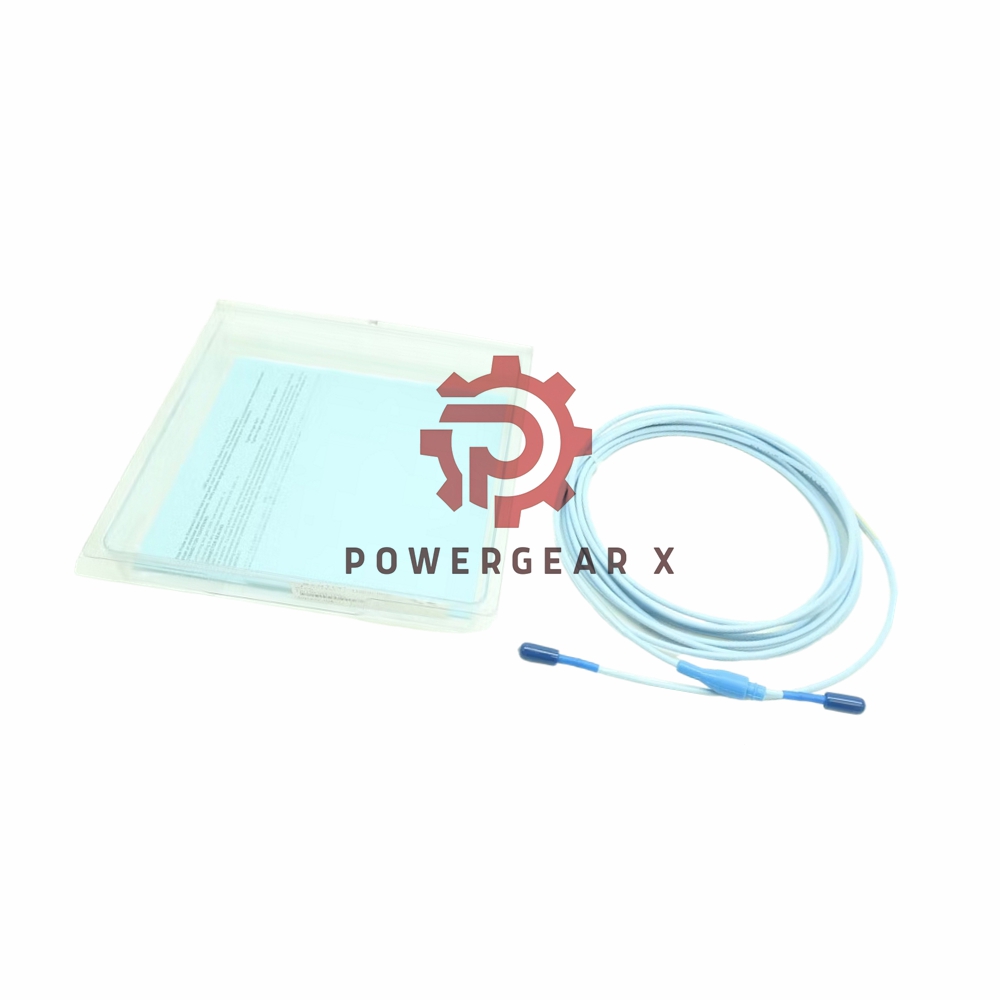

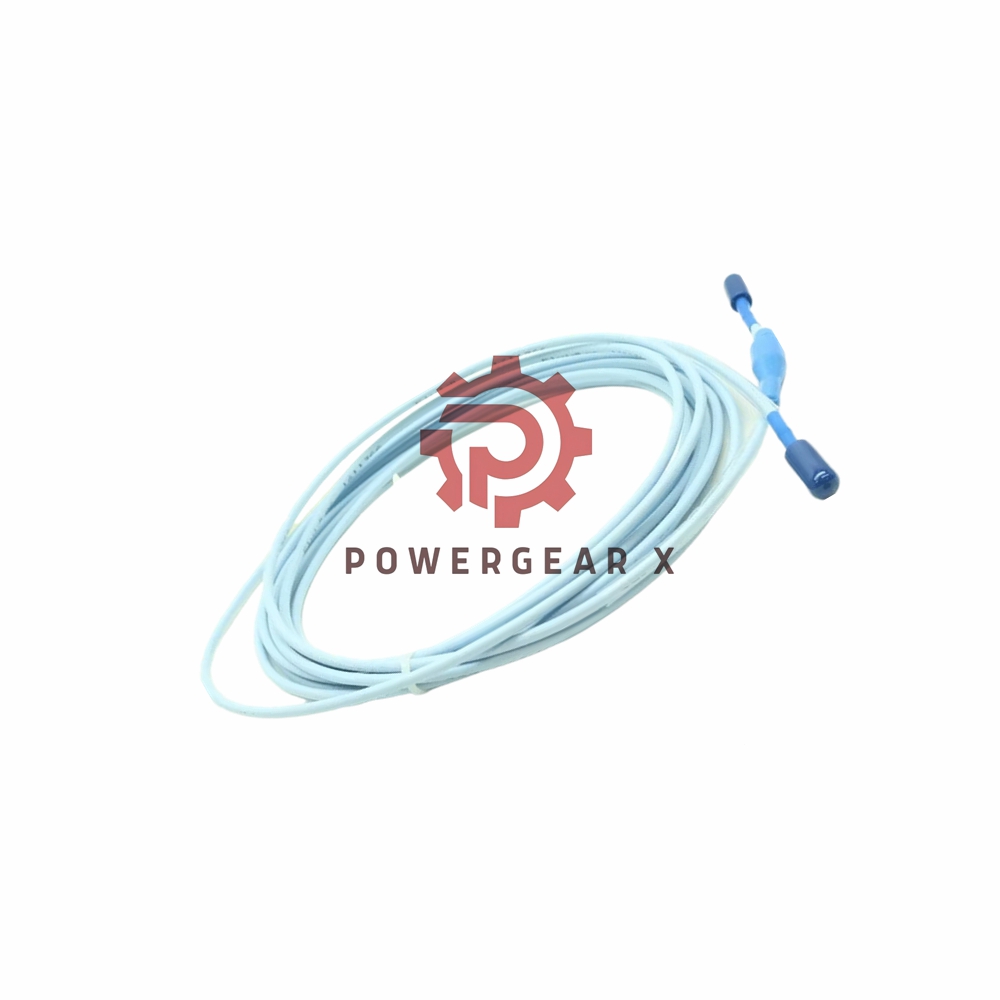

The Bently Nevada 330130-075-10-00 extension cable is an integral component of the 3300 XL Proximity Transducer System, designed to deliver robust performance in industrial monitoring applications. This cable offers enhanced durability through patented technologies like CableLoc for increased pull strength and an optional FluidLoc feature that prevents oil leakage. With a length of 7.5 meters (24.6 feet), this extension cable ensures optimal connectivity between the probe and the Proximitor sensor.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-075-10-00
• Cable Length:
  • 075 = 7.5 meters (24.6 feet)
• Connector & Cable Option:
  • 10 = FluidLoc cable to prevent fluid ingress.
• Approvals:
  • 00 = Not required
• Nominal Cable DC Resistance:
  • Center Conductor (RCORE): 1.65 ± 0.25 Ω
  • Outer Conductor (RJACKET): 0.49 ± 0.10 Ω

Patented Design Features

• CableLoc: Ensures a pull strength of 330 N (75 lbf) for secure cable-to-probe connections.
• FluidLoc Option: Stops fluids from leaking through the cable’s interior, maintaining system integrity.
• TipLoc Molding: Strengthens the bond between the probe tip and its body for durability in harsh environments.

Electrical Properties

• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical.
• Output Resistance:
  • 50 Ω.
• Power Requirements:
  • -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA.
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG), with a recommended shielded triad cable for lengths up to 305 meters (1,000 feet).

Performance

• Linear Range:
  • From 0.25 mm to 2.3 mm (10 to 90 mils).
• System Compatibility:
  • Designed for the 3300 XL 8 mm Proximitor system.
• Temperature Range:
  • Performance is optimal between +18°C and +27°C.

FAQ

• 1. Can the cable withstand turbine oil exposure?
  Silicone tape is included, but it’s not recommended for applications involving turbine oil. Use connector protectors instead.
• 2. What is the recommended power supply range?
  The cable operates between -17.5 Vdc and -26 Vdc, ensuring consistent performance.
• 3. Is the cable interchangeable with other probe systems?
  The 330130 extension cable is specifically designed for Bently Nevada 3300 XL systems and may not meet specifications with other systems.
• 4. What are the benefits of the FluidLoc option?
  FluidLoc prevents oil and liquid ingress, ensuring cable integrity and extending service life in industrial environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
