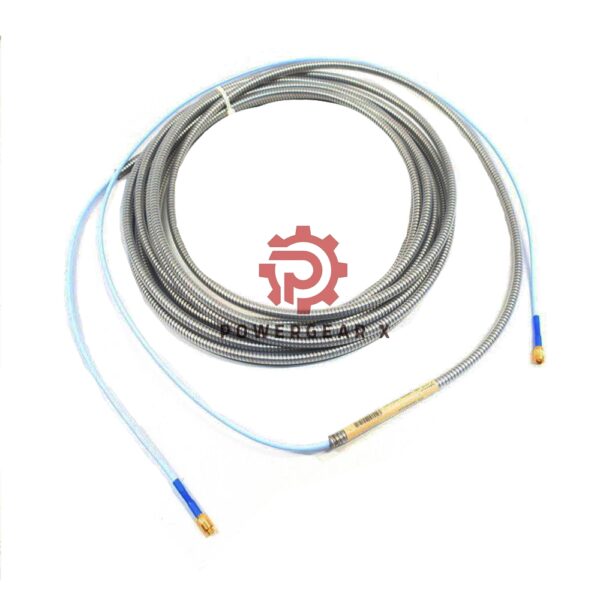

Bently Nevada 330130-080-01-00 | 3300 XL Extension Cable

0 Reviews
10 in stock
  • 100% genuine products in stock with fast delivery.
  • 30-day return policy for quality assurance.
  • 12-month warranty for peace of mind.
SKU: 330130-080-01-00

Product details

Overview

The Bently Nevada 3300 XL Standard Extension Cable (330130-080-01-00) offers robust performance, durability, and advanced features for industrial machinery monitoring. Designed for compatibility with 3300 XL Proximity Probes and Proximitor Sensors, this armored cable ensures precision and reliability across diverse applications.

Key Technical Details

  • Capacitance: 69.9 pF/m (21.3 pF/ft), typical.
  • Power Supply: Operates at -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA.
  • Output Resistance: 50 Ω.
  • Linear Range: From 0.25 mm (10 mils) to 2.3 mm (90 mils) for a -1 Vdc to -17 Vdc output.
  • Field Wiring: Supports 0.2 to 1.5 mm² (16–24 AWG) with shielded triad cables, allowing a maximum distance of 305 meters (1,000 feet) from the Proximitor Sensor to the monitor.

Design Innovations

  • TipLoc Technology: A patented method enhances the bond between the probe tip and body, ensuring long-lasting durability.
  • CableLoc System: Offers superior pull strength of 330 N (75 lbf) for secure connections.
  • Optional FluidLoc Technology: Prevents fluid leakage through the cable’s interior, safeguarding machinery.

330130-080-01-00 Suffix and Model Meaning

  • 330130: Denotes the 3300 XL extension cable model series.
  • 080: Specifies an 8.0-meter cable length.
  • 01: Indicates the armored cable option.
  • 00: Signifies that no additional agency approvals are required.

FAQ

1. What is the purpose of the FluidLoc option?
FluidLoc prevents oil or liquids from traveling through the cable, ensuring contamination-free operation.

2. Can this extension cable support long wiring distances?
Yes, it allows up to 305 meters (1,000 feet) of field wiring while maintaining signal integrity.

3. What is the benefit of the armored cable design?
The armored design provides added protection in industrial environments with high mechanical stress.

4. Is the cable compatible with older Bently Nevada systems?
Yes, but optimal performance is guaranteed with 3300 XL series probes and Proximitor Sensors.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet

Specifications

  • BrandBently Nevada
  • Model3300 XL Extension Cable
  • Part Number330130-080-01-00
  • ConditionOriginal Brand New
  • Delivery time1-3 Days
  • Warranty12 Months

Additional information

Weight 0.272 kg
Dimensions 81.3 × 50 × 63.5 mm
Country Of Origin

United States
