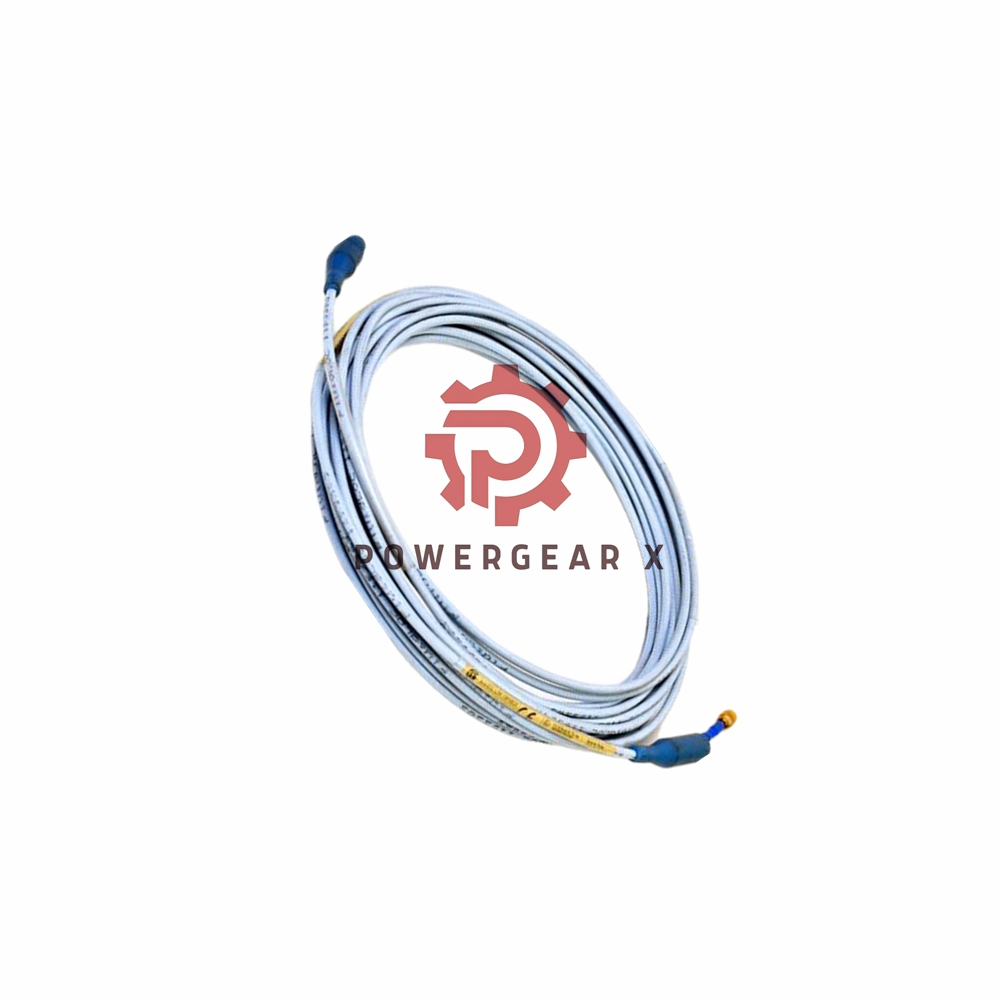

Bently Nevada | 330130-080-01-05 Standard Extension Cable

Overview

The 3300 XL Standard Extension Cable (Product No: 330130-080-01-05) is a high-performance cable engineered for use with the 3300 XL Proximitor Sensor, featuring significant advancements in design and durability. Made in the U.S.A, it incorporates a robust construction that enhances performance and reliability.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Standard Extension Cable (330130-080-01-05)
• Cable Length: 8.0 meters (26.2 feet)
• Connector Protector and Cable Option: Armored cable (01)
• Agency Approval Option: CSA, ATEX, IECEx (05)
• Material: 75 triaxial, fluoroethylene propylene (FEP) insulated
• Weight: 0.89 Kg
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Recommended Cable: 3 conductor shielded triad cable with tinned field wiring
• Maximum Length: 305 meters (1,000 feet) between the Proximitor Sensor and the monitor
• Power Requirements: -17.5 Vdc to -26 Vdc with nonincendive circuit; -23 Vdc to -26 Vdc with barriers
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Linear Range: 2 mm (80 mils), starting from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
