Bently Nevada | 330130-080-01-CN Standard Extension Cable

Overview

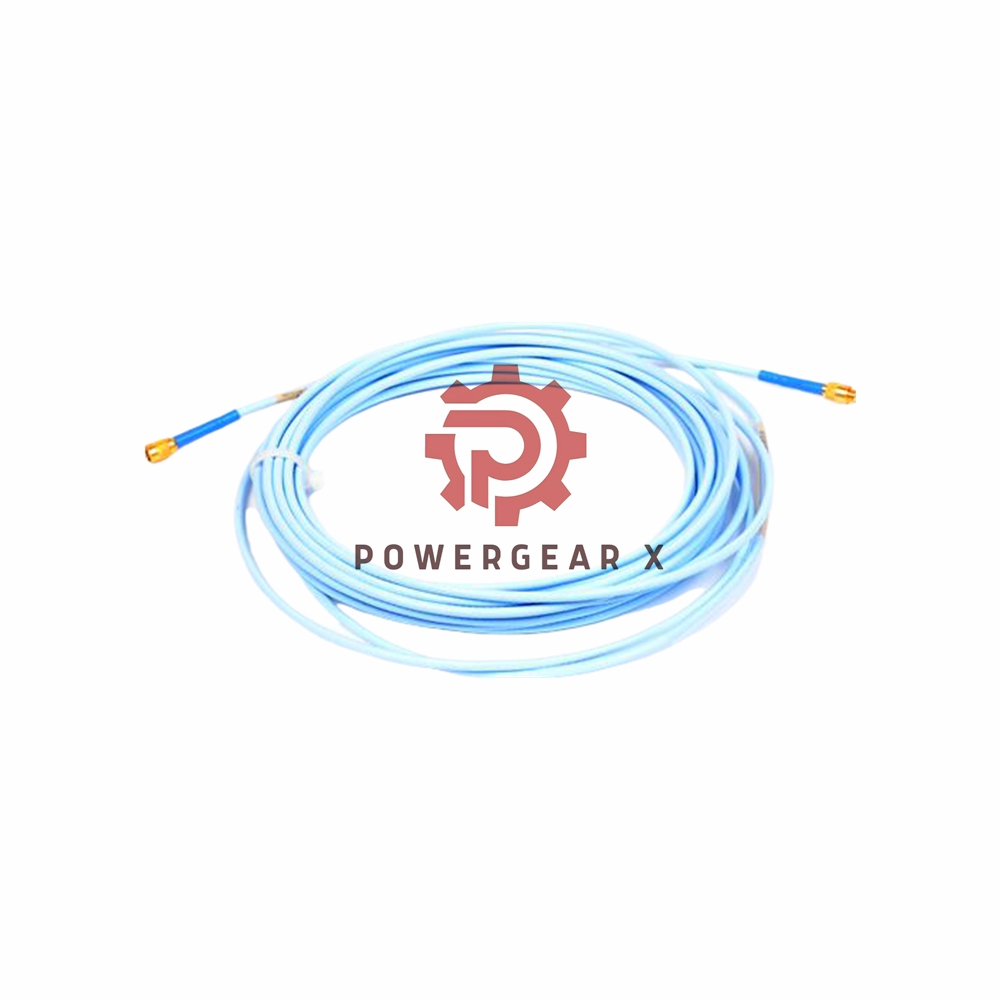

The Bently Nevada 330130-080-01-CN is a 3300 XL Standard Extension Cable designed for industrial applications requiring high accuracy and durability. This model, part of the 3300 XL series, features a robust construction with a patented CableLoc design that enhances pull strength and reliability.

Technical Specifications

• Brand: Bently Nevada

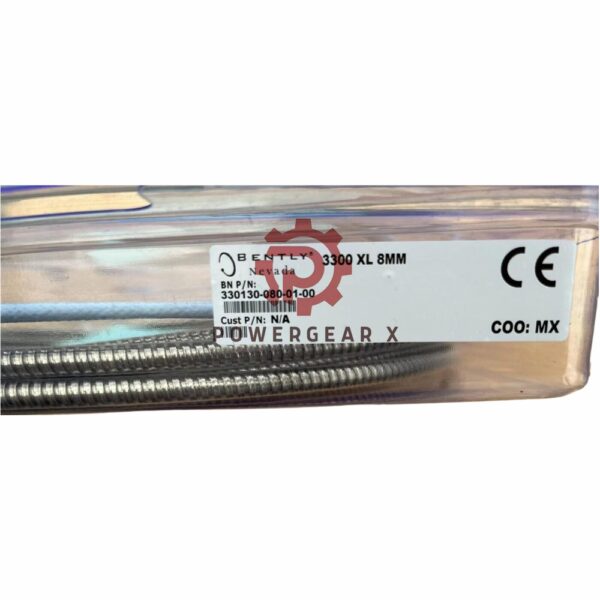

• Model: 330130-080-01-CN
• Suffix Details:
  • 080: 8.0 meters (26.2 feet) cable length.
  • 01: Armored cable with connector protection.
  • CN: Country-specific agency approvals.
• Material: 75 triaxial, FEP-insulated cable.
• Weight: 0.89 kg.
• Operating Power Requirements: -17.5 Vdc to -26 Vdc, 12 mA maximum consumption.
• Supply Sensitivity: Less than 2 mV output voltage change per volt input voltage change.
• Output Resistance: 50 Ω.
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); recommended 3-conductor shielded triad cable.
• Maximum Wiring Length: 305 meters (1,000 feet).
• Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils) with a starting point at 0.25 mm from the target.

Features and Benefits

• Patented Designs: TipLoc and CableLoc technologies provide enhanced durability and performance.
• Optional FluidLoc: Prevents oil or liquid leakage, offering added protection.
• Compatibility: Engineered for use with Bently Nevada 3300 XL 8 mm Probes and Proximitor Sensors.
• Durability: Armored cable ensures resilience in harsh environments.
• Precise Measurement: Ideal for applications requiring accurate and consistent data transmission.

FAQ

1. What is the purpose of the FluidLoc option?
The FluidLoc feature prevents oil and liquids from leaking through the cable’s interior, enhancing system reliability.

2. Is the cable compatible with other Bently Nevada probes?
Yes, it is specifically designed for use with 3300 XL 8 mm Probes and Proximitor Sensors.

3. How long is the cable in model 330130-080-01-CN?
This model features an 8.0-meter (26.2-foot) cable length.

4. Can this extension cable be used in explosive environments?
The CN suffix denotes country-specific agency approvals, which may include certifications for hazardous environments.

5. What is the linear range of the cable in a standard setup?
The linear range is from 0.25 mm (10 mils) to 2.3 mm (90 mils).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
