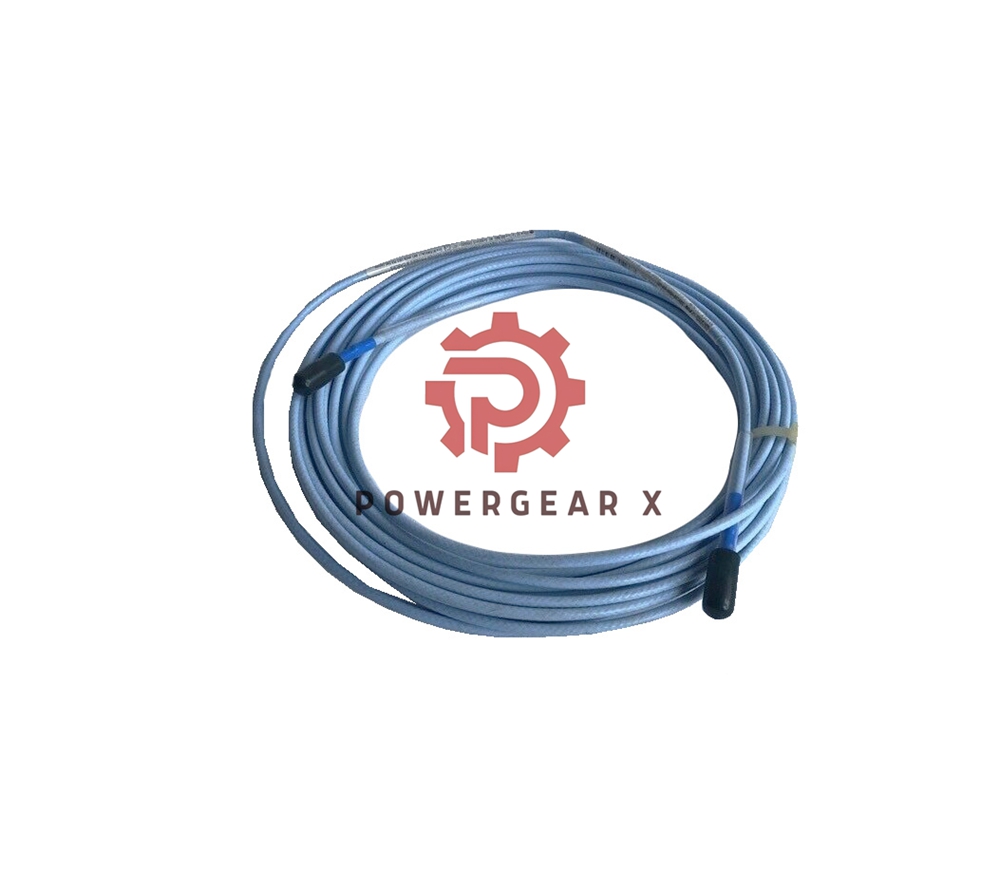

Bently Nevada 330130-080-10-CN | Standard Extension Cable

Overview

The Bently Nevada 3300 XL Standard Extension Cable (Product No. 330130-080-10-CN) is designed for use with 3300 XL Proximitor Sensors, delivering superior performance with an advanced CableLoc design which ensures robust connections. Made in the USA, this cable is available in a length of 8.0 meters (26.2 feet) and features a patented TipLoc molding method that enhances the bond between the probe tip and the probe body. The FluidLoc cable option effectively prevents liquid leakage, making it suitable for various applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Standard Extension Cable
• Product Number: 330130-080-10-CN
• Cable Length: 080 = 8.0 meters (26.2 feet)
• Connector Protector: 10 indicates FluidLoc cable option
• Agency Approval Option: CN (country-specific approvals)
• Material: 75 triaxial, fluoroethylene propylene (FEP) insulated
• Weight: 0.89 kg
• Power Requirements: -17.5 Vdc to -26 Vdc for non-incendive circuits, -23 Vdc to -26 Vdc with barriers
• Maximum Current Consumption: 12 mA
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); recommended use of 3 conductor shielded triad cable
• Maximum Wiring Length: 305 meters (1,000 feet)
• Linear Range: 2 mm (80 mils); operational from approximately 0.25 mm (10 mils) from target, ranging from 0.25 to 2.3 mm (10 to 90 mils)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
