Bently Nevada 330130-085-10-00 | FluidLoc Cable

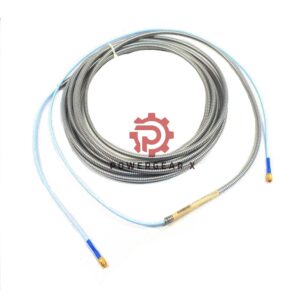

Overview

The Bently Nevada 330130-085-10-00 extension cable is designed for use with the 3300 XL proximity sensor series. Manufactured in the U.S.A., this extension cable offers high durability, optimal performance, and flexibility for industrial applications. The cable is available with an 8.5-meter (27.9 feet) length and features a FluidLoc cable option, which prevents oil and other liquids from leaking through the cable’s interior. The patented TipLoc and CableLoc designs ensure robust connections and high pull strength for long-lasting reliability.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-085-10-00
• Cable Length: 8.5 meters (27.9 feet)
• Connector Protector Option: FluidLoc cable (recommended for non-oil-exposed environments)
• Weight:
  • 34 g/m (0.4 oz/ft), 0.289 kg
• Made In: U.S.A.
• Certificate of Origin (COO): Available upon request

Electrical Characteristics:

• DC Resistance (RCORE):
  • 8.5 meters: 1.87 ± 0.28 Ω
• Outer Conductor Resistance (RJACKET):
  • 8.5 meters: 0.56 ± 0.11 Ω
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Supply Voltage: Requires -17.5 Vdc to -26 Vdc
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change per volt change in input voltage
• Linear Range: 0.25 mm (10 mils) to 2.3 mm (90 mils)

Field Wiring:

• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• Recommended Cable: 3-conductor shielded triad cable
• Maximum Cable Length: 305 meters (1,000 feet)

Installation:

• The cable is ideal for use with the 3300 XL 8 mm probes and can be installed in systems that have a power supply of -24 Vdc.
• The cable’s resistance and capacitance specifications ensure high signal quality over extended distances, though longer wiring lengths may result in signal roll-off at high frequencies.

FAQ

1. What type of cable is recommended for wiring?
   We recommend using a 3-conductor shielded triad cable for optimal signal integrity.
2. What is the voltage requirement for the extension cable?
   The extension cable requires a power supply of -17.5 Vdc to -26 Vdc for proper operation.
3. How does the FluidLoc cable option work?
   The FluidLoc option prevents oil and other liquids from leaking out through the cable, making it ideal for high-integrity applications.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
