Bently Nevada | 330130-085-10-05 FluidLoc Cable

Overview

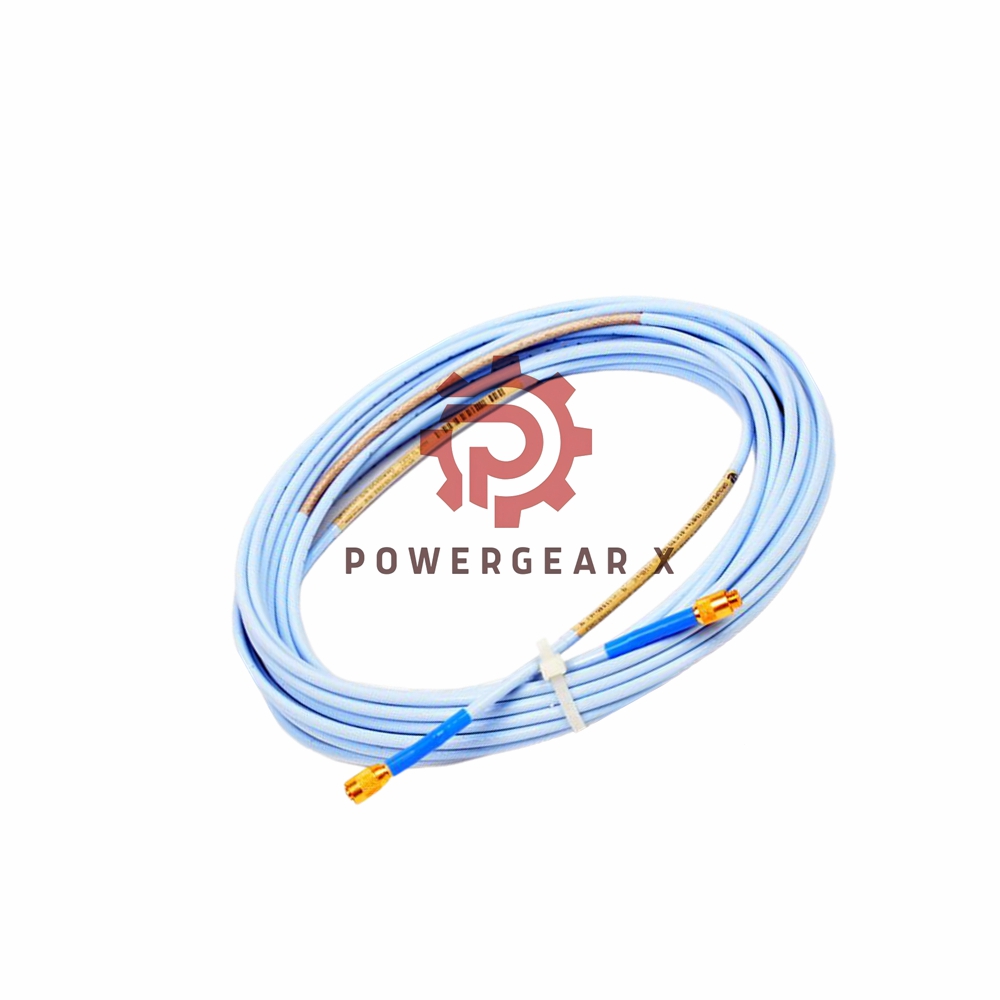

The Bently Nevada 330130-085-10-05 Extension Cable is designed for use with 3300 XL proximity sensors and probes. Manufactured in the U.S.A., this extension cable is designed for high-performance monitoring in industrial applications. It offers flexible cable length options, such as the 8.5-meter (27.9 feet) variant, ensuring adaptability to various installation requirements.

Key Features:

• Brand: Bently Nevada
• Product: 330130-085-10-05 Extension Cable
• Made in: U.S.A.
• Certificate of Origin (COO): Available on request
• Cable Length: 8.5 meters (27.9 feet)
• Cable Type: FluidLoc cable option available for oil/liquid protection
• Approvals: CSA, ATEX, IECEx
• Weight:
  • 34 g/m (0.4 oz/ft) 0.289kg
• Silicone Tape: Included for use as an alternative to connector protectors (not recommended for turbine oil exposure)

Technical Specifications:

• Resistance (RCORE):
  • From center conductor to center conductor: 1.87 ± 0.28 Ω (for 8.5 meters)
• Resistance (RJACKET):
  • From outer conductor to outer conductor: 0.56 ± 0.11 Ω (for 8.5 meters)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • Recommended cable: 3-conductor shielded triad cable
  • Field wiring gauge: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum wiring length: 305 meters (1,000 feet)
• Power Supply: Requires -17.5 Vdc to -26 Vdc (at 12 mA max consumption)
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output per volt change in input
• Linear Range:
  • 0.25 mm to 2.3 mm (10 to 90 mils)
  • Begins at approximately 0.25 mm (10 mils) from the target
• Operating Temperature: +18°C to +27°C (+64°F to +80°F)
• Altitude: Maximum 2000 meters (6562 feet)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
