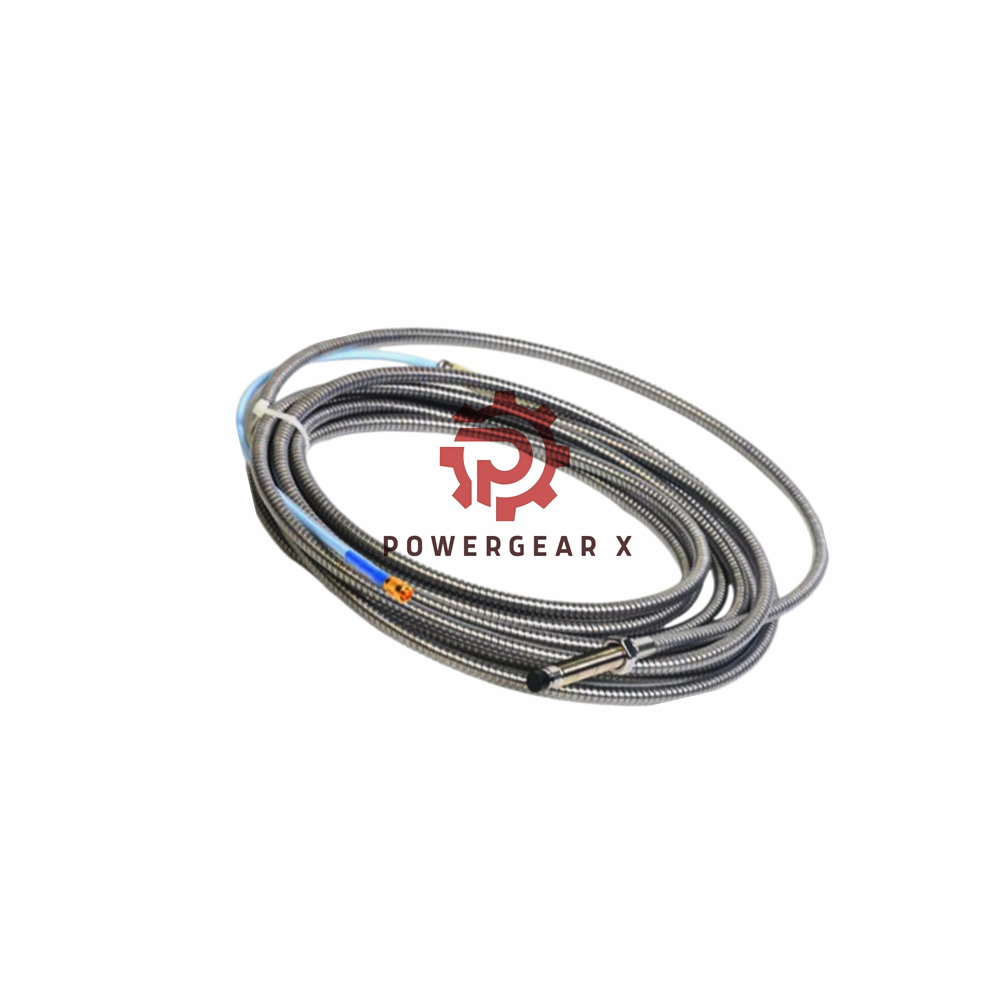

Bently Nevada 330190-035-01-05 | Armored ETR Extension Cable

🌐 Overview

The Bently Nevada 330190-035-01-05 is a high-performance 3300 XL Extended Temperature Range (ETR) Extension Cable, designed for reliability in extreme industrial environments. This extension cable ensures seamless connectivity between 3300 XL Proximity Sensors and monitoring systems, providing precise signal transmission and durability in high-temperature applications. With CSA, ATEX, and IECEx approvals, it meets stringent safety and quality standards, making it ideal for power plants, oil and gas facilities, and rotating machinery monitoring.

🔧 Technical Specifications

• Brand: Bently Nevada
• Model: 330190-035-01-05
• Cable Length: 3.5 meters (13.1 feet)
• Cable Type: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
• Connector Material: Gold-plated brass or gold-plated beryllium copper
• Max Connector Torque: 0.565 N•m (5 in•lbf)
• DC Resistance:
  • Center Conductor: 0.66 ± 0.10 Ω (for 3m cable)
  • Outer Conductor: 0.20 ± 0.04 Ω (for 3m cable)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), shielded triad cable recommended
• Max Field Wiring Length: 305 meters (1,000 feet)
• Linear Range: 2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils), output range approximately –1 to –17 Vdc
• Temperature Range:
  • Operating & Storage: -52°C to +260°C (-62°F to +500°F)
• Weight:
  • Armored Extension Cable: 103 g/m (1.5 oz/ft)

📦 Ordering Information

Each 3300 XL ETR Extension Cable comes with silicone tape for additional protection. However, silicone tape is not recommended for environments exposed to turbine oil.

• Cable Length Options:
  • 035 = 3.5 meters (13.1 feet)
• Cable Type Options:
  • 01 = Armored Cable
• Approval Options:
  • 05 = CSA, ATEX, IECEx certified

Example Ordering Code: 330190-035-01-05

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
