Bently Nevada 330190-035-01-CN | Armored ETR Extension Cable

Overview

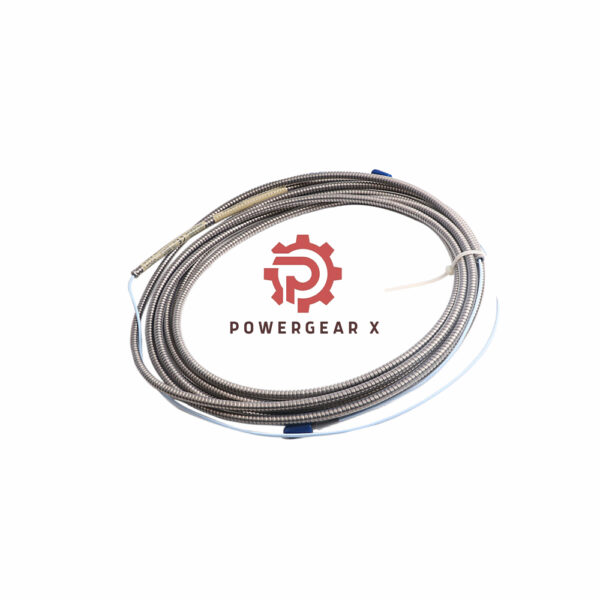

The Bently Nevada 330190-035-01-CN 3300 XL Extended Temperature Range (ETR) Extension Cable is engineered to perform in demanding industrial environments. Manufactured in the U.S.A., this extension cable is the optimal choice for users requiring durable, high-performance solutions. With a cable length option of 3.5 meters (13.1 feet) and armored protection, this product stands out in its category.

Technical Specifications

Brand and Model:

• Brand: Bently Nevada
• Model: 330190-035-01-CN
• Suffix Meaning:
  • 035: Cable length of 3.5 meters
  • 01: Armored cable option
  • CN: Chinese Country Specific Approval

Key Features:

• Material:
  • Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated.
  • Connector: Gold-plated brass or gold-plated beryllium copper.
• Weight:
  • Armored Extension Cable: 103 g/m (1.5 oz/ft)
• Operating Temperature Range:
  • -52°C to +260°C (-62°F to +500°F)
• DC Resistance:
  • Center Conductor to Center Conductor: 0.66 ± 0.10 Ω for 3.0 m
  • Outer Conductor to Outer Conductor: 0.20 ± 0.04 Ω for 3.0 m
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring Compatibility:
  • 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommend using 3 conductor shielded triad cable.
• Maximum Length:
  • Up to 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.

Ordering Information

The Bently Nevada 3300 XL ETR Extension Cable can be customized based on your specific needs. Choose from:

• Length: 3.5 meters (035)
• Cable Option: Armored (01)
• Approval: CN for Chinese markets

To ensure compatibility, remember to add the probe length to the extension cable length when placing your order.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
