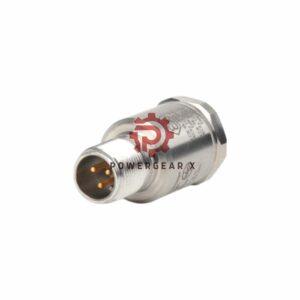

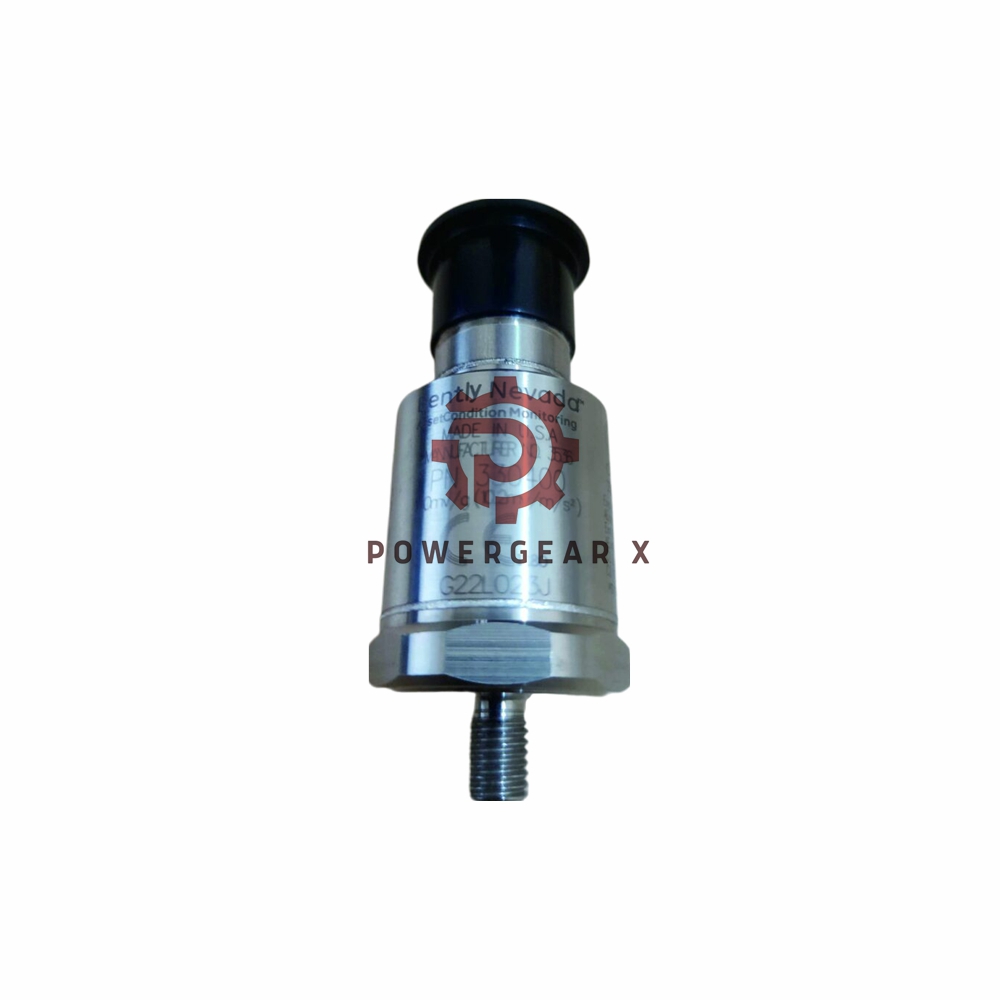

Bently Nevada 330400-02-RU | 330400 Linear Transducer

Key Features

• High Sensitivity: The accelerometer has a sensitivity of 10.2 mV/m/s² (100 mV/g) ±5%.
• Extensive Acceleration Range: It can measure acceleration ranges up to 490 m/s² (50 g) peak, suitable for a frequency span of 10 Hz to 15 kHz.
• Temperature Stability: Features a typical sensitivity variation of -11% to +3% across its operational temperature range.
• Minimal Transverse Sensitivity: Less than 5% of axial sensitivity, enhancing measurement accuracy.
• Robust Design: Made from 316L stainless steel, ideal for harsh conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330400-02-RU
• Sensitivity: 10.2 mV/m/s² (100 mV/g) ±5%
• Acceleration Range: 490 m/s² (50 g) peak
• Frequency Response:
  • 10 Hz to 15 kHz (±3dB)
  • 30 Hz to 10 kHz (±10%)
• Broadband Noise Floor: 0.039 m/s² (0.004 g) rms
• Transverse Sensitivity: < 5% of axial
• Mounted Resonant Frequency: > 30 kHz
• Amplitude of Resonant Peak: 20 dB maximum
• Weight: Typical 100 g (3.5 oz)
• Dimensions: Diameter: 23 mm (0.93 in), Height: 59 mm (2.3 in) including mounting stud
• Connector: 3-pin MIL-C-5015 Receptacle
• Mounting Torque: 4.1 N·m (3.0 ft·lb)
• Mounting Surface: Roughness of 32 microinches rms
• Mounting Thread Option: 0 2 M8 X 1 integral stud
• Agency Approval Option: RU – Country Specific
• Mounting Angle: Any orientation

FAQ

1. What is the sensitivity range of the Bently Nevada 330400-02-RU?
   • The device has a sensitivity of 10.2 mV/m/s² (100 mV/g) ±5%.
2. What is the maximum acceleration it can measure?
   • It can measure acceleration up to 490 m/s² (50 g) peak.
3. Is this accelerometer suitable for all orientations?
   • Yes, it can be mounted at any orientation.
4. What materials are used in its construction?
   • The accelerometer is made from 316L stainless steel, ensuring durability and resistance to corrosion.
5. What connector type does it use?
   • The accelerometer features a 3-pin MIL-C-5015 receptacle.

For more detail information: 330400 and 330425 Accelerometer Acceleration Transducers Datasheet
