Product details
Overview

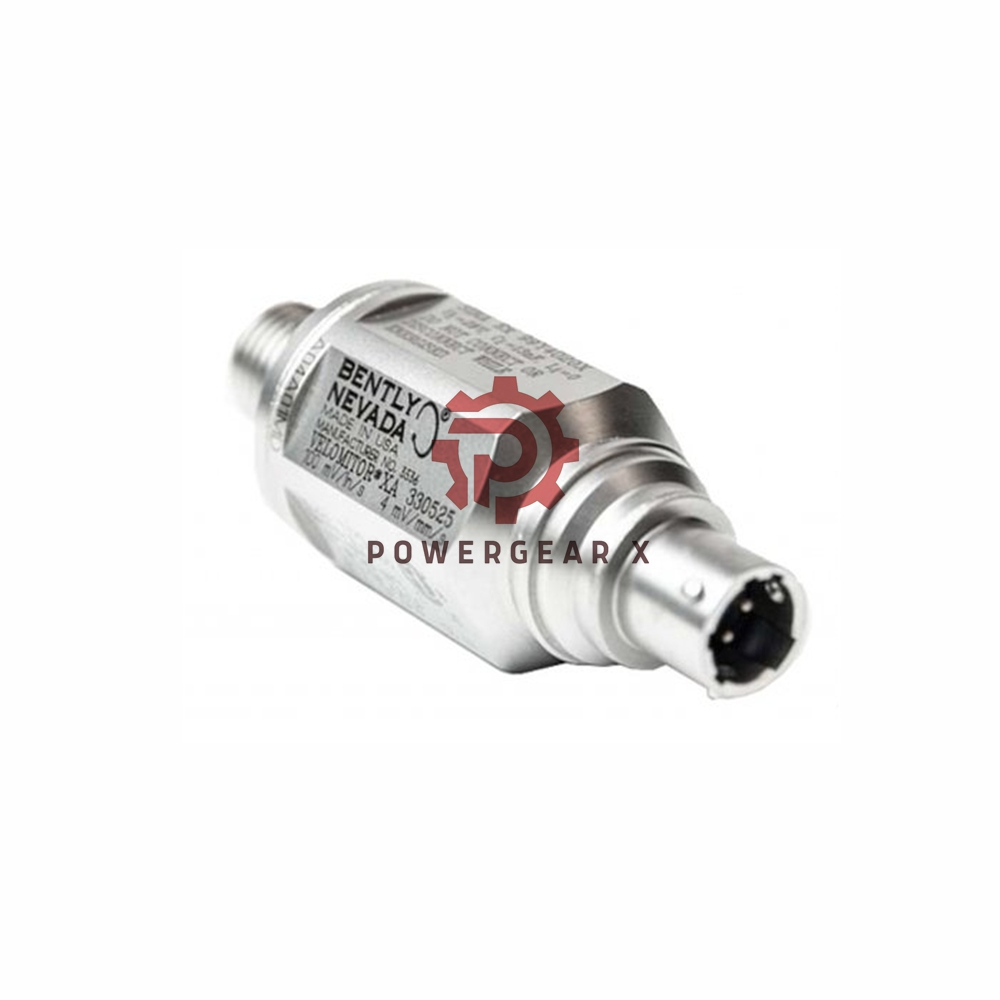

The Bently Nevada 330500-04-04 Velomitor is a high-performance piezo-velocity sensor designed for extreme industrial environments. Manufactured in the U.S.A, this robust sensor ensures superior performance with its hermetically sealed 2-pin Mil-C-5015 connector, stainless steel construction, and wide operating temperature range.
Features
- Connector: Equipped with a 2-pin Mil-C-5015 hermetically sealed connector, encased in a 316L stainless steel shell.
- Mounting Thread Adapter Option: 04=1/4 – 20 UNC, ensuring compatibility with a range of mounting setups.
- Agency Approval: Option 04, covering multiple approvals including CSA and ATEX.
- Operating Temperature Range: Designed to function within -55°C to 121°C (-67°F to 250°F).
- Shock Survivability: Capable of withstanding up to 5,000 g peak.
- Relative Humidity: Operates effectively in 100% non-submerged environments, thanks to its hermetically sealed case.
- Base Strain Sensitivity: Maintains a sensitivity of 0.005 in/s/mstrain.
- Magnetic Field Susceptibility: Less than 51 min/s/gauss (50 gauss, 50-60Hz).
Technical Specifications
- Height: 63.2 mm (2.49 in)
- Diameter: 25.3 mm (0.995 in)
- Mounting Torque: 46 kg cm (40 in-lb) max
- Material: Constructed with 316L stainless steel for both case and connector shell
- Origin: Manufactured in the U.S.A, with the option to add a Certificate Of Origin (COO)
Model & Suffix Meaning
- Model: 330500-04-04
- Suffix 04: Indicates specific options such as 1/4 – 20 UNC mounting thread adapter and multiple agency approvals (CSA, ATEX).
FAQs
- What is the significance of the suffix “04”?
- The suffix “04” denotes the 1/4 – 20 UNC mounting thread adapter and multiple agency approvals.
- Can a Certificate Of Origin (COO) be added?
- Yes, a Certificate Of Origin can be added upon request.
- What is the magnetic field susceptibility?
- The sensor has a magnetic field susceptibility of less than 51 min/s/gauss (50 gauss, 50-60Hz).
For more detail information: 330500-Datasheet
