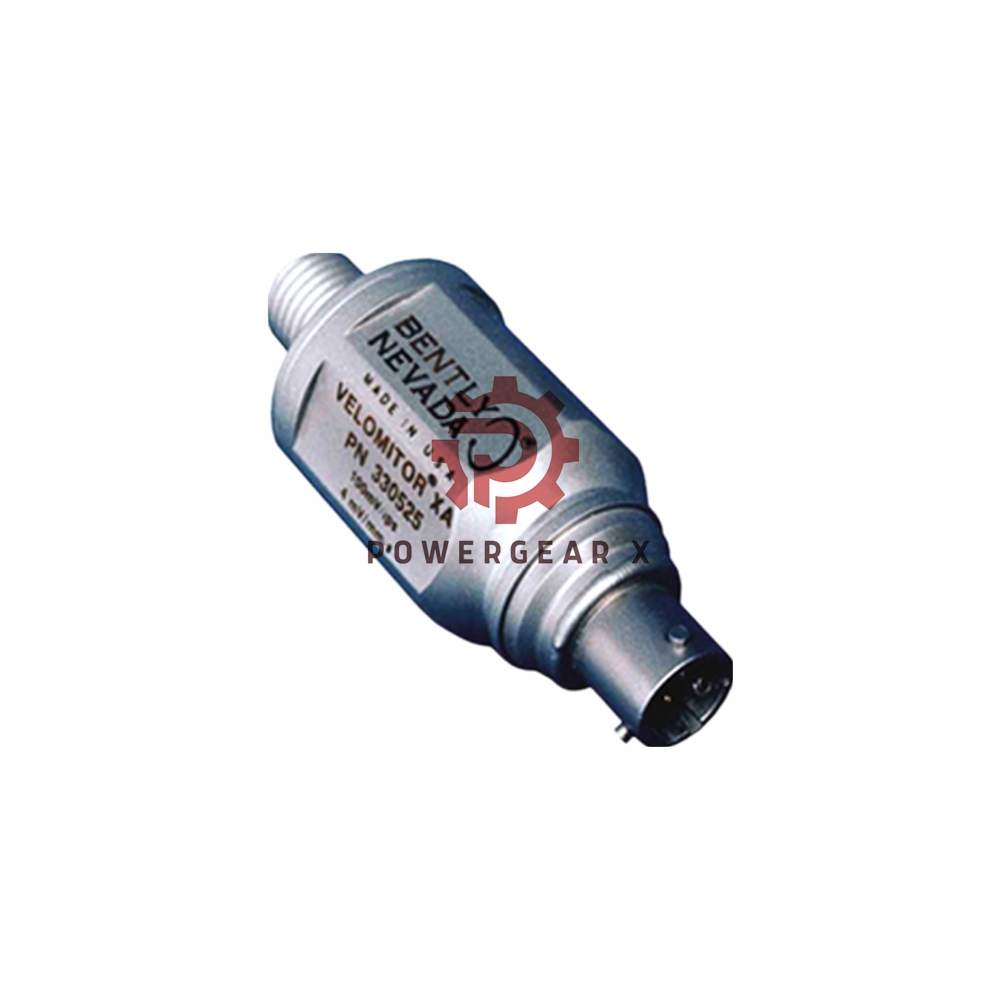

Bently Nevada 330525-CN | Velomitor XA Piezo-velocity Sensor

Overview

The Bently Nevada 330525-CN Velomitor XA is a high-performance vibration sensor designed for industrial applications requiring precise vibration measurements. This model is particularly known for its robustness and reliable performance in harsh environments.

Technical Specifications

• Brand/Model: Bently Nevada 330525-CN Velomitor XA
• Agency Approval: CN suffix indicates country-specific approvals.
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Case Material: 316L stainless steel

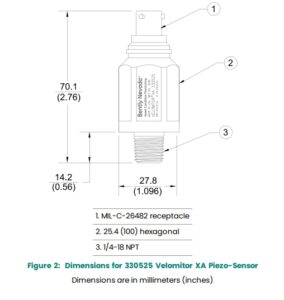

• Dimensions:
  • Diameter: 28 mm (1.1 in)
  • Height: 73.1 mm (2.88 in)
• Weight: 156 g (5.5 oz), typical
• Connector Type: 2-pin Mil-C-26482, hermetically sealed
• Mounting Torque: Maximum 45 N-m (33 ft-lb)
• Operating Temperature: -55 °C to +121 °C (-67 °F to +250 °F)
• Shock Survivability: 5000 g peak
• Relative Humidity: Up to 100%, non-submerged
• Magnetic Field Susceptibility: <51 min/s/gauss

FAQ

Q1: What does the “CN” suffix in the model number represent?
A: It indicates country-specific agency approvals for the sensor.

Q2: Can 330525-CN sensor operate in extreme temperatures?
A: Yes, it functions effectively between -55 °C and +121 °C (-67 °F to +250 °F).

Q3: Is the sensor resistant to shocks?
A: Absolutely, it has a maximum shock survivability of 5000 g peak.

Q4: What is the minimum cable bend radius?
A: The cable requires a minimum bend radius of 1.5 inches.

Q5: Does it work in humid environments?
A: Yes, the hermetically sealed case ensures performance in up to 100% relative humidity.

For more detail information: 330525-datasheet
