Bently Nevada 330850-50-05 25 mm Proximitor Sensor

Overview

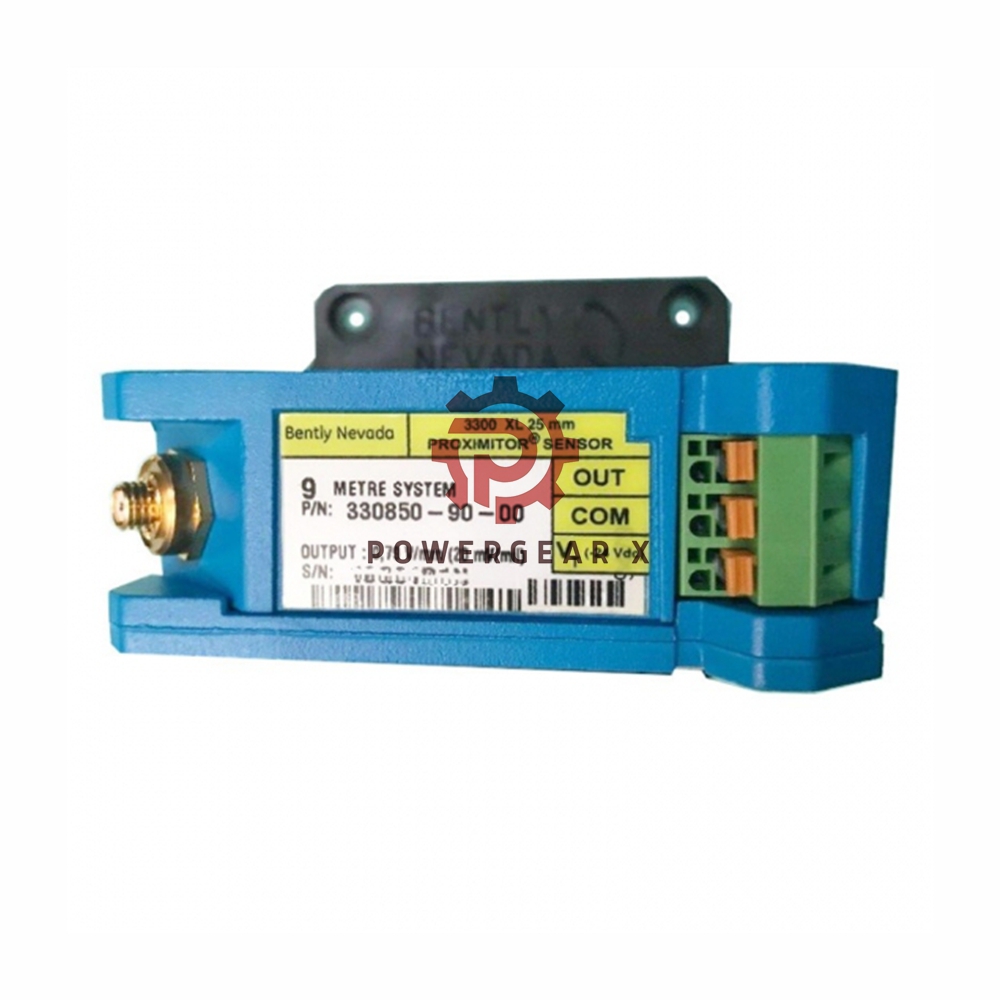

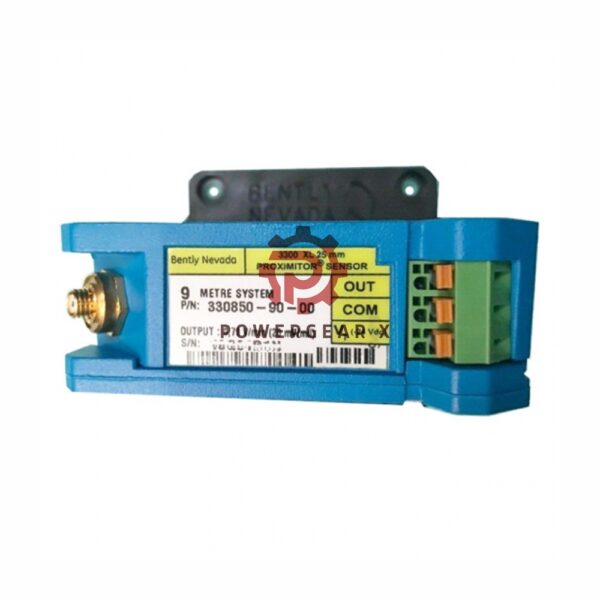

The Bently Nevada 3300 XL 25 mm Proximitor Sensor (Model No. 330850-50-05) is a high-precision measurement device designed for monitoring the differential expansion between turbine rotors and stators in mid-sized to large steam turbine generators. This sensor system features a robust design and is made in the USA, ensuring high reliability and performance.

Features

• Linear Measurement Range: The sensor provides a linear range of 12.7 mm (500 mils) with an output of 0.787 V/mm (20 mV/mil).
• System Components: Comprises a 25 mm probe, an extension cable, and the proximitor sensor, all engineered for accurate measurement.
• Mounting Options: Designed for panel mounting with a system length of 5.0 meters (16.4 feet).
• Multiple Approvals: The product comes with various agency approvals, confirming its compliance with industry standards.
• Certificate of Origin: Available upon request to verify the product’s origin.

Technical Specifications

• Brand: Bently Nevada
• Model: 330850-50-05
• Product Type: 3300 XL 25 mm Proximitor Sensor
• Suffix Meaning:
  • 50: Represents a total system length of 5.0 meters (16.4 feet), panel mount.
  • 05: Indicates multiple agency approvals.
• Application: Primarily used for measuring differential expansion in steam turbine generators.

FAQ

1. What is the primary application of the Bently Nevada 330850-50-05 sensor?
   It is mainly used in steam turbine generators to monitor differential expansion.
2. What does the suffix “05” signify?
   It indicates that the sensor has multiple agency approvals, ensuring global compliance.

For more detailed information: 3300-XL-25MM-Datasheet
