Overview:

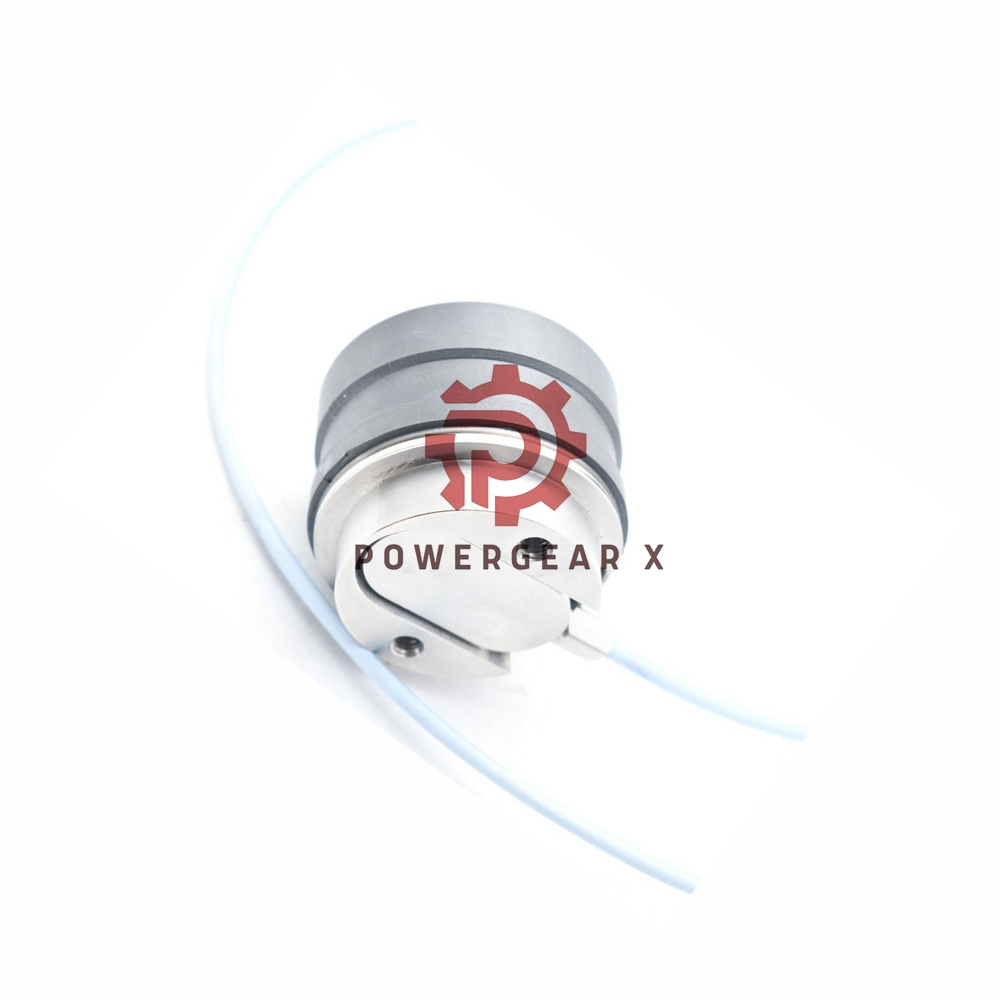

The Bently Nevada 3300 XL 50 mm Proximity Probe (Part No. 330876-02-50-00-00) is designed to provide reliable performance in high-temperature environments, especially for steam turbine applications. It is ideal for use in harsh conditions, offering exceptional durability, accuracy, and sealing against moisture. This probe features a high-temperature FluidLoc cable, ensuring it can withstand operating temperatures up to 200Ā°C (392Ā°F) and short-term exposure to 250Ā°C (482Ā°F). It uses advanced sealing technology with Viton O-rings to maintain precision even in extreme conditions.
Features:
- High-Temperature FluidLoc cable for robust protection.
- Dual seals (front and rear) to prevent moisture ingress.
- ClickLoc connectors for easy installation and secure connection.
- Available in both straight exit and side exit probe styles.
- M14x1.5 threaded probe case for secure mounting.
- Viton O-rings ensure a reliable seal under differential pressure.
- Designed for use in steam turbine DE environments.
- Comes with connector protectors and installation tools.
Technical Specifications:
- Brand: Bently Nevada
- Part Number: 330876-02-50-00-00
- Thread Option: M14x1.5
- Length: 5.0 meters (16.4 feet)
- Armor Option: High-Temperature FluidLoc Cable
- Agency Approval: None
- Weight: 0.59 kg
- Power Supply: -17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers)
- Linear Range: 27.9 mm (1100 mils), starts at approximately 1.3 mm (50 mils) from target
- Output Resistance: 50 ā¦
- Capacitance: 69.9 pF/m (21.3 pF/ft)
- Extension Cable Material: 75 ā¦ triaxial, PFA insulated FluidLoc cable
- Recommended Minimum Target Size: 102 mm (4.0 in) diameter (flat target)
- Scale Factor: 394 mV/mm (10 mV/mil) nominal
- Deviation from Best Fit: Ā±0.74 mm (Ā±29 mils)
- System Performance Temperature: Probe temperature range -35Ā°C to +120Ā°C (-31Ā°F to +248Ā°F); Proximitor Sensor and extension cable between 0Ā°C to +45Ā°C (+32Ā°F to +113Ā°F)
- Linear Range Voltage: Approximately ā1.5 to ā12.5 Vdc
FAQ:
- What is the maximum temperature the 3300 XL 50 mm probe can withstand?
It can handle continuous operation at temperatures up to 200Ā°C (392Ā°F), with brief exposure to 250Ā°C (482Ā°F). - What kind of cable does the probe use?
The probe uses a high-temperature FluidLoc cable, specifically designed for durability in extreme conditions. - What type of thread does this probe have?
The probe features an M14x1.5 thread option. - Can I use this probe for other machinery types?
While designed for steam turbines, the probe is versatile and can be used in other high-temperature applications where precision measurement is needed.
For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
