Bently Nevada | 330880-16-00-045-00-02 Proximity Transducer

Overview

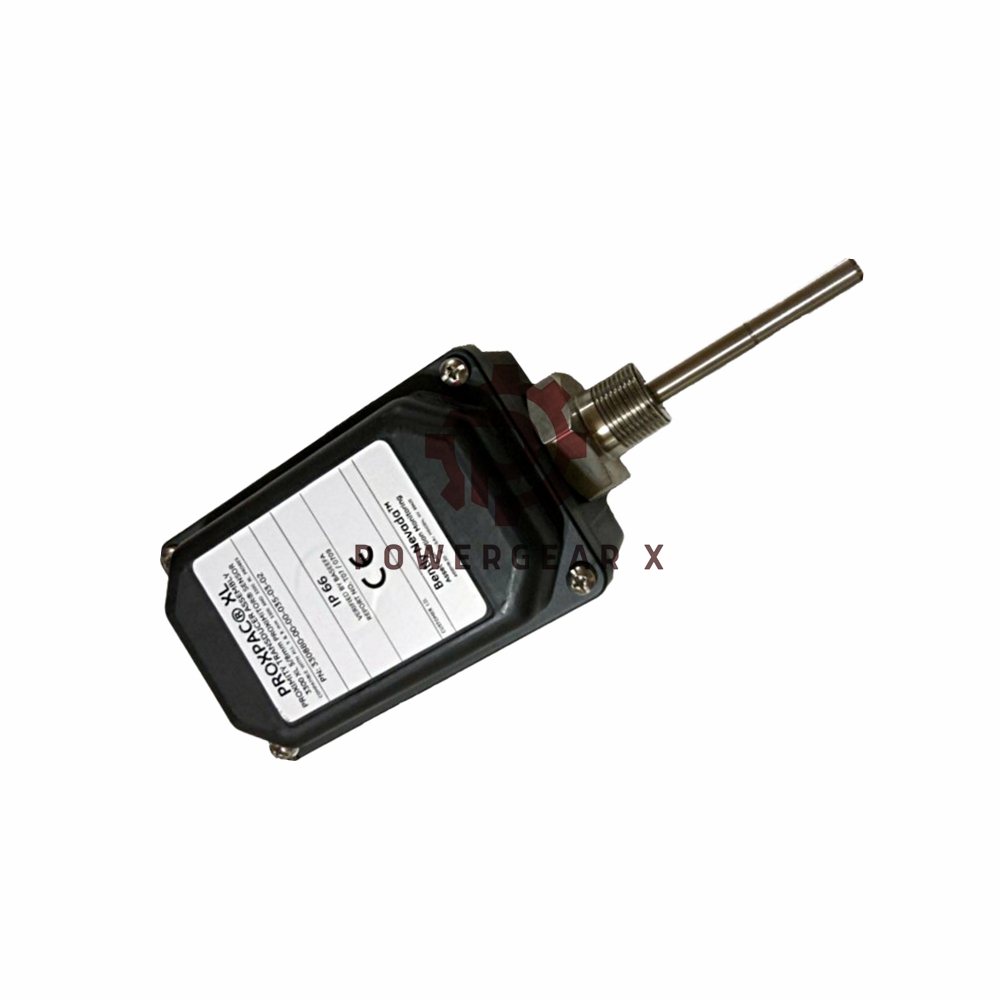

The Bently Nevada PROXPAC XL Proximity Transducer Assembly (Model: 330880-16-00-045-00-02) is a robust, all-in-one proximity probe system. It integrates the 3300 XL Proximitor sensor directly within its durable housing, eliminating the need for separate Proximitor housings and extension cables. Designed for harsh environments, it meets Type 4X and IP66 standards for superior protection.

Features

1. Integrated Design: Combines proximity probe and Proximitor sensor in a single unit.
2. Advanced Material: Constructed with Polyphenylene Sulfide (PPS) for enhanced durability and electrostatic charge dissipation.
3. Direct Field Wiring: Simplifies installation by eliminating extension cables and separate housings.
4. Environment Resistant: Rated for IP66 and Type 4X, ensuring reliability in extreme conditions.
5. Wide Operational Range: Operates from -17.5 Vdc to -26 Vdc without barriers, providing consistent performance.

Technical Specifications

• Brand: Bently Nevada
• Model: 330880-16-00-045-00-02
• Probe and Approvals Option (16): 3300 XL 8 mm probe without approvals.
• Standoff Adapter Option (B): 00 – No standoff adapter.
• Probe Penetration Option (C): 045 – 4.5 inches.
• Fittings Option: 00 – Includes two plugs and washers, no fittings.
• Mounting Thread Option: 02 – 3/4-14 NPT.
• Electrical: Operates at -23 to -26 Vdc with barriers, <12 mA current consumption.
• Housing Material: PPS with glass and conductive fibers for strength and charge dissipation.
• Weight: 1.44 kg.
• Probe Input: Compatible with 3300 XL 8 mm Proximity Probe (1-meter cable).

FAQ

1. What is the meaning of the suffix in the model number?
The suffix includes detailed options:

• 16: 3300 XL 8 mm probe without approvals.
• 045: Probe penetration of 4.5 inches.
• 02: 3/4-14 NPT mounting thread.

2. Can it be used with other probes?
No, the PROXPAC XL is optimized for use with 3300 XL 8 mm proximity probes only.

3. What environments can it operate in?
It is rated for severe environments with Type 4X and IP66 protection.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
