Bently Nevada | 330880-16-40-037-03-02 Proximity Transducer

Overview

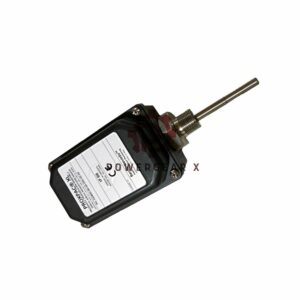

The Bently Nevada PROXPAC XL Proximity Transducer (Part Number: 330880-16-40-037-03-02) is a self-contained proximity probe system designed to streamline vibration monitoring in industrial applications. This robust assembly integrates the 3300 XL Proximitor sensor within its advanced thermoplastic housing, eliminating the need for separate Proximitor housings or extension cables. With its IP66 and Type 4X ratings, it ensures durability and reliability in harsh environments.

Features

• Integrated Design: Combines the 3300 XL 8 mm proximity probe and Proximitor sensor in a single housing.
• Advanced Housing Material: Made of Polyphenylene Sulfide (PPS) with glass and conductive fibers for superior strength and electrostatic charge dissipation.
• Simplified Wiring: Direct field wiring connection to monitors eliminates the need for additional housings or extension cables.
• Environmental Protection: Rated for Type 4X and IP66, ensuring performance in extreme conditions.
• Impact Strength: Certified to withstand impacts at extreme temperatures, providing added reliability.

Applications

• Used in vibration and position monitoring systems for rotating machinery.
• Ideal for industries such as power generation, oil and gas, petrochemical, and manufacturing.
• Suited for environments requiring robust, low-maintenance monitoring solutions.

Technical Specifications

• Brand/Model: Bently Nevada PROXPAC XL (330880-16-40-037-03-02)
• Probe: 3300 XL 8 mm without approvals (Suffix “16”).
• Standoff Adapter (B Dimension): 4.0 inches (Suffix “40”).
• Probe Penetration (C Dimension): 3.7 inches (Suffix “037”).
• Mounting Thread: 3/4-14 NPT (Suffix “02”).
• Weight: 1.44 kg
• Power Supply: -17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers).
• Frequency Response: 0 to 10 kHz (+0, -3 dB).
• Target Requirements: Minimum diameter 15.2 mm (flat target), recommended shaft diameter 76.2 mm.
• Environmental Ratings: Certified for -39°C to 115°C operation.
• Housing Strength: Supports 912 N load with minimal deformation.

FAQ

Q: What industries can benefit from the PROXPAC XL?
A: Industries like oil and gas, power generation, and manufacturing that rely on precise vibration monitoring.

Q: What makes the PROXPAC XL unique?
A: Its integrated design eliminates the need for separate Proximitor housings and extension cables.

Q: Can it handle extreme environments?
A: Yes, the housing is rated for IP66 and Type 4X, with certifications for operation at temperatures from -39°C to 115°C.

Q: What type of mounting threads does it support?
A: The PROXPAC XL supports 3/4-14 NPT threads.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
