Bently Nevada 330880-28-15-089-03-02 | Proximity Transducer

Overview

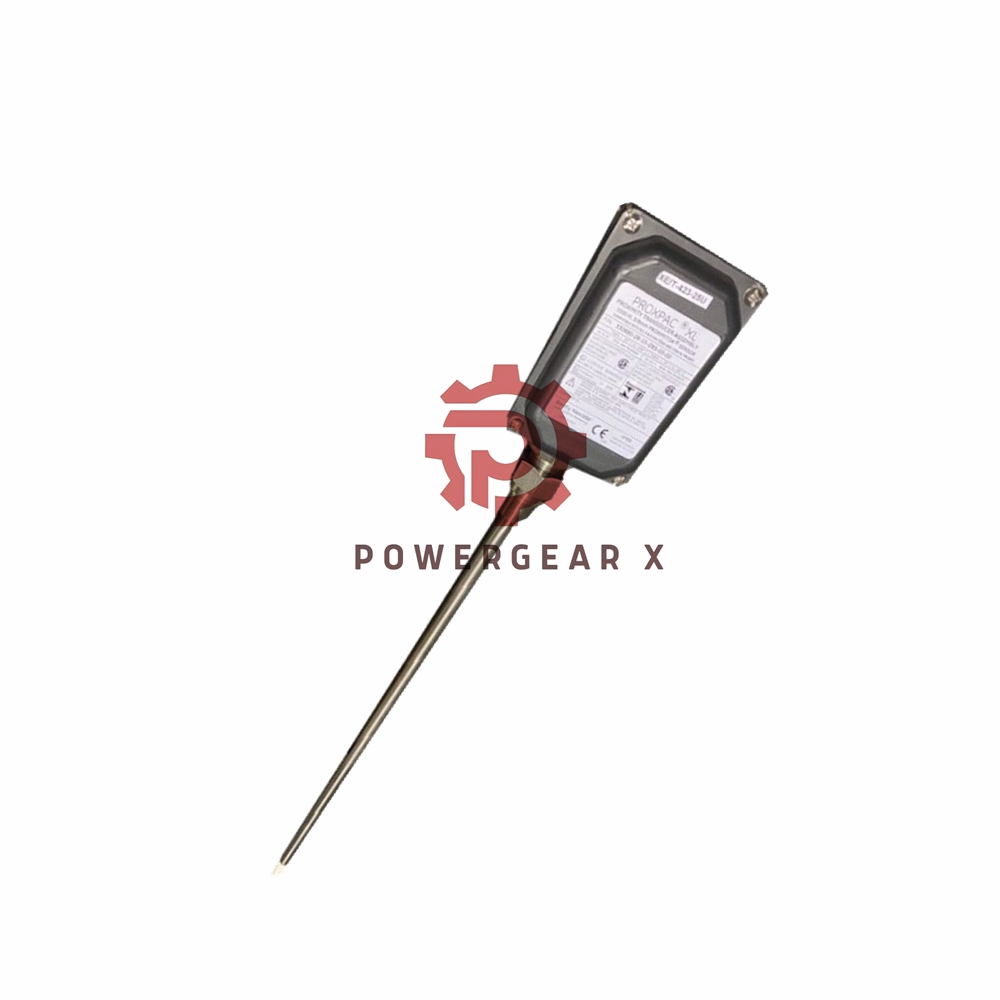

The Bently Nevada 330880-28-15-089-03-02 PROXPAC XL Proximity Transducer is a self-contained proximity probe system that integrates both the probe and the 3300 XL Proximitor sensor into a single housing. Unlike traditional setups that require an extension cable between the probe and Proximitor sensor, this design eliminates that need, streamlining the system and reducing installation complexity. Constructed from Polyphenylene Sulfide (PPS), the housing offers enhanced durability and electrostatic dissipation capabilities, making it ideal for harsh industrial environments. Rated for Type 4X and IP66, it provides superior protection against dust and water ingress.

Key Features

• Integrated Proximitor Sensor: Combines the proximity probe and the Proximitor sensor in one housing.
• Material: Made from Polyphenylene Sulfide (PPS), which is enhanced with glass and conductive fibers.
• Environmental Protection: Rated for Type 4X and IP66 environments, offering superior durability.
• Self-contained System: No need for extension cables or separate Proximitor housings.
• Robust Impact Resistance: Certified to withstand 4 Joule impacts at both high and low temperatures.

Technical Specifications

• Model: 330880-28-15-089-03-02
• Brand: Bently Nevada
• Probe Type: 3300 XL 8 mm with multiple approvals
• Standoff Adapter: 15 = 1.5 in (B Dimension)
• Probe Penetration: 089 = 8.9 in (C Dimension)
• Fittings: Includes one 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, and two plugs.
• Mounting Thread: 02 = 3/4-14 NPT
• Weight: 1.44 kg
• Sensor Input: 3300 XL 8 mm proximity probe with 1-meter cable.
• Power: Requires -17.5 Vdc to -26 Vdc, 12 mA max consumption, or -23 Vdc to -26 Vdc with barriers.
• Output Resistance: 50 Ω
• Resistance (RPROBE): 7.59 Ω ± 0.50 for 1-meter probe.
• Frequency Response: 0 to 10 kHz with up to 305 meters (1000 feet) of field wiring.
• Target Size: Minimum 15.2 mm (0.6 in) diameter, flat target.
• Shaft Diameter: Minimum 50.8 mm (2.0 in), recommended 76.2 mm (3.0 in).
• Retaining Nut Torque: 29.5 N·m (260 in·lb)
• Impact Strength: Certified to withstand 4 Joule impacts at -39°C and 115°C.

FAQ

1. What is the power requirement for the PROXPAC XL?
   • The PROXPAC XL requires a power supply between -17.5 Vdc to -26 Vdc, with a maximum current consumption of 12 mA.
2. What environmental protection rating does this product have?
   • The PROXPAC XL is rated IP66 and Type 4X, ensuring protection from dust, water, and harsh industrial conditions.
3. What is the minimum target size for use with the PROXPAC XL?
   • The minimum target size for the PROXPAC XL is 15.2 mm (0.6 in) in diameter for a flat target.
4. Can the PROXPAC XL be used in extreme temperatures?
   • Yes, the housing is certified to withstand impacts in temperatures ranging from -39°C to 115°C.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
