Bently Nevada | 330881-01-00-000-00-02 Proximity Transducer

Overview

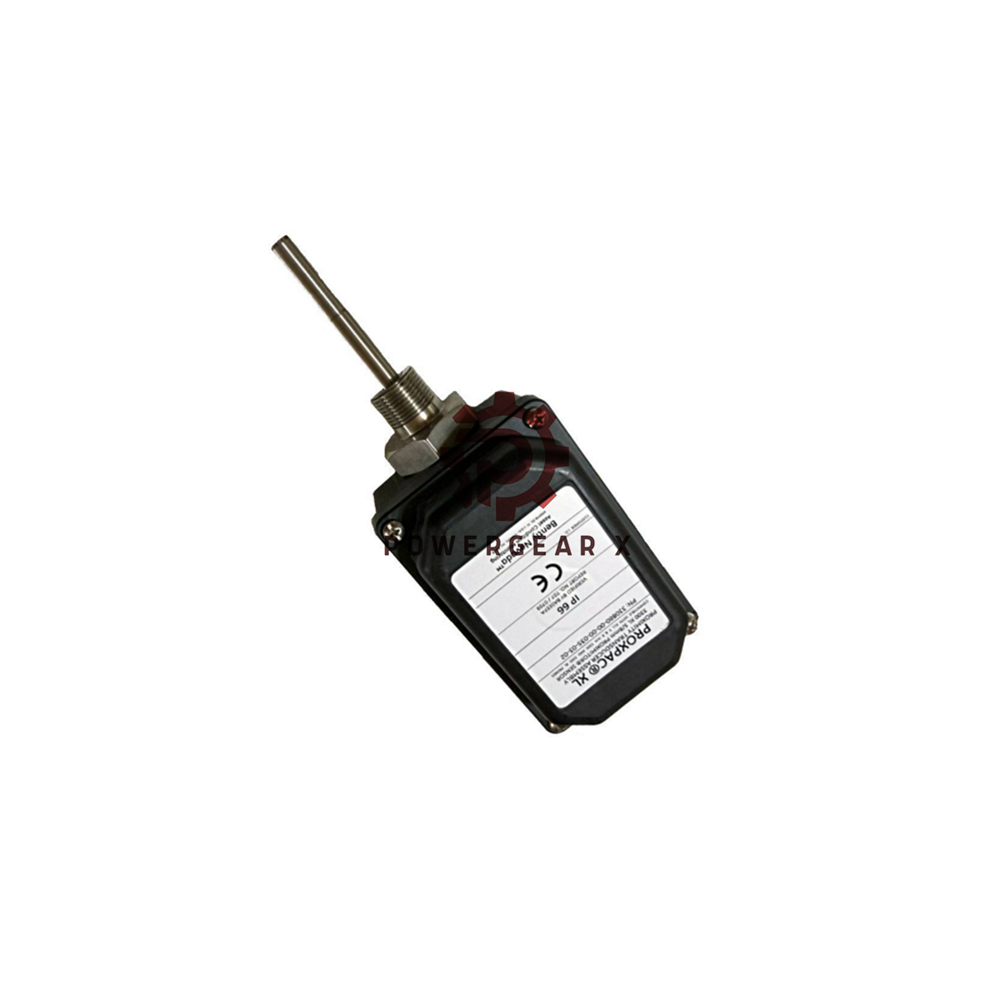

The Bently Nevada 330881-01-00-000-00-02 PROXPAC XL Proximity Transducer is specifically designed for precise vibration monitoring and position measurement in industrial applications. Made in the U.S.A, this device is suited for various environments and offers advanced technical features.

Technical Specifications

• Brand: Bently Nevada
• Model: 330881-01-00-000-00-02
• Product Type: PROXPAC XL Proximity Transducer
• Weight: 1.44 kg
• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F)
• Power Requirements:
  • -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
  • -23 Vdc to -26 Vdc with barriers
• Output Resistance: 50 Ω
• Field Wiring Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• Linear Range: 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target.
• Recommended Gap Setting: 1.27 mm (50 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
• Frequency Response: 0 to 10 kHz: +0, -3 dB
• Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
• Shaft Diameter Minimum: 50.8 mm (2.0 in)

Material and Construction

• Housing Material: UV-resistant glass-reinforced polyphenylene sulfide (PPS) thermoplastic
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Connector: Gold-plated brass ClickLoc™ connector
• Cable: 1-meter length, 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• O-Ring Material: Neoprene

Ratings and Approvals

• IP Rating: IP66, verified by BASEEFA report number T07/0709.
• Impact Strength: Certified to withstand two separate 4 Joule impacts at -39°C and at 115°C.

FAQs

• Q: What is the maximum operating temperature for the 330881-01-00-000-00-02?
  A: The maximum operating temperature is +177 °C (+350 °F).
• Q: How long can the field wiring be?
  A: The maximum length is 305 meters (1,000 feet) from the sensor to the monitor.
• Q: What type of applications is this proximity transducer suitable for?
  A: It is suitable for industrial applications, including vibration monitoring in rotating equipment.
• Q: What is the incremental scale factor for this device?
  A: The incremental scale factor is 7.87 V/mm (200 mV/mil) ±5%.
• Q: How can it withstand impacts?
  A: The housing is certified to withstand impacts up to 4 Joules at varying temperatures.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
