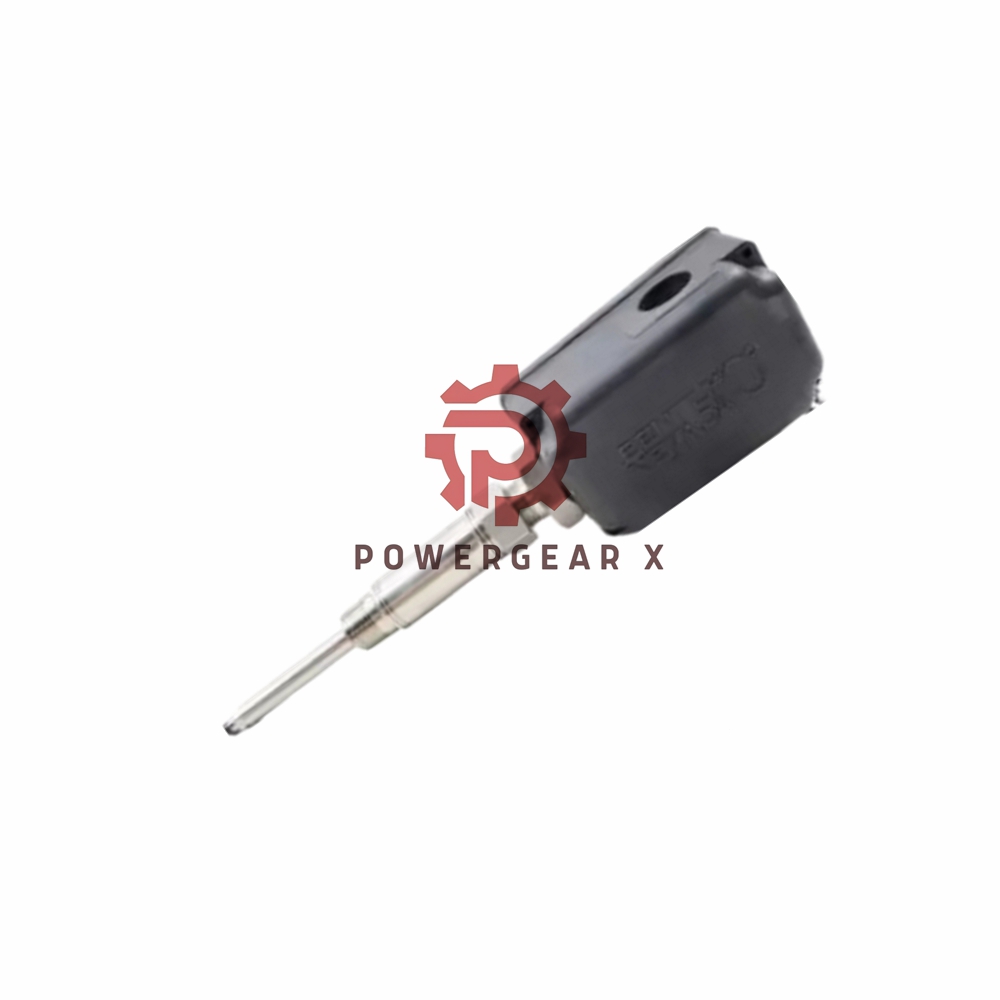

Bently Nevada 330881-28-04-145-03-02 | Proximity Transducer

Overview

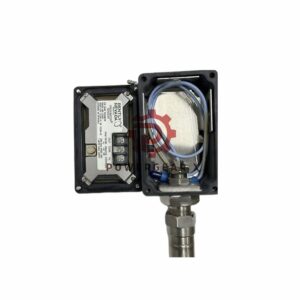

The Bently Nevada 330881-28-04-145-03-02 PROXPAC XL Proximity Transducer Assembly offers a self-contained proximity probe system designed for industrial applications. With advanced features and high protection standards, it is an ideal solution for harsh environments.

Key Features:

• Self-Contained Design: Integrates the 3300 XL Proximitor sensor into the housing, eliminating the need for external sensors and cables.
• Material: Made of Polyphenylene Sulfide (PPS), reinforced with glass and conductive fibers for enhanced durability and electrostatic dissipation.
• Protection Rating: Rated for Type 4X and IP66, ensuring resistance to severe environmental conditions.
• Mounting Thread: Includes a 3/4-14 NPT mounting thread option for easy installation.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330881-28-04-145-03-02 PROXPAC XL
• Probe Type: 3300 XL 8 mm with Multiple Approvals
• Standoff Adapter: 40 mm (Option 04)
• Probe Penetration: 145 mm (Option 145)
• Fittings: Includes one M20 fitting and two plugs
• Weight: 1.44 kg
• Power Supply: Requires -17.5 Vdc to -26 Vdc, with a maximum current consumption of 12 mA.
• Nominal Probe DC Resistance: 7.59 ± 0.50 Ω (1-meter probe length)
• Frequency Response: 0 to 10 kHz with up to 305 meters of field wiring.
• Minimum Target Size: 15.2 mm (0.6 in) diameter flat target
• Shaft Diameter: Minimum 50.8 mm (2.0 in), recommended 76.2 mm (3.0 in)

FAQ:

Q1: What is the power supply requirement for the PROXPAC XL assembly?
A1: The PROXPAC XL requires a power supply of -17.5 Vdc to -26 Vdc, consuming a maximum of 12 mA without barriers.

Q2: Can the PROXPAC XL be used in high-vibration environments?
A2: Yes, the PROXPAC XL is designed for harsh industrial environments, including high-vibration settings, and provides excellent protection with a Type 4X and IP66 rating.

Q3: What is the mounting thread for the PROXPAC XL assembly?
A3: The assembly features a 3/4-14 NPT mounting thread (Option 02).

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
