Bently Nevada 330881-28-10-112-03-02 | Proximity Transducer

Overview

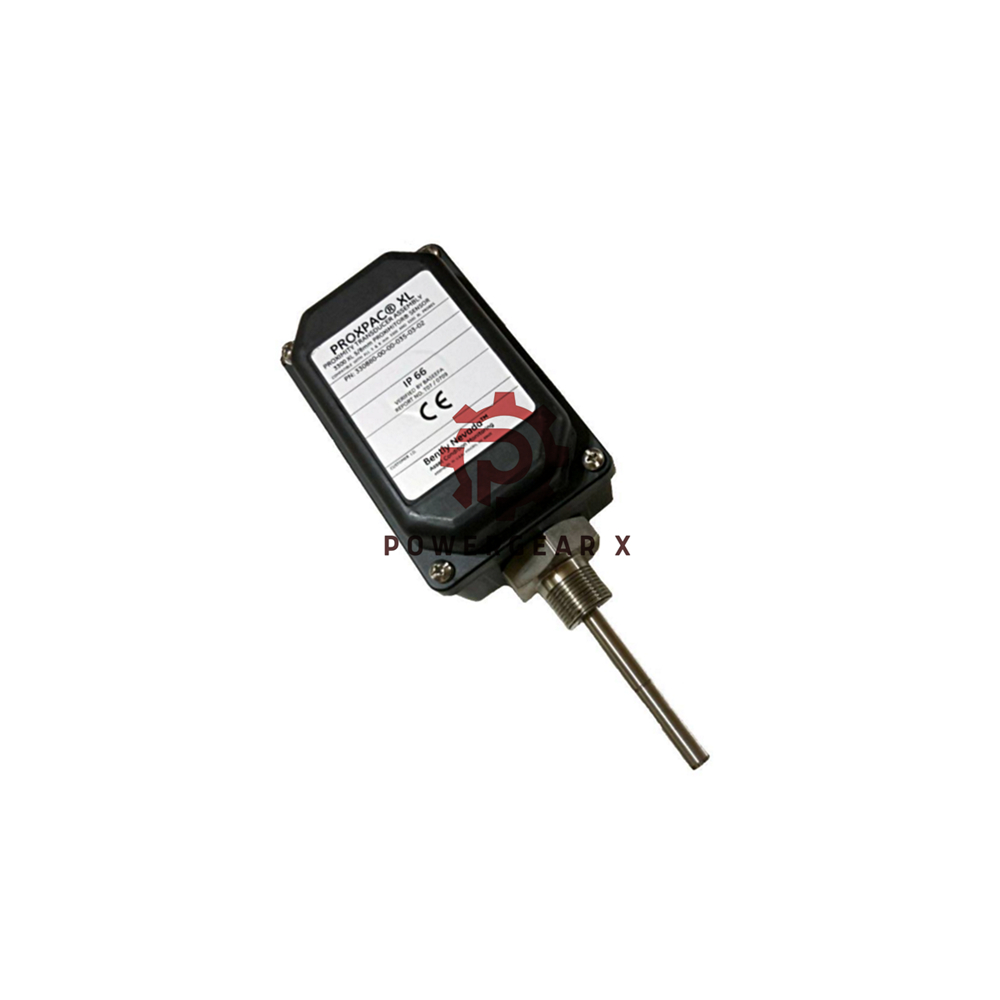

The Bently Nevada 330881-28-10-112-03-02 is a high-performance proximity transducer designed for precise measurement in various industrial applications. Manufactured in the USA, it comes with a Certificate of Origin (COO). This state-of-the-art product is suitable for environments that demand durability and accuracy.

Technical Specifications

• Brand: Bently Nevada
• Product Model: 330881-28-10-112-03-02
• Product Type: PROXPAC XL Proximity Transducer
• Weight: 1.44 kg (3.2 lb)

Options and Features

• Probe and Approvals Option:
  • 28: 3300 XL 8 mm probe with multiple approvals.
• Standoff Adapter Option (B Dimension):
  • 10: 100 mm (3.94 in).
• Probe Penetration Option (C Dimension):
  • 112: 112 mm (4.41 in).
• Fittings Option:
  • 0 3: One M20 fitting, two plugs.
• Mounting Thread Option:
  • 02: 3/4-14 NPT (required for Standoff Adapter).

Mechanical Properties

• Housing Material:
  • UV-resistant glass-reinforced polyphenylene sulfide (PPS).
• Probe Tip Material:
  • Polyphenylene Sulfide (PPS).
• Probe Case Material:
  • AISI 304 stainless steel.
• Probe Cable:
  • 1-meter length, 75 Ω triaxial, FEP insulated.
• Tensile Strength:
  • 330 N (75 lb) maximum between probe cable and case.
• Impact Strength:
  • Certified to withstand impacts of 4 Joules (5.4 ft·lb) at extreme temperatures.

Environmental Limits

• Operating Temperature Range:
  • -51 °C to +177 °C (-60 °F to +350 °F).
• Frequency Response:
  • 0 to 10 kHz, with signal roll-off considerations for longer wiring lengths.

FAQ

1. What is the significance of the “28” in the model number?
   This refers to the probe type, indicating a 3300 XL 8 mm probe equipped with multiple approvals.
2. Can the transducer function at extreme temperatures?
   Yes, it operates effectively within a temperature range of -51 °C to +177 °C.
3. What type of cable is recommended for field wiring?
   A 3-conductor shielded triaxial cable is advisable for optimal performance.
4. What are the certification standards?
   The housing is certified for IP66 rating and withstands specified impact tests at extreme temperatures.
5. How can I ensure proper mounting of the transducer?
   Refer to the torque specifications for the retaining nut and locknut to securely mount the device.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
