Bently Nevada | 330930-040-04-00 3300 XL 8mm Proximity Probe

Overview

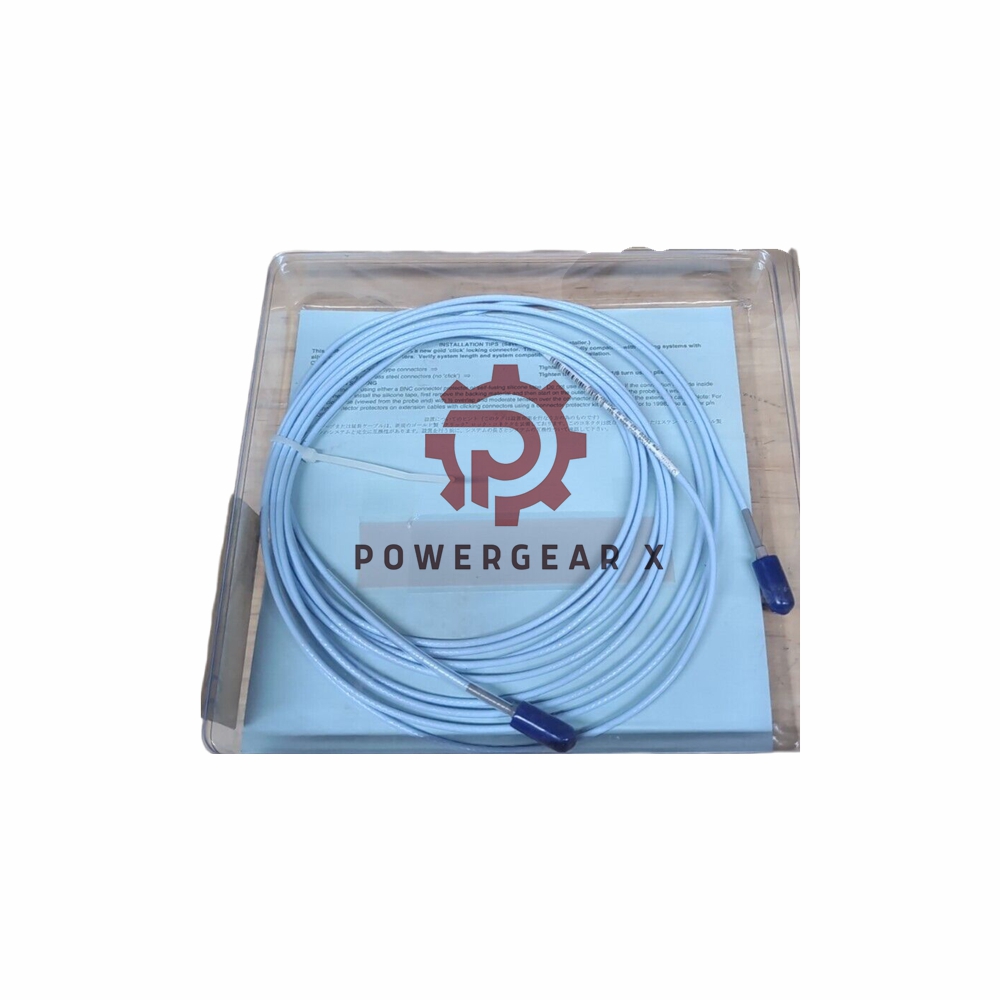

The Bently Nevada 330930-040-04-00 3300 NSv Extension Cable is a high-performance component designed for process compressor applications. Featuring compatibility with previous Bently Nevada 3300 RAM systems, this extension cable ensures exceptional durability and enhanced chemical resistance. The product comes in a stainless steel armored design with FEP jacket and ClickLoc connectors for secure connections.

Features

1. Compatibility: Fully interchangeable with 3300 RAM systems for ease of use.
2. Chemical Resistance: Enhanced materials allow use in challenging environments.
3. Robust Design: Includes stainless steel armor and FEP jacket for superior durability.
4. Secure Connections: Gold-plated brass ClickLoc connectors with 220 N tensile strength.
5. Wide Operating Temperature: Functions reliably from -52°C to +177°C.
6. Connector Protectors: Prevent liquid ingress and maintain signal integrity.

Technical Specifications

• Brand: Bently Nevada
• Model: 330930 (3300 NSv Extension Cable)
• Suffix Breakdown:
  • 040: Cable length – 4.0 meters (13.1 feet).
  • 04: Stainless steel armor with FEP jacket and connector protector.
  • 00: No agency approval required.
• Material: 75 Ω coaxial cable, fluoroethylene propylene (FEP) insulated.
• Tensile Strength: Rated at 220 N (50 lb) for probe lead and connectors.
• Armor: AISI 302 SST with optional FEP outer jacket.
• Temperature Range: -52°C to +177°C (-62°F to +351°F).
• Connector Material: Gold-plated brass.
• System Length: 5 or 7 meters including extension cable.

Applications

• Ideal for process compressors in chemical and industrial environments.
• Suitable for operations requiring high chemical resistance and reliable connections.
• Recommended for use with Bently Nevada Proximitor Sensors for vibration monitoring systems.

FAQ

Q1: What are the main benefits of using the 3300 NSv Extension Cable?
A: Its durability, chemical resistance, and secure ClickLoc connections make it ideal for challenging industrial environments.

Q2: Can this extension cable be used with older systems?
A: Yes, it is compatible with Bently Nevada’s previous 3300 RAM systems.

Q3: What does the “04” in the model number signify?
A: It indicates the cable is armored with stainless steel and FEP jacket, and includes connector protectors.

Q4: Are connector protectors included?
A: Yes, they are included to prevent liquid ingress and ensure signal reliability.

Q5: What is the maximum length of the system?
A: The total system length can be 5 or 7 meters, including the extension cable.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
