Bently Nevada | 330930-060-00-00 3300 NSv Extension Cable

Overview:

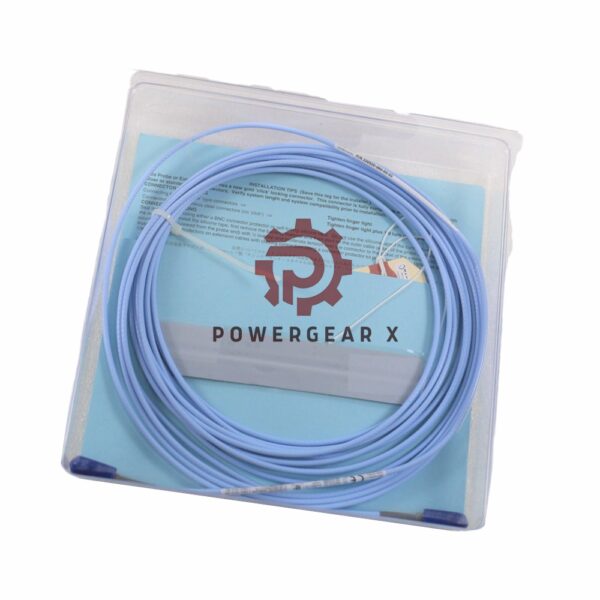

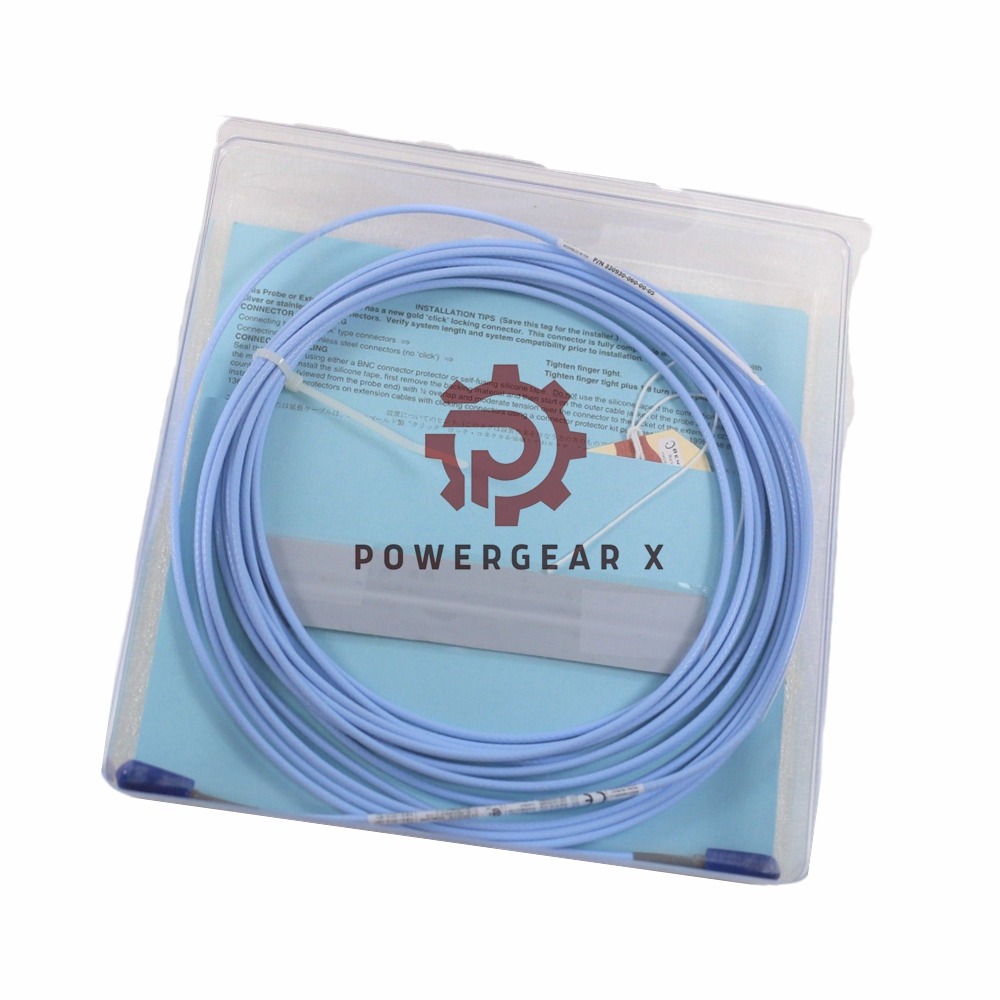

The Bently Nevada 330930-060-00-00 is a 6.0-meter (19.7 feet) 3300 NSv Standard Extension Cable. It is part of the 3300 XL NSv Proximity Transducer System, designed for use with the 3300 NSv Proximity Probe and Proximitor Sensor. This extension cable ensures reliable performance in a variety of industrial applications, such as centrifugal air compressors, refrigeration compressors, and process gas compressors. The cable is available in multiple lengths and features flexible, high-quality construction to meet demanding installation requirements.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330930-060-00-00
• Extension Cable Length: 6.0 meters (19.7 feet)
• Cable Material: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
• Connector Material: Gold-plated brass
• Tensile Strength: 220 N (50 lb) at probe case to probe lead, probe lead to extension cable connectors, and probe case to stainless steel armor
• Operating Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Armor Option: Flexible AISI 302 SST with or without FEP outer jacket
• System Length Options: 5 or 7 meters, including extension cable

Applications:

The 3300 NSv Transducer System is ideal for applications where traditional 3300 and 3300 XL Transducer Systems cannot be used, particularly in environments with tight space constraints. It is widely used for:

• Radial vibration measurements on small shafts (<51 mm or 2 inches)
• Axial position monitoring on flat targets (<15 mm or 0.6 inches)
• Monitoring of fluid-film bearings, compressors, turbines, and other critical machinery
• Keyphasor (phase reference) measurements

FAQ:

1. What is the maximum cable length?
   • The maximum extension cable length is 6.0 meters (19.7 feet), with additional options available for specific installations.
2. Can this extension cable be used with 3300 RAM probes?
   • Yes, it is compatible with 3300 RAM probes as well as other Bently Nevada probes, providing improved chemical resistance.
3. What type of connector does this cable use?
   • The cable uses ClickLoc connectors made of gold-plated brass for secure, reliable connections.
4. What is the operating temperature range?
   • The cable operates within a wide temperature range of -52°C to +177°C (-62°F to +351°F), making it suitable for harsh industrial environments.
5. Is the cable available with armor?
   • Yes, it can be equipped with optional flexible AISI 302 stainless steel armor for enhanced protection.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
