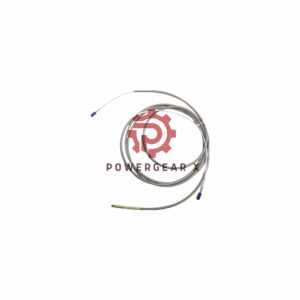

Bently Nevada | 330930-060-02-00 3300 NSv Extension Cable

Overview

The Bently Nevada 3300 XL Standard Extension Cable (Part Number: 330930-060-02-00) is a robust, high-performance solution designed for demanding industrial environments. It offers seamless compatibility with the 3300 NSv probe and other Bently Nevada systems, ensuring precision in vibration monitoring and process compressor applications.

Features

• Durable Construction: Stainless steel armor provides excellent tensile strength and mechanical protection.
• Advanced Connector Design: Gold-plated brass ClickLoc connectors prevent loosening and ensure secure connections.
• Superior Chemical Resistance: Enhanced FEP insulation protects against corrosive environments.
• Flexible Options: Available in multiple lengths and configurations to meet various industrial needs.
• Patented Technologies: TipLoc and CableLoc designs enhance durability and ensure a reliable bond.

Technical Specifications

• Brand: Bently Nevada
• Model: 330930-060-02-00 3300 XL Standard Extension Cable
• Part Number Breakdown:
  • 330930: Model identifier
  • 060: Cable length (6.0 meters / 19.7 feet)
  • 02: Stainless steel armor without FEP jacket
  • 00: No agency approval required
• Cable Material: 75 Ω coaxial, FEP-insulated
• Armor: Flexible AISI 302 stainless steel with optional FEP jacket
• Tensile Strength: 220 N (50 lb) at critical connection points
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Connector Material: Gold-plated brass

Applications

The 3300 XL Extension Cable is ideal for applications requiring high reliability in vibration and displacement measurements, including:

• Process compressors
• Rotating machinery in chemical plants
• Industrial turbines
• General-purpose machinery monitoring

FAQ

1. What is the system length for the 3300 XL?
   The system length, including the extension cable, is available in 5 or 7 meters.
2. Why is the stainless steel armor important?
   It provides enhanced mechanical protection and ensures durability in harsh environments.
3. Can this cable be used with older Bently Nevada systems?
   Yes, the 3300 XL is compatible with the 3300 RAM proximity probes and other legacy systems.
4. What are ClickLoc connectors?
   ClickLoc connectors lock securely into place to prevent loosening and ensure a stable connection.
5. What does FEP insulation offer?
   FEP provides excellent chemical resistance and electrical insulation, making the cable suitable for corrosive environments.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
