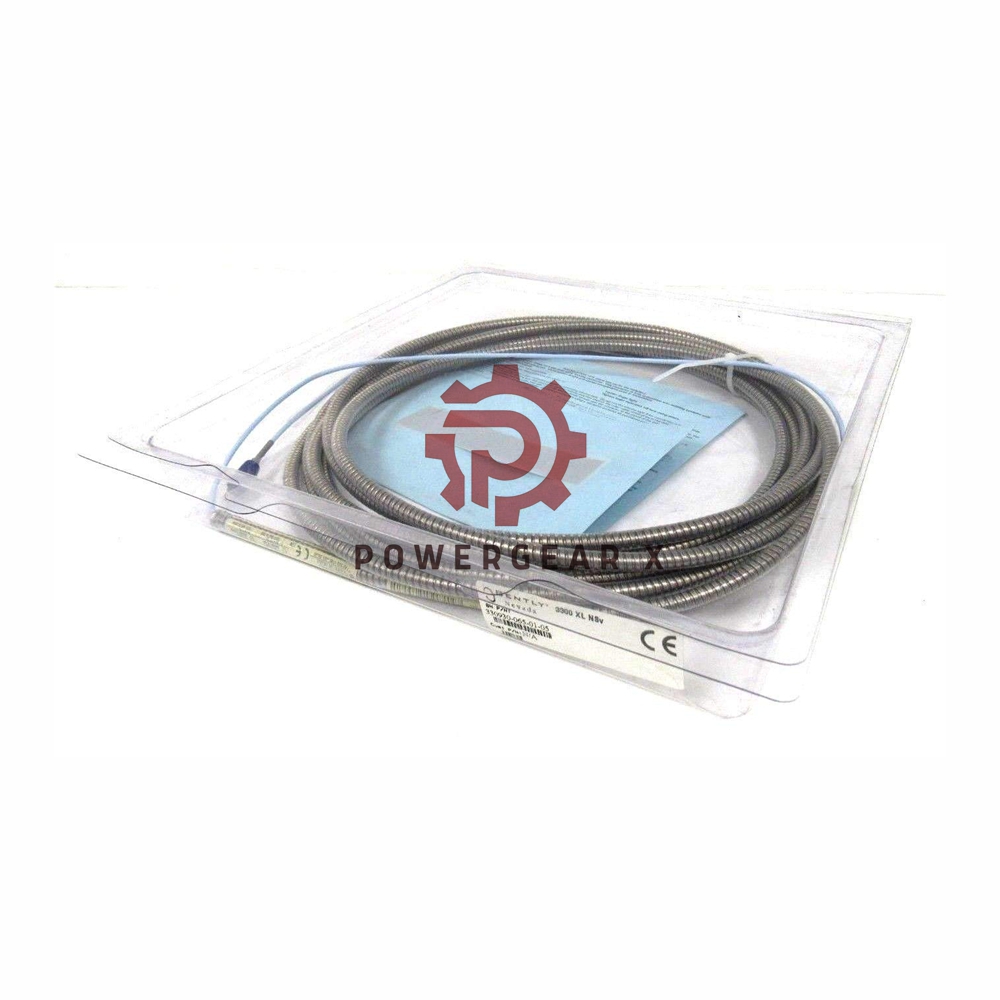

Bently Nevada 330930-065-00-CN | 3300 NSv Extension Cable

Overview:

The Bently Nevada 3300 NSv Extension Cable (Part No. 330930-065-00-CN) is designed to be mechanically and electrically compatible with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The 6.5-meter cable is specifically constructed with 75 Ω coaxial material and fluoroethylene propylene (FEP) insulation, offering enhanced chemical resistance for use in demanding industrial environments such as compressor applications.

Key Features:

• Compatibility: Interchangeable with the 3300 RAM proximity probe and extension cable.
• Cable Length: 6.5 meters (21.3 feet).
• Material: 75 Ω coaxial, FEP insulated.
• Connector Type: Gold-plated brass ClickLoc connectors, ensuring secure connections.
• Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Approval Option: Country-specific approvals (CN).
• Armor Option: Available with or without stainless steel armor for added durability.
• Tensile Strength: Rated at 220 N (50 lb) for both cable-to-probe and cable-to-sensor connections.
• Made in the U.S.A. with optional Certificate of Origin (COO).

Technical Specifications:

• Brand: Bently Nevada
• Model: 330930-065-00-CN
• Connector and Cable Option: 00 = Without stainless steel armor
• Extension Cable Material: 75 Ω coaxial, FEP insulated.
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Cable Length: 6.5 meters (21.3 feet)
• Approval Option: CN (Country-specific approvals)
• Connector Material: Gold-plated brass

FAQ:

1. What is the cable length option for this extension cable?
2. The 330930-065-00-CN model is 6.5 meters (21.3 feet) long.
3. Can the extension cable be used with older Bently Nevada probes?
4. Yes, it is compatible with the previous 3300 RAM probes and extension cables.
5. Does the extension cable come with a certificate of origin?
6. Yes, a Certificate of Origin (COO) can be provided upon request.
7. What is the tensile strength of the cable?
8. The tensile strength is 220 N (50 lb) for probe case to probe lead and probe lead to extension cable connectors.
9. What are the temperature limits for this extension cable?
10. It operates in temperatures ranging from -51°C to +177°C (-60°F to +351°F).

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
